CH 5/ Start Menu
Modify Trigger Parameters and Intervals
Advanced setups
The Modify Trigger Parameters and Intervals screen allows users to turn on/off any
available parameters and threshold limits. Advanced Setup provides users wider
control over all setup functions.
Refer to Chapter 6 Advanced Setup Options for a detailed discussion on modifying
trigger parameters and intervals.

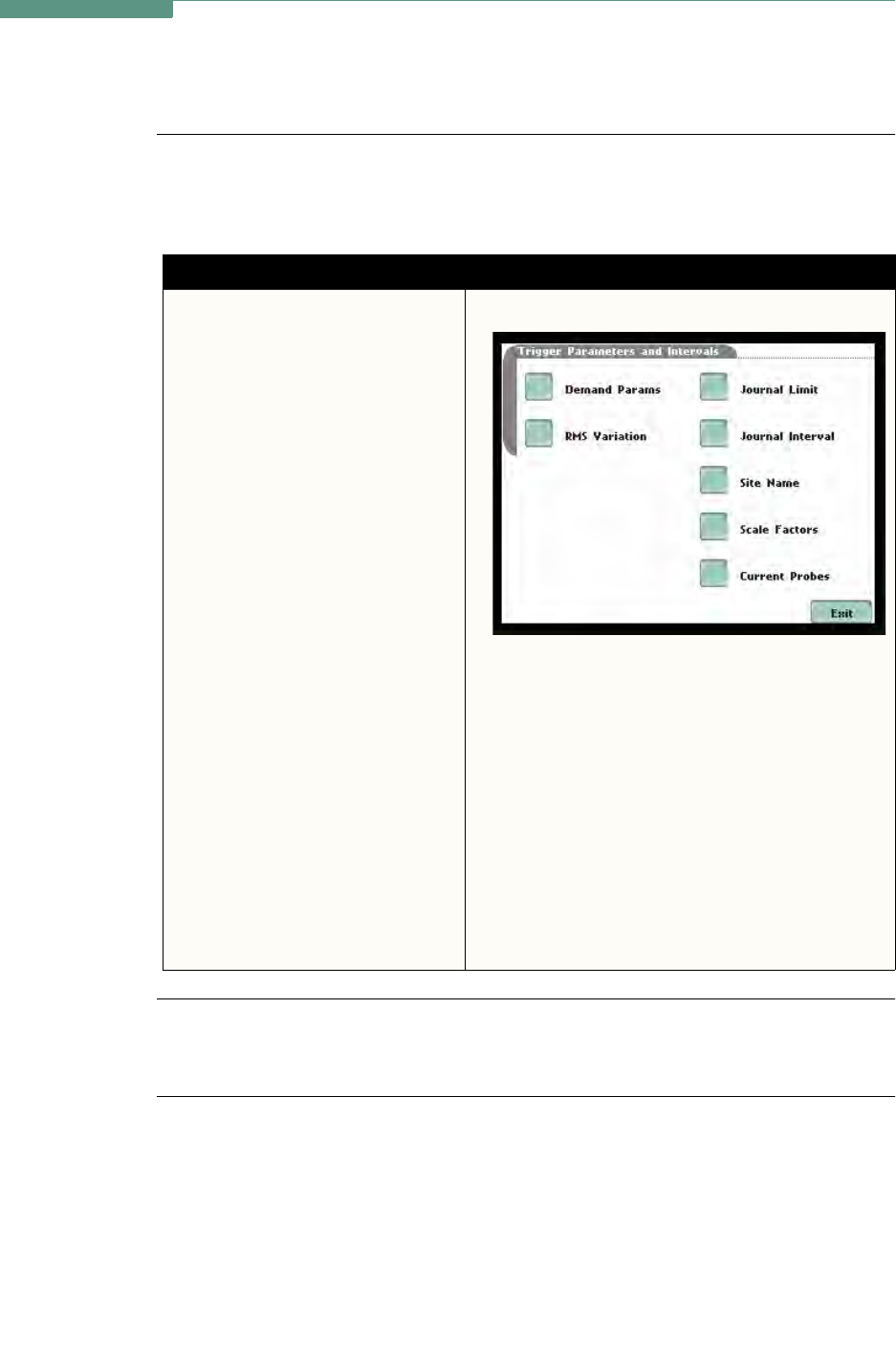

Action... Result...
STEP 1: From the Monitoring
Menu screen, press Modify
Trigger Parameters and Intervals.
• Press the parameter whose
default threshold settings you
want to review and/or enable/
disable. Go to Chapter 6
Advanced Setup Options.
Press Site Name to set new
filename prior to data
monitoring. The onscreen
keyboard will appear (see page
5-22 for instructions on how to
use the keyboard).
•Press Scale Factors to enter
new scale factor values for
Volts/Amps channels. The
Scale Factor Setup screen will
appear (see page 5-11 for
instructions on how to enter a
new scale factor value).
•Press Exit to quit and return to
Monitoring Menu.
EP136
