5-27
CH 5/ Start Menu
Start/Stop
monitoring
(continued)
Action... Result...

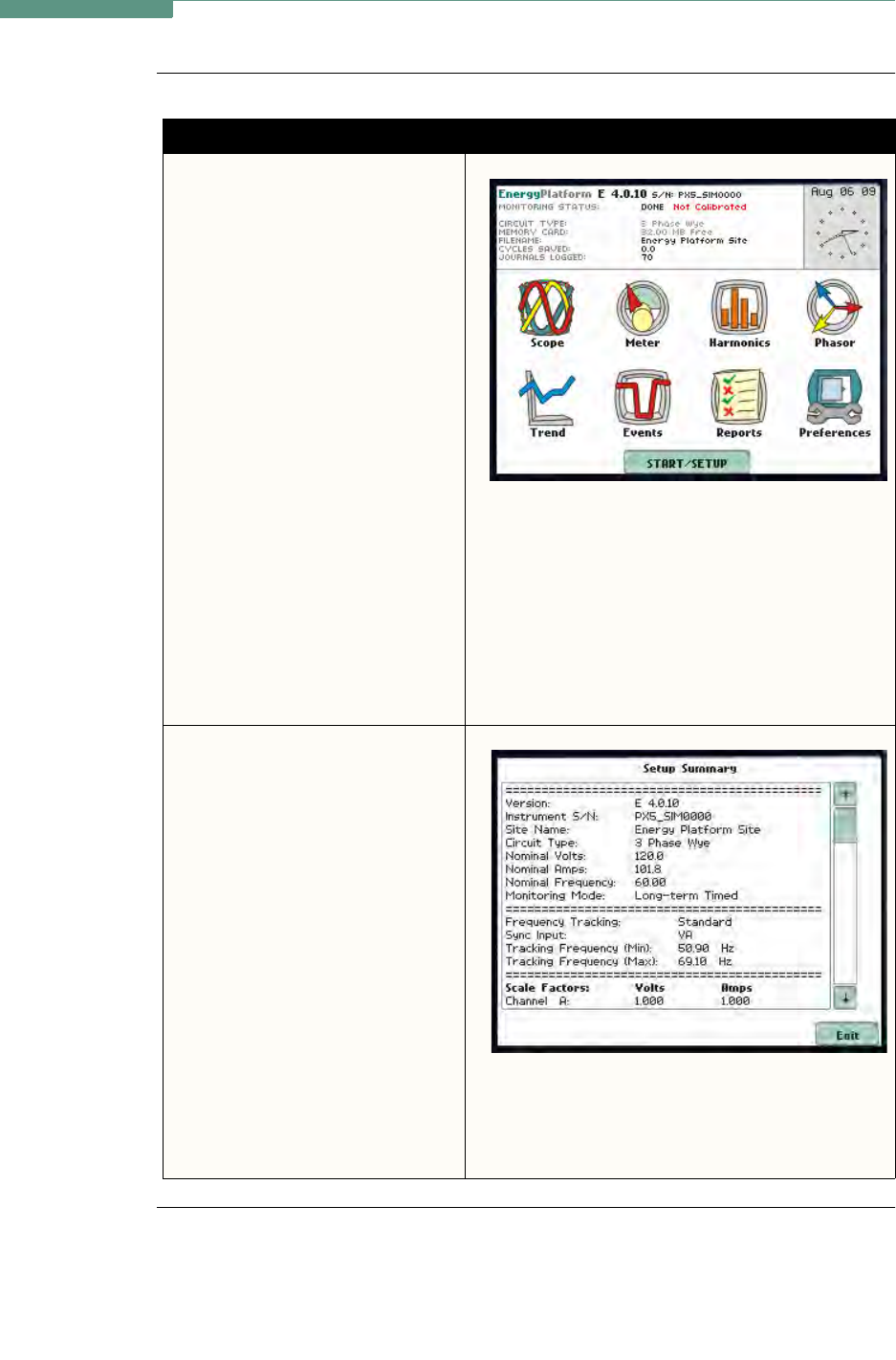

STEP 4: When monitoring ends,
the message MONITORING
STATUS: DONE appears on
screen (see NOTES).
• To capture a new set of data or
to edit threshold settings, press
Start. The Start Menu screen
will be displayed. Go to page
5-2.
• To view recorded data, press
Trend, Events, or Reports. Go
to Chapter 7 View Event Data.
EP124
NOTE 1: The message MONITORING
STATUS: DONE appears to indicate that
monitoring is completed and active recording is
disabled.
NOTE 2: The Events button will display an event
data record if periodic measurements at regular
intervals are available or if thresholds have been
crossed. See Chapter 7 View Event Data.
STEP 5: Press View present setup
to dislay the parameter settings in
effect. Setup summary is
available for review before,
during, and after monitoring.
•Press Up/Down arrow keys to
scroll the page up or down by
one line.
• Press and drag the scroll bar to
move the page up or down.
• When done reviewing the
Setup Summary, press Exit.
The screen will return to the
Stop Monitoring Menu options
on page 5-26.
EP123c
