GDS8 Service Manual

PRODUCT IDENTIFICATION
5

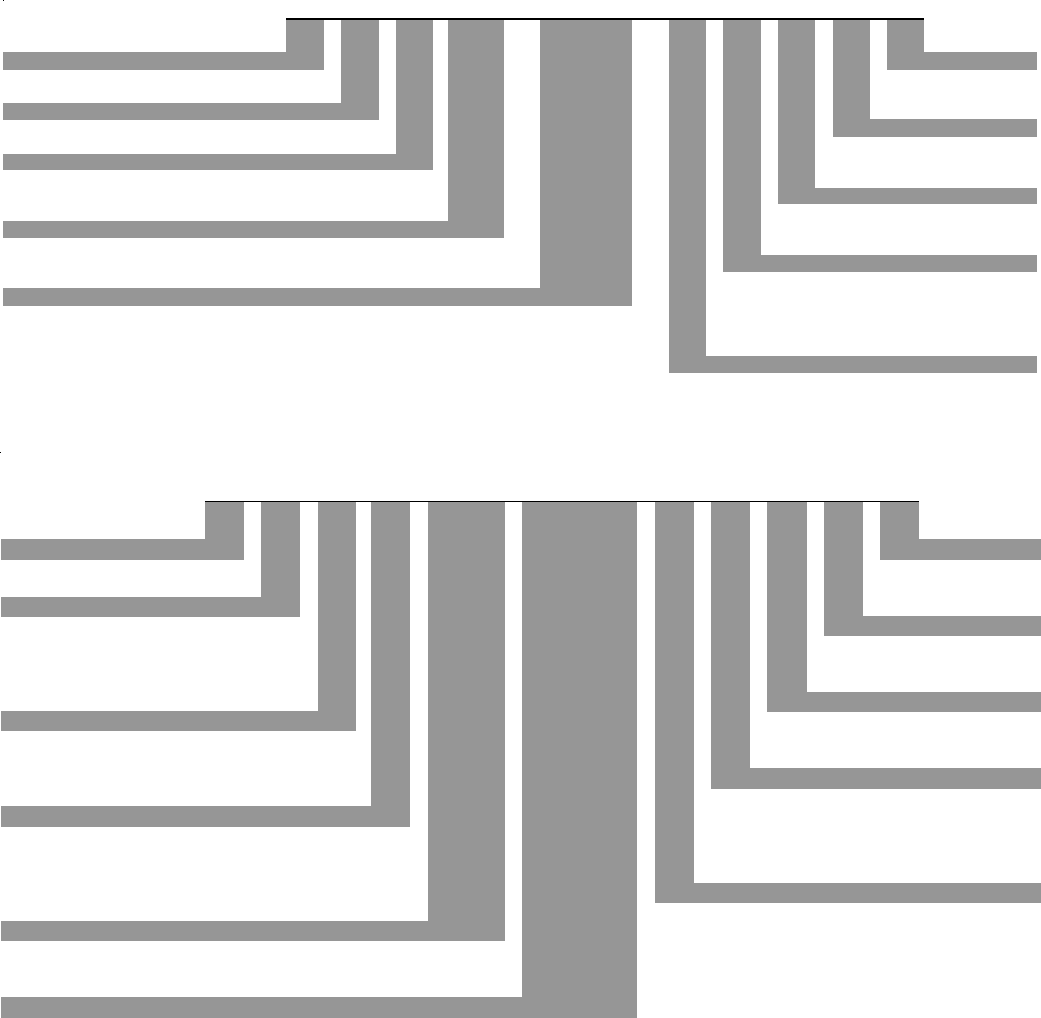

AMS 80 060 3 A N A A
1 2 3 4 5 6 7 8 9 10 11 12 13
Brand Mi nor Revision
A- Amana A - Initia l Release
B - 1st Revisi on
Configuration
M - Upfl ow/ H or i zon t al Ma jor Revision
A - Initia l Release
Gas Vale / Motor B - 1st Revisi on
H - Convertible 2 Stage / Single Speed
S - Single Stage / Single Speed Nox
N - Natural Gas
AFUE X - Low NOx
97 - 97% AFUE
80 - 80% AFUE Cabinet Width
A - 14"
MBTU/
h
B - 17.5"
40 - 40,000 C - 21"
60 - 60,000 D - 24.5"
80 - 80,000
10 0 - 100 ,00 0 Maximum CFM
12 0 - 120 ,00 0 3 - 1200 CFM
14 0 - 140 ,00 0 4 - 1600 CFM
5 - 2000 CFM
The model and manufacturing number are used for positive identification of component parts used in manufacturing.
Please use these numbers when requesting service or parts information.
A D S S 80 060 3 B N A A
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Brand Minor Re vision
A- Amana A - Initial Release
B - 1st Revision
Configuration
M - Upflow/Horizontal Major Revi sion
C - Downflow/Horizontal A - Initial Release
K - Dedicated Upflow B - 1st Revision
D - Dedicated Downflow
Nox
Motor N - Natural Gas
V - Variable Speed/ComfortNet X - Low NOx
E - High Efficiency
S - Single Speed Cabinet Width
A - 14"
Gas Valve B - 17.5"
M - Modulating C - 21"
C - 2 Stage D - 24.5"
H - Convertible 2 Stage
S - Single Stage Maximum CFM
3 - 1200 CFM
AFUE 4 - 1600 CFM
97 - 97% AFUE 5 - 2000 CFM
80 - 80% AFUE
MBTU/h
40 - 40,000
60 - 60,000
80 - 80,000
100 - 100,000
120 - 120,000
140 - 140,000
Amana Furnace Nomenclature (14 Digits)
