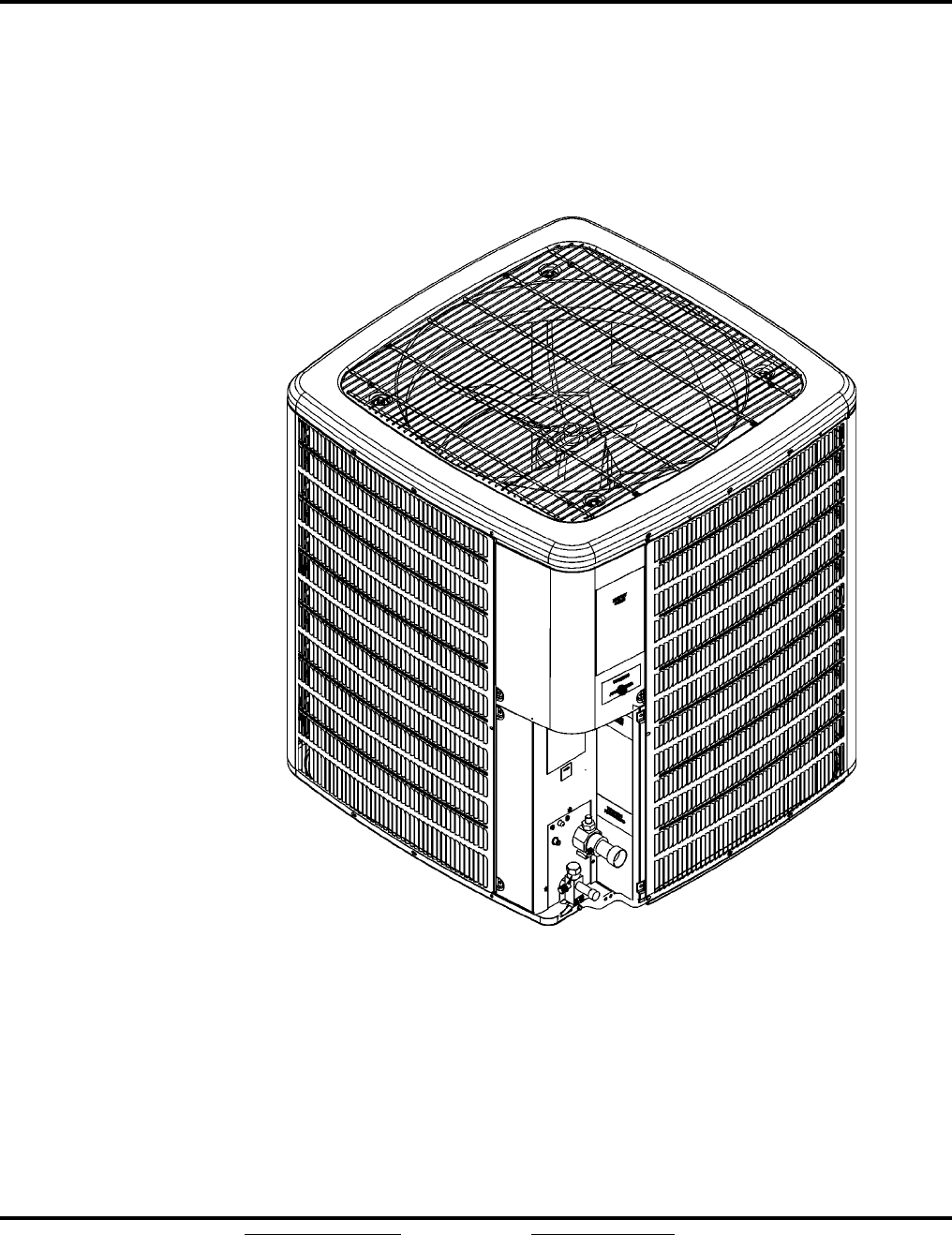

REPAIR PARTS GSZ11 Remote Heat Pumps GSZ110903AA GSZ110903AB GSZ110904AA GSZ110904AB GSZ111203AA GSZ111203AB GSZ111204AA GSZ111204AB This manual is to be used by qualified technicians only. This manual replaces RP-636. © 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 RP-636A www.goodmanmfg.com www.amana-hac.
Important Information Index Functional Parts List ................................................................................................... 3 Illustration and Parts ................................................................................................... 4-9 Views shown are for parts illustrations only, not servicing procedures.
Functional Parts Part No: Description: B1282574 1 1/8" SERVICE VALVE 0130M00025S 24V RELAY B1282573 5/8” SERVICE VALVE CAP200000440RPS CAPACITOR 20/370V ZP103KCETF5855 COMP, 105,000, 200/230/60/3 (M5, M6) ZP103KCETFD855 COMP, 105000, 460/60/3 (M7, M8) ZP83KCETF5830 COMP, 83000, 200/230/60/3 (M1, M2) ZP83KCETFD830 COMP, 83000, 460/60/3 (M3, M4) 0131M00040S COND MOTOR 1 HP, 1 SP, 230V (M1, M2, M5, M6) 0131M00041S COND MOTOR 1 HP, 1 SP, 460V (M3, M4, M7, M8) CONT3P040024VS CONTACTOR 40 AMP
Control Cover / Control Box 4 www.goodmanmfg.com www.amana-hac.
Control Cover / Control Box Ref. Part No: No: Ref.
Compressor / Tubing Assembly 6 www.goodmanmfg.com www.amana-hac.
Compressor / Tubing Assembly Ref. Part No: No: Ref.
Coil / Cabinet Top / Side Panels 8 www.goodmanmfg.com www.amana-hac.
Coil / Cabinet Top / Side Panels Ref. Part No: No: Ref.
