User Manual

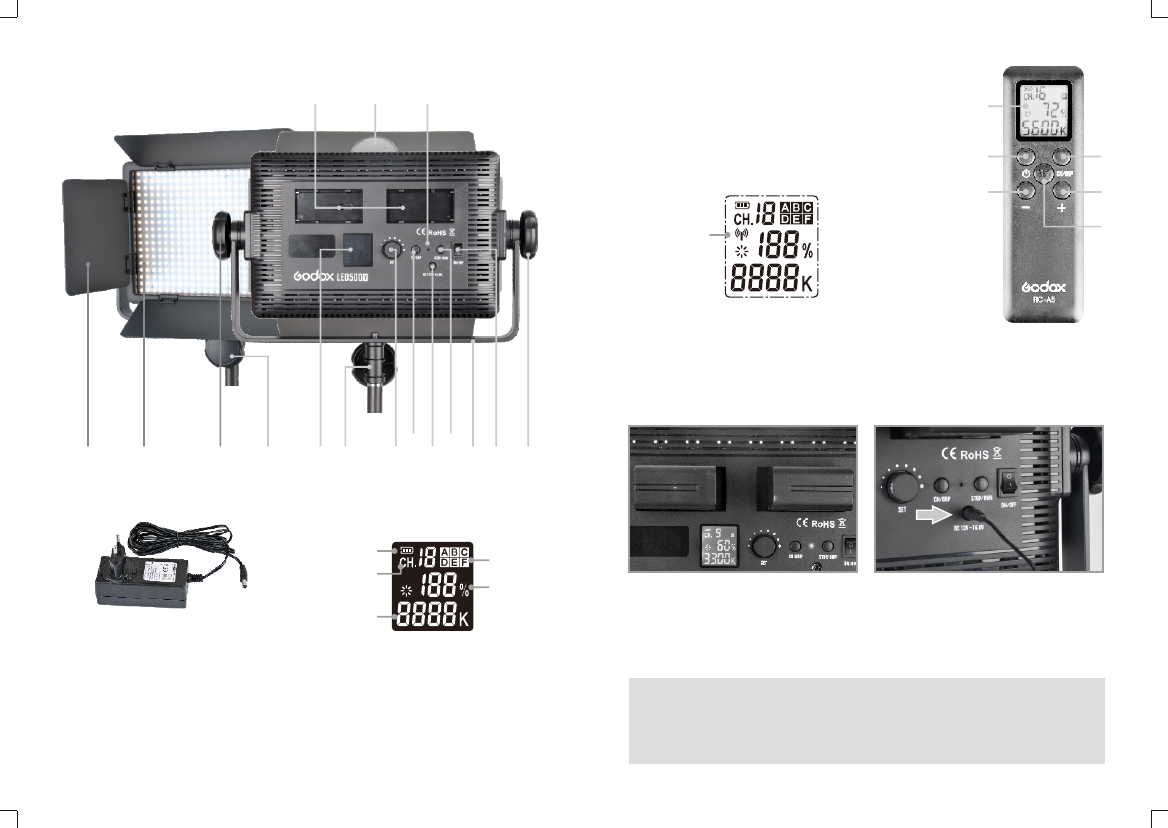

Parts
01. 504 LED Beads
02. Color Filters
03. Reflector
04. ON/OFF Power Switch
05. STOP/RUN Button
06. Select Dial + SET Button
07. CH/GRP Button
08. DC Power Jack
09. Lithium Battery
Compartment
10. Power Indicator
11. LCD Panel (White in Blue)
12. Knob A
13. Knob B
14. Knob C
15. Bracket
16. Bracket Mounting Hole
17. Power Adapter
17
Battery
Level Indicator
Channel (16)
Controllable
Group (6)
Light
Brightness
Color
Temperature
LCD Panel
01
02 03
06
04
05
Wireless Signal
Remote Control:
01. LCD Panel (Black in
White)
02. Power Switch
03. CH/GRP Button
04. SET Button
05. "-" Button
06. "+" Button
07. Battery Compartment
08. Battery Compartment
Cover
Power Management
1. Power Supply
Two power supply modes are available:
● Using lithium battery: Put two SONY
BP-L model lithium batteries
(purchased separately) into the battery
compartment separately.
Note:
● When using lithium battery, the Battery Level Indicator is displayed on the LCD
panel. When the indicator blinks, the lithium battery power is low. Please recharge it
immediately before usage in order to avoid forceful auto off.
● Using DC power jack: This light can be
powered by DC power supply. Use a
13~16.8V adapter (included) to
connect the light with the DC power
jack (08).
02
01
0406 08
03
14 151112 13
07 05
10
16
09
