GP-PWM-30
________________________________________________________________________
21

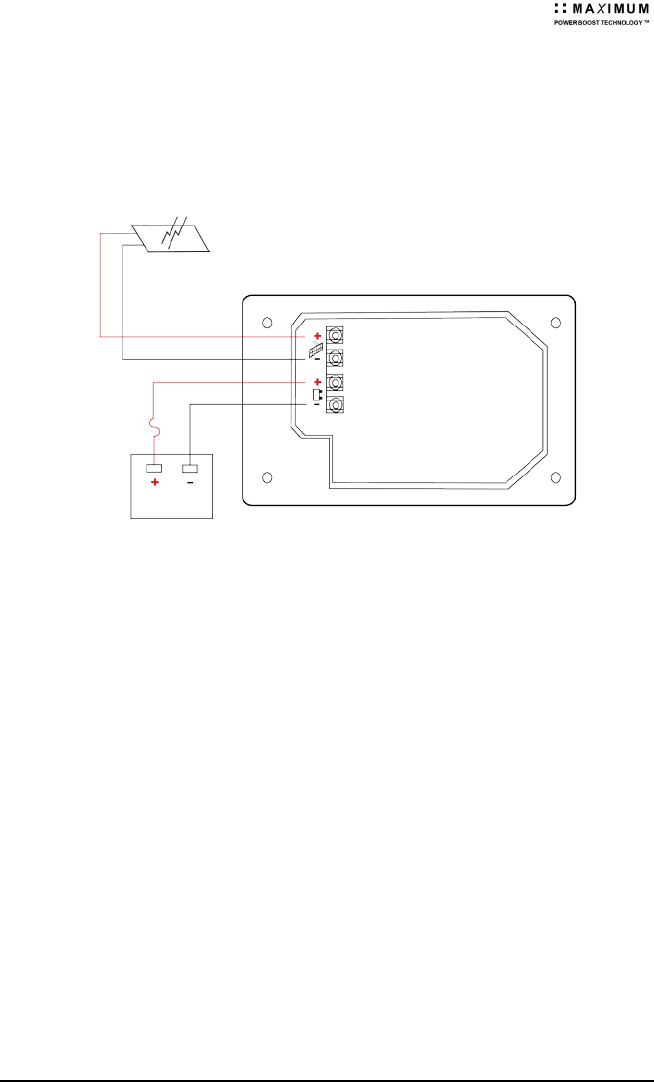

11.0 Wiring Diagram
Note: The fuse or breaker used
should be no larger than 30 amps
The GP-PWM-30 is based on a 30 amp max
input from the solar modules.
E.G. Three modules in parallel with an input of
7 amps each equal a total input of 21 amps.
Most solar modules list the input amps on their
specifications label.
Battery Bank
Fuse
Battery Bank
Solar Array
Solar Panel +
Solar Panel –
Battery +
Battery -
