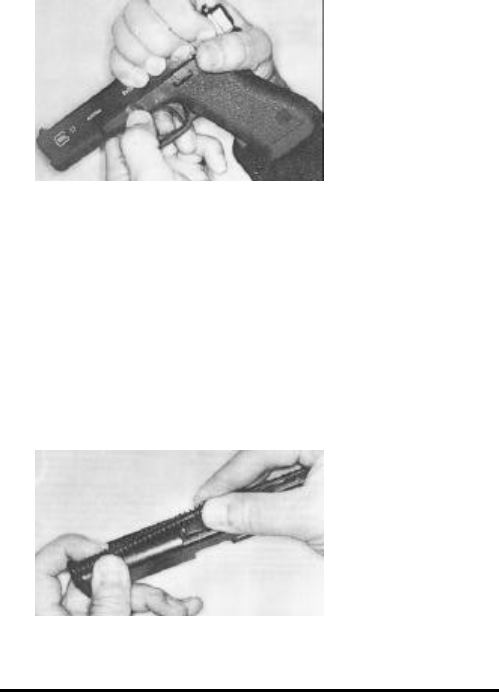

4. Removal of the slide (see photo) is carried out as follows:
– Grasp the pistol in the right or left hand in such a way that four fingers rest over the slide and
the thumb rests on the rear side of the receiver.
– Using the fingers draw back the slide (1) about 3mm
– Pull the slide lock (21)
– Push the slide forwards and separate it from the receiver.
If the slide is drawn back too far (more than 3mm), the trigger will move to the foremost forward
position. The slide will then not separate from the receiver (17). Do not use force. The trigger
must first be pulled all the way back.
5. Removal of the barrel (see photo) is carried out as follows:
– Push the recoil spring assembly (3) somewhat forwards with the thumb and raise it
– Take the recoil spring assembly out of the slide (see photo 4).
– Grasp the barrel on the barrel locking piece, push it slightly forwards, raise it and pull it
backwards out of the slide. Reassembling the GLOCK pistols is carried out in the reverse
order to the above.
SAFETY AND GUARANTEE INSTRUCTIONS
1. If the weapon is dismantled by the purchaser or by any third parties further than described in
this user’s instruction, and if, as a result of inappropriate handling or incomplete reassembly,
damage or malfunctions are caused, as a result of which the safety devices are rendered
ineffective, then the purchaser shall forfeit ant claim to guarantee against damages thereby
incurred to persons or property.
2. Any change to the basic construction of the weapon, in particular by the circumvention of the
safety devices, is strictly prohibited for safety reasons, and precludes the use of the weapon.
3. The following actions are not permitted on the weapon since they could lead to damage:
– With the weapon unloaded the trigger (26) shall not be manually brought into the foremost
position and actuated. The trigger shall only be brought into its foremost position by pushing
back the slide (approx. 15mm or more)
– Should, with the slide disassembled, the trigger (26) be inadvertently brought into its foremost
position, then the trigger shall be only actuated when, at the same time, the triggerbar is
pushed forward (in muzzle direction).
