5. Connections
The NFC 3V3 has the main connector (Picoblade Molex SMT - 53398-087) with reference J9
Pin
Function
Description
1 +3.3Vdc Power Supply
2 UART_TX Serial Data Out
3 UART_RX Serial Data In
4 NC RTS out
5 NC CTS in
6 NC Relè out
7 NC NC
8 GND Ground

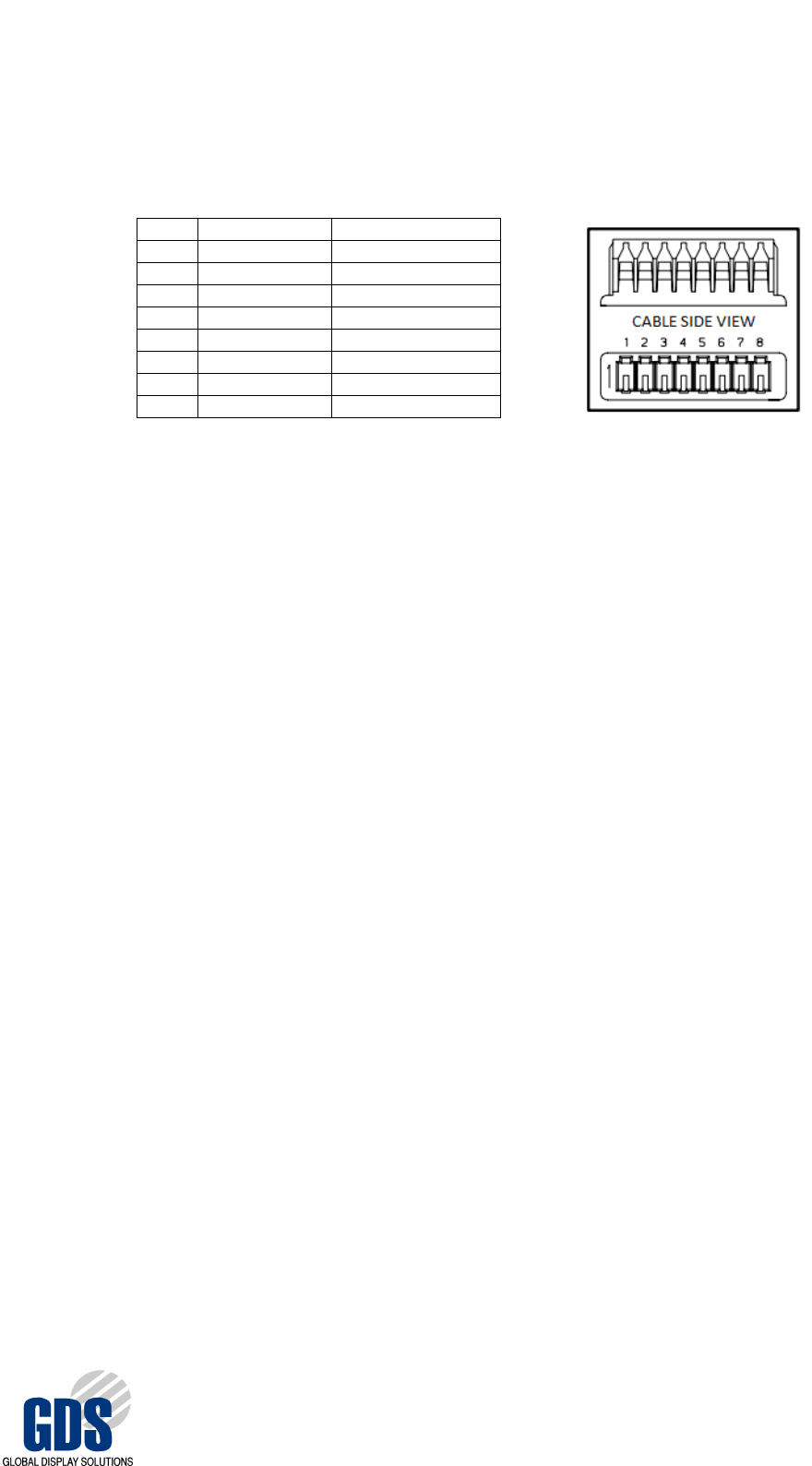

Figure 2 J9 connector details
The NFC 3V3 board is intended to be mounted as a peripheral device to a hostsystem (display NIC-SP
G0700004 - 0WR00874AA). The cable connection is supplied on the hostsystem.
6. Operating mode
The NFC 3V3 board operates with both user keys based on Mifare protocol (TGS Mifare and MyWellness key)
and NFC smartphones. The minimum reading distance with NFC devices must be at least 15 mm.
In the case of interaction with user key based on Mifare protocol, the board traces its operating states, based on
the use of fitness equipment by the athlete (eg, running a year) and through some parameters collected from
the user keys.
When the board reads a smartphone NFC, the data exchange between them is minimized, thanks to a NFC
application, installed in the smartphone (installed as prerequisite), which supports most of the data
management.
