User's Manual

BIOS Setup
- 52 -

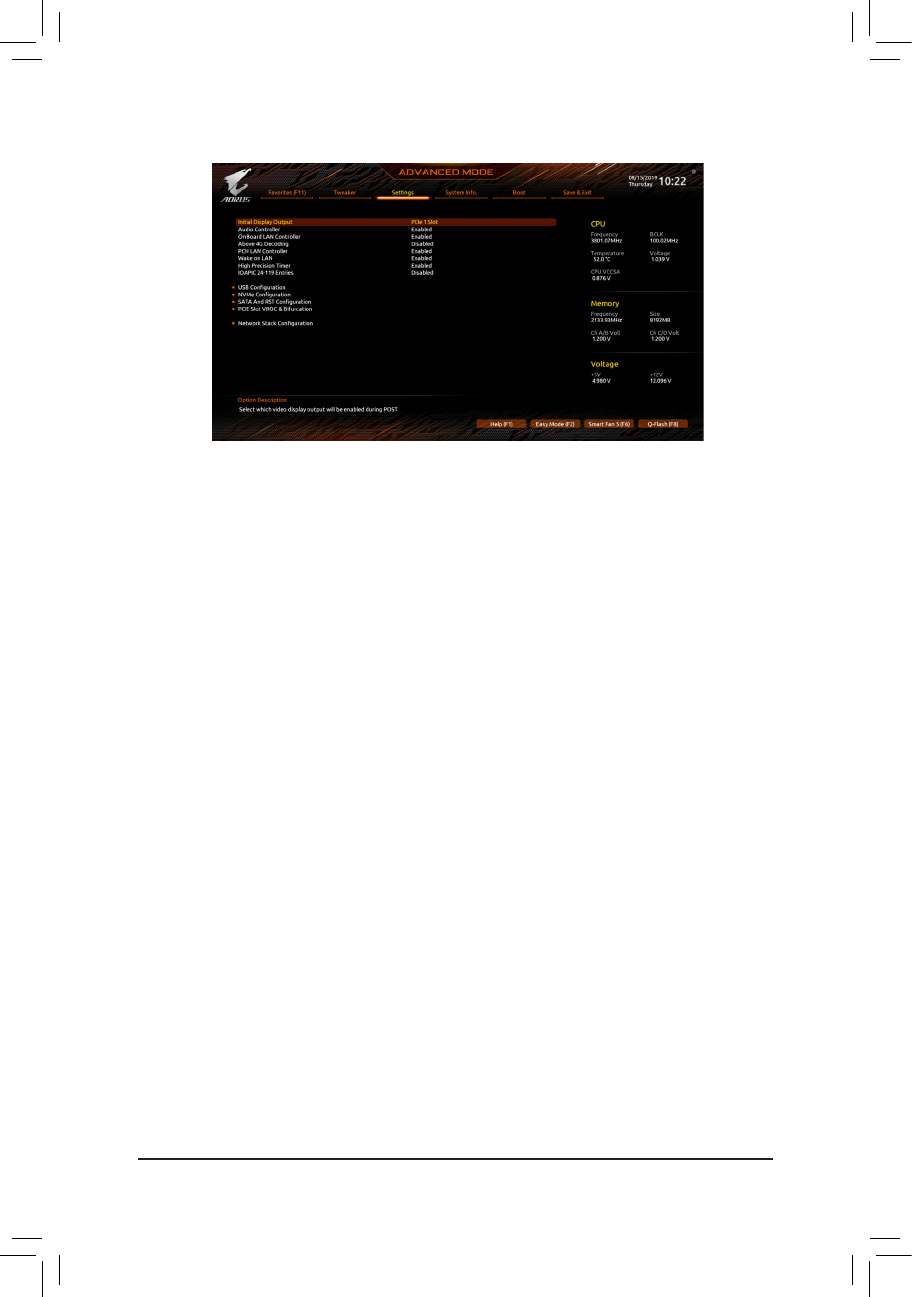

& Initial Display Output
 SpeciestherstinitiationofthemonitordisplayfromtheinstalledPCIExpressgraphicscard.
PCIe1Slot SetsthegraphicscardonthePCIEX16_1slotastherstdisplay.(Default)
PCIe2Slot SetsthegraphicscardonthePCIEX8_1slotastherstdisplay.
PCIe3Slot SetsthegraphicscardonthePCIEX16_2slotastherstdisplay.
PCIe4Slot SetsthegraphicscardonthePCIEX8_2slotastherstdisplay.
& Audio Controller
Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to
Disabled.
& Onboard LAN Controller (Aquantia 5GbE LAN Chip, LAN1)
Enables or disables the Aquantia 5GbE LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& Above 4G Decoding
Enables or disables 64-bit capable devices to be decoded in above 4 GB address space (only if your system
supports 64-bit PCI decoding). Set to Enabled if more than one advanced graphics card are installed and
their drivers are not able to be launched when entering the operating system (because of the limited 4 GB
memory address space). (Default: Disabled)
& PCH LAN Controller (Intel
®
GbE LAN Chip, LAN2)
Enables or disables the Intel
®
GbE LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& Wake on LAN Enable
Enables or disables the wake on LAN function. (Default: Enabled)
& High Precision Timer
Enables or disables High Precision Event Timer (HPET) in the operating system. (Default: Enabled)
& IOAPIC 24-119 Entries
Enables or disables this function. (Default: Disabled)
 IO Ports
