User Manual

- 4 -

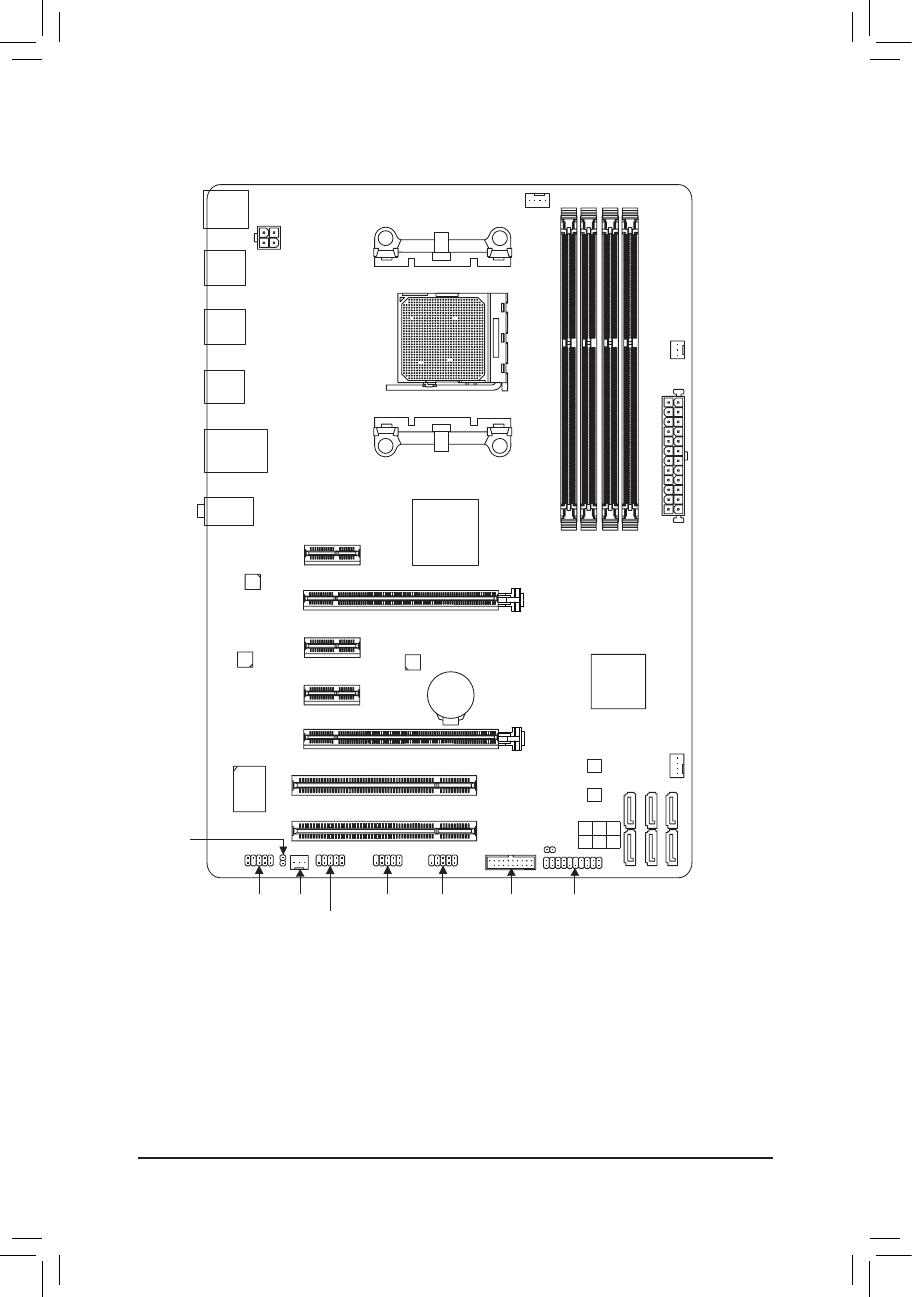

GA-970A-DS3P Motherboard Layout
(Note) Due to a hardware limitation, the PCIEX1_1 slot can only accommodate a shorter PCI Express x1 expansion card.
For a longer expansion card, use other expansion slots.
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
Box Contents
5 GA-970A-DS3P motherboard
5 Motherboard driver disk 5 Two SATA cables
5 User's Manual 5 I/O Shield
KB_MS
CPU_FAN
Socket AM3+
ATX
GA-970A-DS3P
F_AUDIO
AUDIO
PCIEX4
DDR3_4 DDR3_3 DDR3_2 DDR3_1
BAT
F_PANELF_USB30F_USB2
F_USB3
SYS_FAN2
SPDIF_O
ATX_12V
AMD 970
AMD SB950
SATA3
0 2 4
1 3 5
PCI1
PCI2
R_USB2
R_USB1
R_USB30
CODEC
PWR_FAN
SYS_FAN1
PCIEX1_2
PCIEX1_1
(Note)
USB_LAN
PCIEX16
PCIEX1_3
F_USB1
M_BIOS
B_BIOS
CLR_CMOS
Realtek
®
GbE LAN
VIA
®
VL805
iTE
®
Super I/O
