3-1-2-3. Use WPA-PSK Security (WPA Pre-Shared Keys):
When you select this item, the target 802.11 device must has the same encryption keys
and be configured to use encryption in order to communicate with each other. To configure
your WPA-PSK encryption, please click “Authentication “then the following window will
pop up (see Figure 3-5).

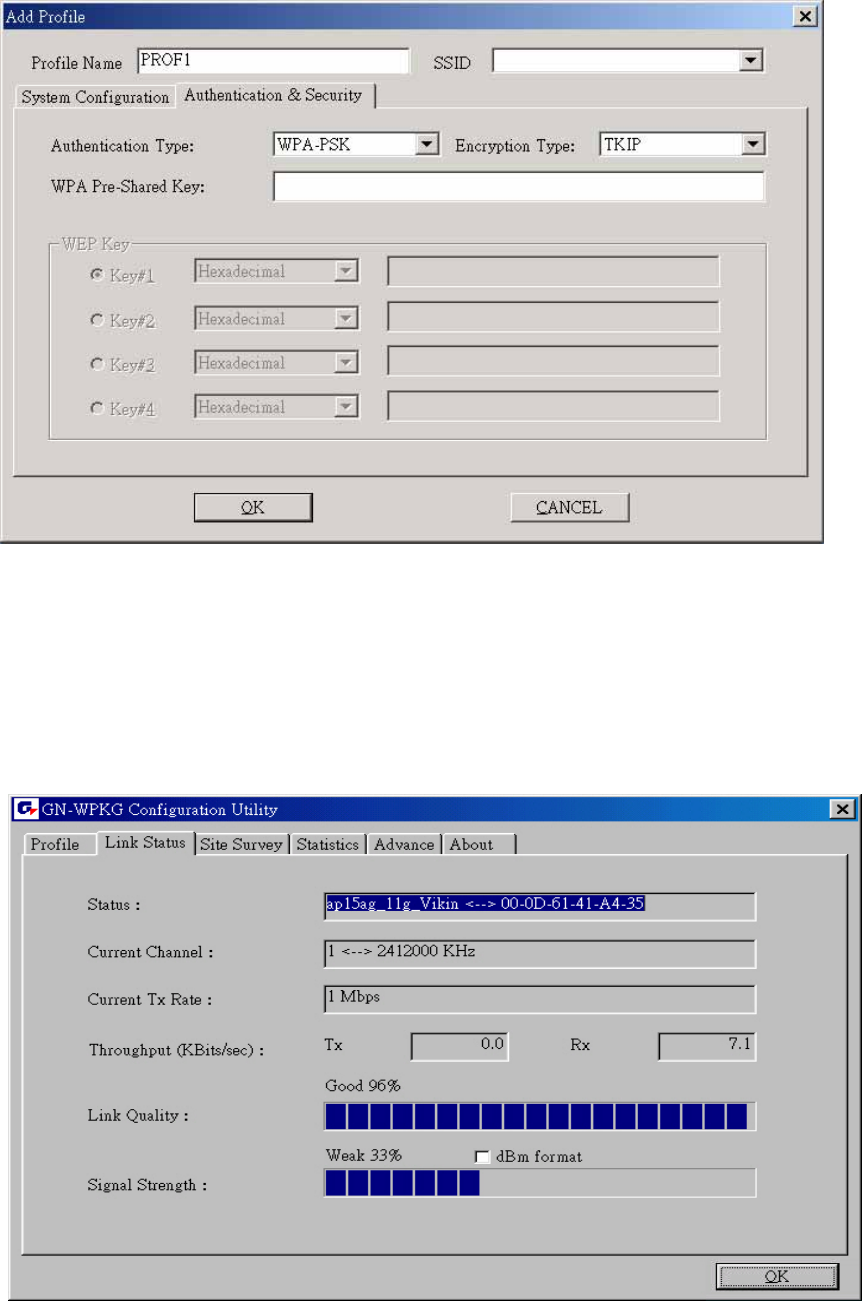

Figure 3-5. Configure WPA-PSK Key
3-2. Link Status
The “Link Status” tab shows you the current association information about the card’s
connection with a wireless network. In the middle of the screen, you can see Link Quality
and Signal Strength for this card (see Figure 3-6).
Figure 3-6. Current link status of the wireless LAN card
