1.11.1 It need select one TAG operation at Multi-TAG. It need use the T
Command to select specific TAG.

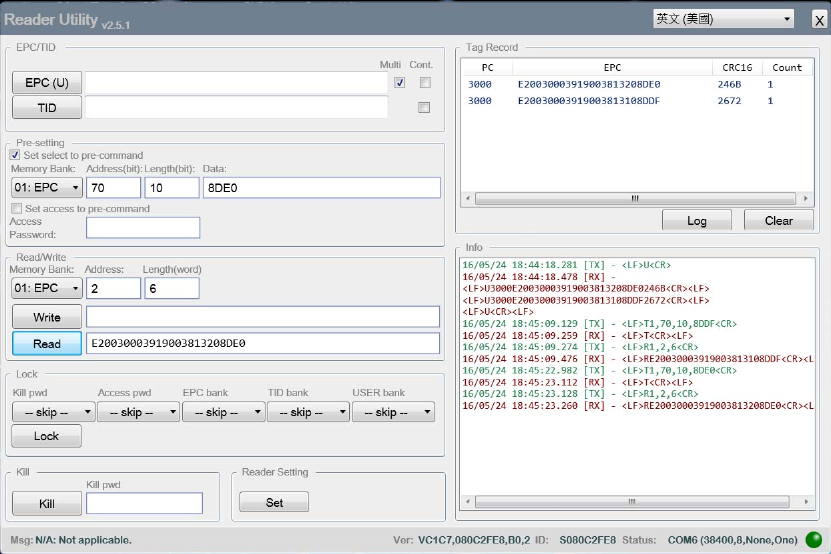

1.11.2 Check the box【Multi】first and check the box【EPC(U)】
1.11.3 It show the Multi-TAG data at Top right of the window
1.11.4 At Pre-setting item
1.11.4.1 Check the box【Set select to pre-command】
1.11.4.2 Select【01:EPC】at Memory Bank
1.11.4.3 Enter number(70) at Address(bit) *Warning : Address unit is
bit, the value is HEX. So HEX(7*16)=HEX(112)=70 hex
1.11.4.4 Enter number (10) at Length(bit) * Warning : Length unit is
bit, the value is HEX. So HEX(1*16)=HEX(16)=10 hex
1.11.4.5 Enter last four numbers of EPC at Data item. For example. The
number is 8DE0 or 8DDF.
1.11.5 At Read/Write item
1.11.5.1 Select【01:EPC】at Memory Bank
1.11.5.2 Check the box【Read】. We can get the EPC data by selected TAG
1.11.6 It shows the command process in Info windows at lower right corner.
