PR533_SDS All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved.
Product short data sheet
COMPANY PUBLIC
Rev. 3.6 — 27 October 2014
206436 5 of 36
NXP Semiconductors
PR533
USB NFC integrated reader solution
6. Pinning information
6.1 Pinning
6.2 Pin description

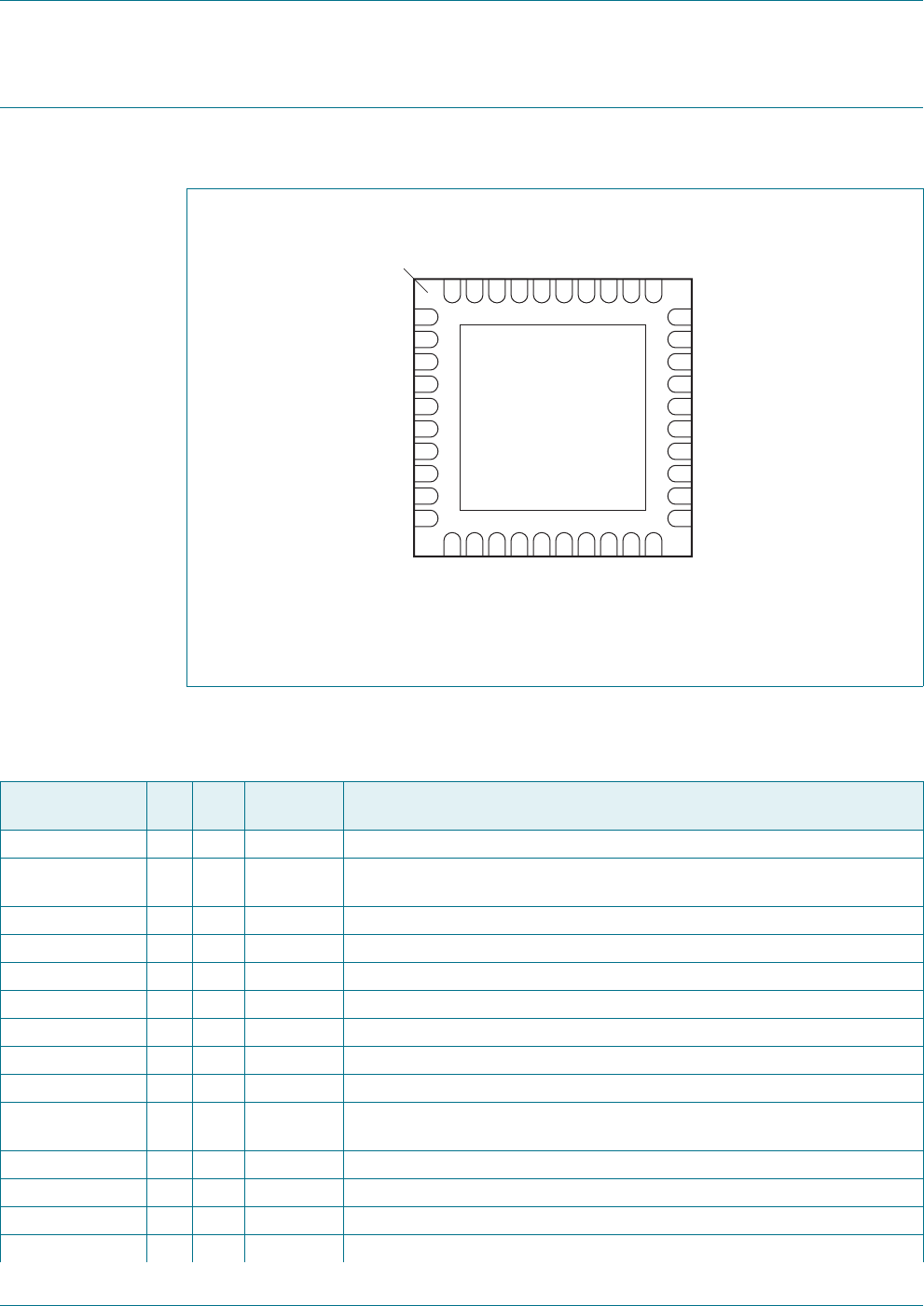

Fig 2. Pin configuration for HVQFN 40 (SOT618-1)
aaa-000044
PR533
P70_IRQ
VMID
RX
RSTOUT_N
AVDD DVSS
TVSS2 DM
TX2 DP
TVDD PVDD
TX1 DELATT
TVSS1 P30
LOADMOD P31
DVSS P32_INT0
AVSS
AUX1
AUX2
DVSS
OSCIN
OSCOUT
I0
I1
TESTEN
P35
VBUS
DVDD
RSTPD_N
SVDD
SIGIN
SIGOUT
P34
SDA
P50_SCL
P33_INT1
10 21
9 22
8 23
7 24
6 25
5 26
4 27
3 28
2 29
1 30
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
terminal 1
index area
Transparent top view
Table 3. PR533 pin description
Symbol Pin Type Pad ref
voltage
Description
DVSS 1 G digital ground
LOADMOD 2 O DVDD load modulation output provides digital signal for FeliCa and MIFARE card
operating mode
TVSS1 3 G transmitter ground: supplies the output stage of TX1
TX1 4 O TVDD transmitter 1: transmits modulated 13.56 MHz energy carrier
TVDD 5 P transmitter power supply: supplies the output stage of TX1 and TX2
TX2 6 O TVDD transmitter 2: delivers the modulated 13.56 MHz energy carrier
TVSS2 7 G transmitter ground: supplies the output stage of TX2
AVDD 8 P analog power supply
VMID 9 P AVDD internal reference voltage: This pin delivers the internal reference voltage.
RX 10 I AVDD receiver input: Input pin for the reception signal, which is the load modulated
13.56 MHz energy carrier from the antenna circuit
AVSS 11 G analog ground
AUX1 12 O DVDD auxiliary output 1: This pin delivers analog and digital test signals
AUX2 13 O DVDD auxiliary output 2: This pin delivers analog and digital test signals
DVSS 14 G digital ground
