2. INSTALLATION
2.1 Installed in Laptop PC
The Mainboard of the system should provide a Host connector and Cable connection for BT
module. Please follow the SOP to install & assemble it step by step.
2.2 Testing in Lab

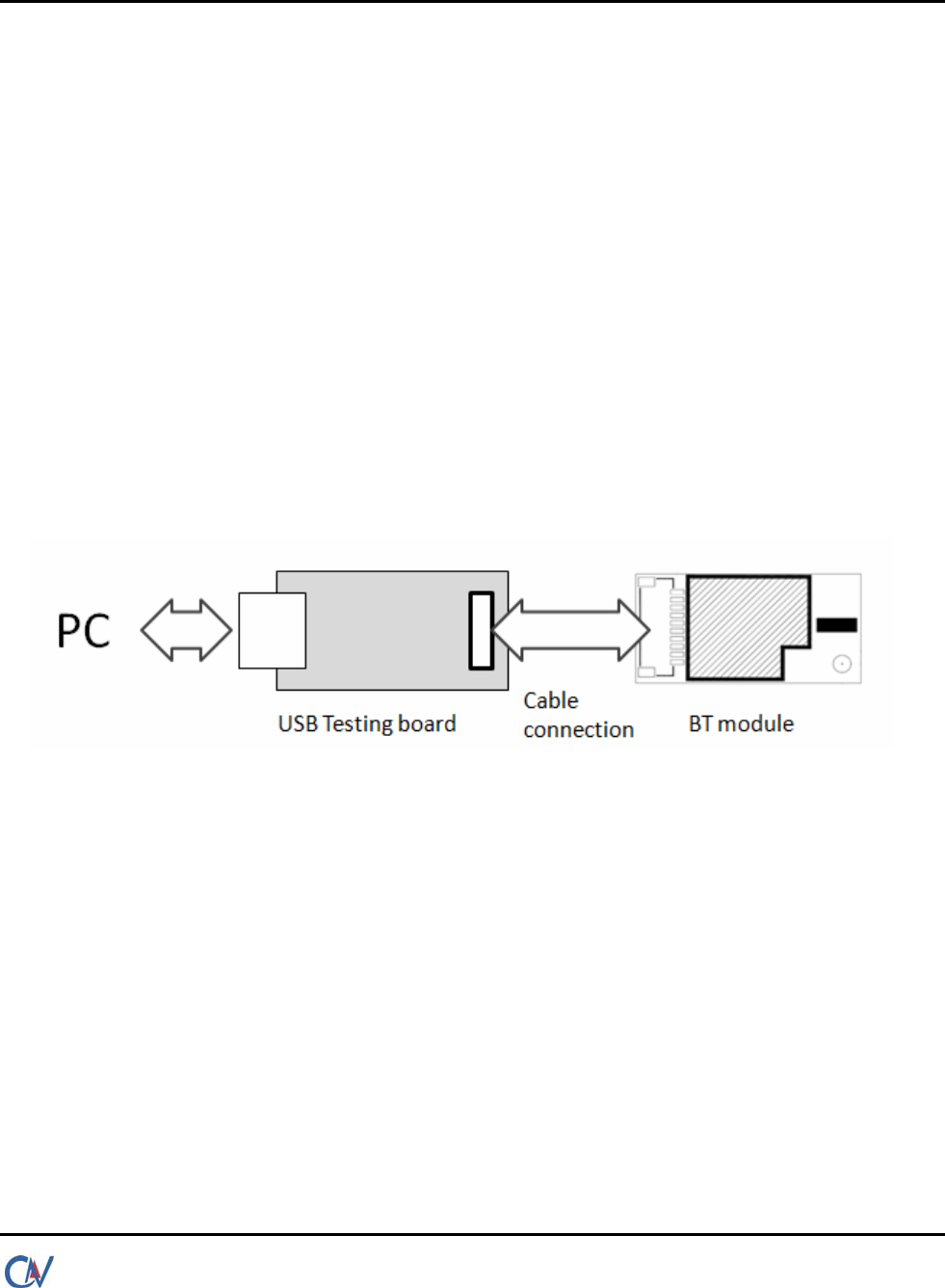

The module is embedded inside Notebook. If for testing purpose, we provide the “USB Testing
Board” in order to let tester connect BTC04R via the special cable connection to PC externally.
The USB Testing Board provides +5V/3.3V conversion from PC Host. Please plug into any USB
port on your PC.
After Hardware installation, when system find the new hardware, please install the driver /
software correctly.
