INTRODUCTION

GV‐FailoverServerisavideobackupserverthatrecordsupto128IPstreamsfromhostsGV‐Systemswhenanyofthefollowingconditions

occur:(1)whenthehostGV‐Systemstartsupwithoutmonitoring;(2)whenfilerecyclingfails;(3)whenthereisanerrorintheharddrive;

(4)whenth

ereisanerrorwiththeFailoverPluginprogram.



Note:TheGV‐FailoverServerdoesnotsupportbackupofanalogcameras.



Features

 Recordupto128IPchannelssimultaneously

 Supportround‐the‐clockrecording

 VideoplaybackusingRemoteViewLog

 SupportforremoteconfigurationandmonitoringofGV‐FailoverServerusingInternetExplorer,Firefox,GoogleChro meandSafari

 Support6third‐partyIPdevicebrands(ArecontVision,Axis,HikVision,Panasonic,Sony,VIVOTEK)

 SupportforONVIF,PSIAandRTSPprotocols

 Supportfor31languages



GV-Failover Server March 14, 2014

-1-

Summary of content (4 pages)

PAGE 1
INTRODUCTION GV‐Failover Server is a video backup server that records up to 128 IP streams from hosts GV‐Systems when any of the following conditions occur: (1) when the host GV‐System starts up without monitoring; (2) when file recycling fails; (3) when there is an error in the hard drive; (4) when there is an error with the Failover Plugin program. Note: The GV‐Failover Server does not support backup of analog cameras.
PAGE 2
Minimum System Requirements Servers meeting the following minimum system requirements have the capacity to receive up to 128 channels. OS 64‐bit Windows 7 / 8 / Server 2008 R2 / Server 2012 CPU Core i5 750, 2.67 GHz Memory 6 GB Dual Channels Hard Disk 1 GB. (for installation)  Internet Explorer 8.0.7600.16385  Internet Explorer 9.00.7930.16406 Browser  Firefox 3.6.13  Google Chrome 9.0.597.94  Safari 5.33.19.
PAGE 3

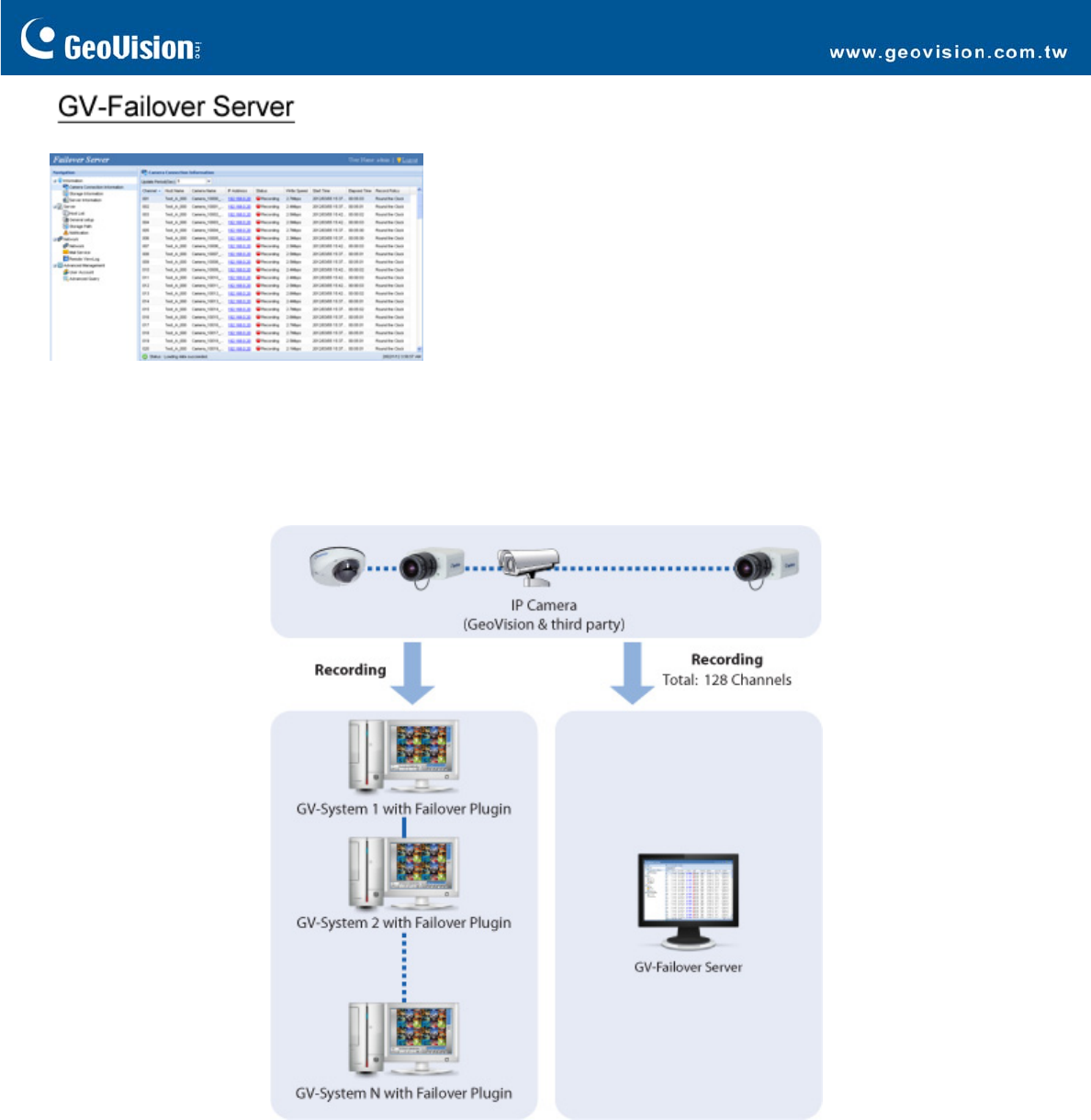

Network Requirements For optimal performance and processing efficiency, it is advisable to use two Gigabit connections, each assigned with 64 channels and run through separate network. The suggested deployment of Gigabit connections for recording is illustrated below.
PAGE 4
Specifications Feature Client Dongle 3rd Party IP Cameras Support Device GV‐System V8.5.3 or later Up to 128 IP channels Yes Records when: 1. host GV‐System is connected but not recording. 2. recycling of video files fails at host GV‐System. Recording Mode 3. an error occurs in the hard drive at host GV‐System. 4. an error occurs with the Failover Plugin program. Protocol DynDNS, HTTP, HTTPS, SMTP, ONVIF, PSIA, RTSP, TCP, UDP Live Viewing No using Remote ViewLog Yes (Remote ViewLog V8.5.
