User's Manual

GLX-RSS-4 User Manual
Page 7 of 16

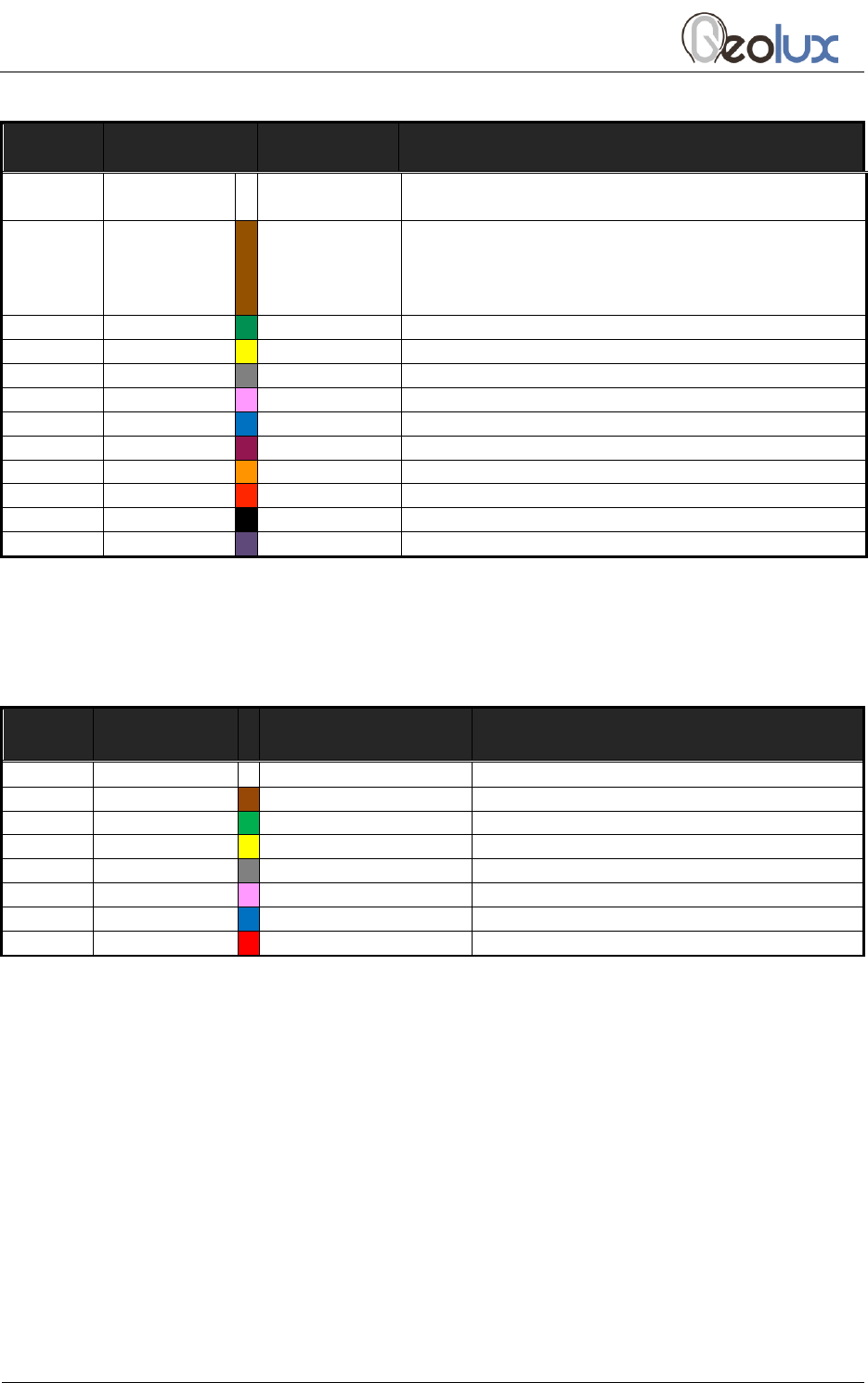

Table 2. Connector and cable pin-out
P i n
N o .
W i r e C o l o r
P i n N a m e
P i n D e s c r i p t i o n
1
White
GND
This pin should be connected to the ground (negative)
pole of the power supply.
2
Brown
+Vin
The power supply for the Radar is provided on this
pin. The Radar power supply voltage must be in the
range 9 VDC to 48 VDC, and the power supply must
be able to provide at last 15W.
3
Green
RS232 – TxD
RS-232 data transmit signal.
4
Yellow
RS232 – RxD
RS-232 data receive signal.
5
Grey
GND
Signal ground.
6
Pink
CAN – H
CAN2.0B high signal.
7
Blue
CAN – L
CAN2.0B low signal.
8
Violet
RS485 – D+
RS-485 data transmitter/receiver high signal.
9
Orange
RS485 – D-
RS-485 data transmitter/receiver low signal.
10
Red
Output 1
Alarm 1 - open collector switch signal max. 60mA
11
Black
Input 1
General purpose input 1 – low active
12
Purple
Input 2
General purpose input 2 – low active
To simplify installation and improve reliability cable with over-molded 12pin M12
connector with IP68 protection is supplied with the radar. Cable has over molded ferrite
core (Wurth Elektronik 742 700 777) for EMI reduction and system protection.
Table 3. Connector and cable pin-out
P i n
N o .
W i r e
C o l o r
P i n N a m e
P i n D e s c r i p t i o n
1
White
BI_DA+ / PoE V1+
Bi-directional pair A +
2
Brown
BI_DA- / PoE V1+
Bi-directional pair A -
3
Green
BI_DB+ / PoE V1-
Bi-directional pair B +
4
Yellow
BI_DC+ / PoE V2+
Bi-directional pair C +
5
Gray
BI_DC- / PoE V2+
Bi-directional pair C -
6
Pink
BI_DB- / PoE V1-
Bi-directional pair B -
7
Blue
BI_DD+ / PoE V2-
Bi-directional pair D +
8
Red
BI_DD- / PoE V2-
Bi-directional pair D -
To simplify installation and improve reliability cable with over-molded 8pin M12
connector with IP68 protection is supplied with the radar connected to the RJ45
standard Ethernet connector on the other side of cable.
GPS antenna connection is implemented with SMA connector on the back of the
device. Active GPS antenna with +5V power supply is recommended for the best
performance. GPS receiver is used for synchronization purpose and antenna location is
not particularly important if good visibility of the sky is assured.
