User's Manual

Antenna Specification
Part No. HG-01
ELECTRICAL SPECIFICATIONS
ITEM SPEC Unit
1 Frequency Range 2400-2500&5150-5850 (MHz)
MHz
2 Impedance 50 Ω
3 Polarization R.H.C.P
4
Gain at Zenith
(2400MHz-2500MHz) +4.5 &(5150MHz-5850MHz) +3
typ
5 Axial Ratio 3.0 Max. dB
6 Operation Temperature Range -40℃ to +85℃
℃
7 Ground plane
70 x 70 D=3.0mm

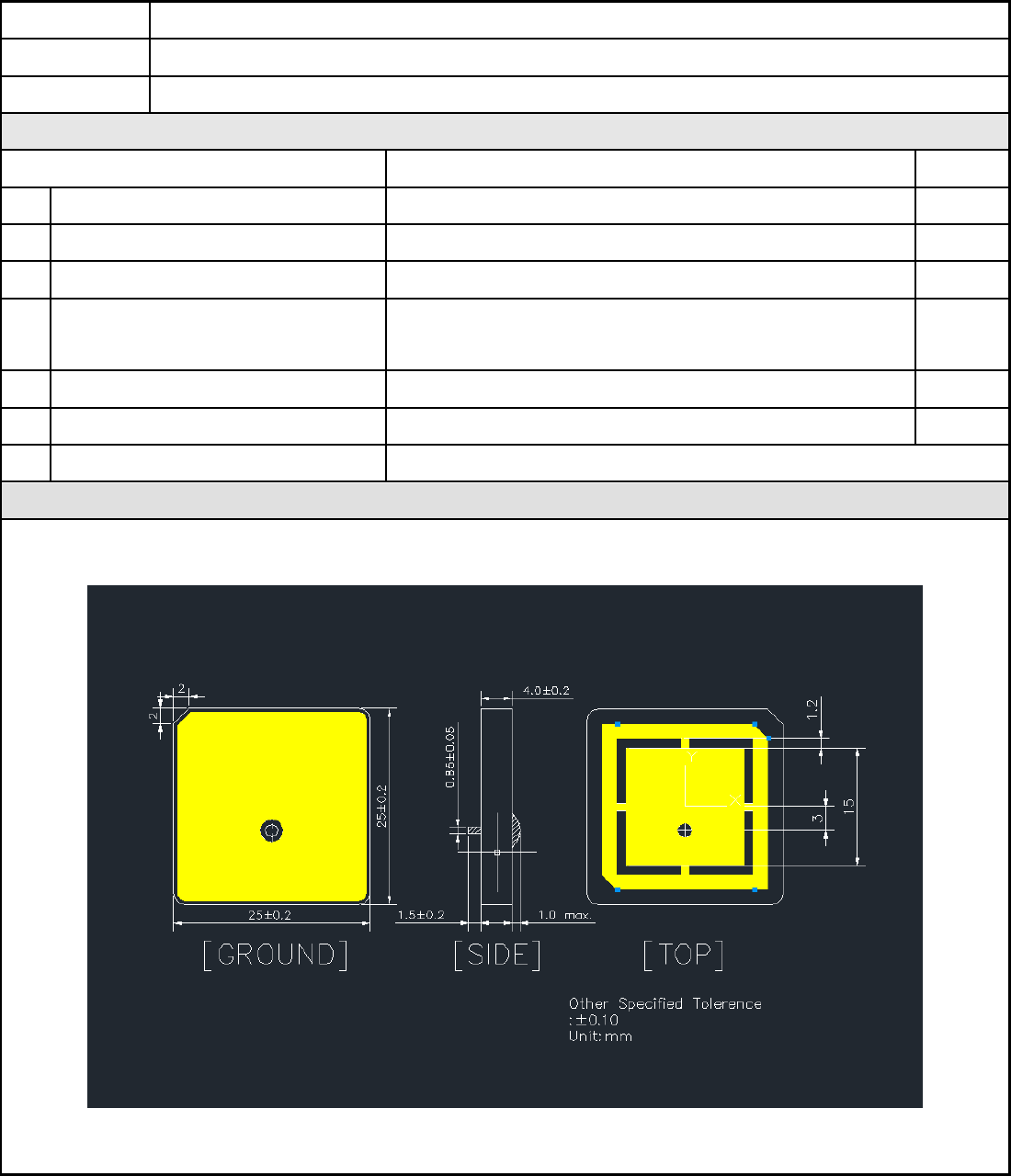

DIMENSIONS
3dBi
Ant type
Integrated antenna
Customer
Geoelectron DATE: 2020/1/2
