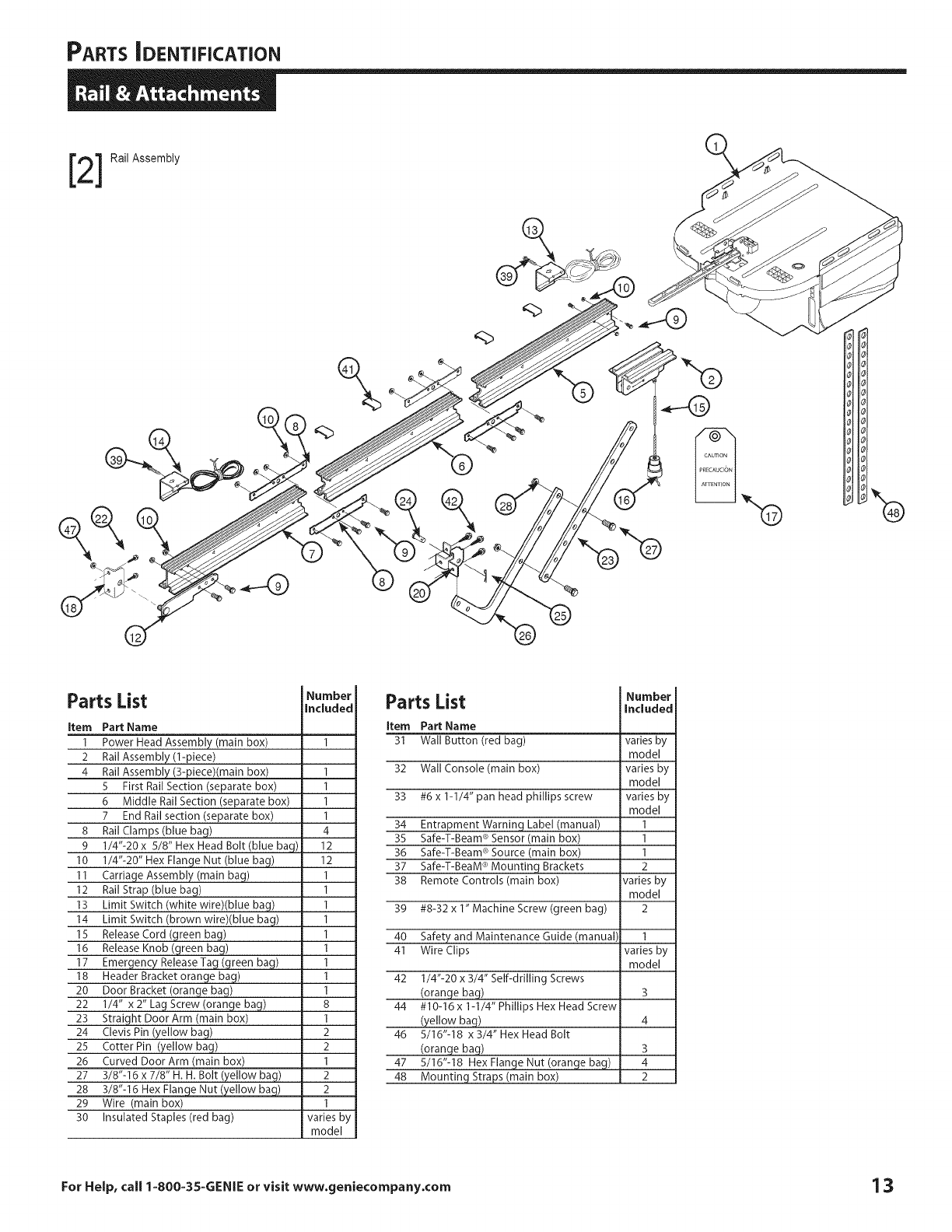

PARTS i DENTIFICATION

[2]RailAssembly

\

Parts List

item Part Name

1 Power Head Assembly (main box)

2 RailAssembly (1-piece)

4 RailAssembly_3:piece)(main box)

5 First RailSection (separate box)

6 Middle Rail Section (separate box)

7 End Rail section (separate box)

8 RailClamps (blue bag)

9 1/4"-20x 5/8" HexHead Bolt (blue bag)

10 1/4"-20" Hex Flange Nut (blue bag)

11 Carriage Assembly (main bag)

12 RailStrap (blue bag)

13 Limit Switch (white wire)(blue bag)

14 Limit Switch (brown wire)(blue bag)

15 ReleaseCord (green bag)

16 ReleaseKnob (green bag)

17 Emergency ReleaseTag (green bag)

18 Header Bracket orange bag)

20 Door Bracket (orange bag)

22 1/4" x 2" Lag Screw (orange bag)

23 Straight Door Arm (main box)

24 Clevis Pin (yellow bag)

25 Cotter Pin (yellow bag)

26 Curved Door Arm (main box)

27 3/8"-16 x 7/8" H.H.Bolt (yellow bag)

28 3/8"-16 Hex Nan e Nut ( ellow ba )

29 Wire (main box)

30 Insulated Staples(red bag)

m

1

I

I

I

I

4

12

12

I

I

I

I

I

I

I

I

I

8

I

2

2

I

2

2

I

variesby

model

Parts List

item Part Name

31 Wall Button (red bag)

32 Wall Console (main box)

33 #6 x 1-1/4" pan head phillips screw

34 Entrapment Warning Label (manual)

35 Safe-T-Beam®Sensor (main box)

36 Safe-T-Beam®Source (main box)

37 Safe-T-BeaM®Mountinq Brackets

38 Remote Controls (main box)

39 #8-32 x 1" Machine Screw (green bag)

40 Safety and Maintenance Guide (manual)

41 Wire Clips

42 1/4"-20 x 3/4" Self-drilling Screws

(orange bag)

44 #10-16 x 1-1/4" Phillips Hex Head Screw

(yellow bag)

46 5/16"-18 x 3/4"Hex Head Bolt

(orange bag)

47 5/16"-18 Hex Flange Nut (orange bag)

48 Mounting Straps (main box)

m

variesby

model

varies by

model

varies by

model

1

1

1

2

varies by

model

2

1

varies by

model

3

4

3

4

2

For Help, call 1-800-3S-GENIE or visit www.geniecompany.com 13
