2-2 GENICOM LN45 and Intelliprint mL450 User Guide
Main Unit
About this Chapter
Describes the parts of the printer and paper handling options and their functions. A discussion of the paper
path is also included. Also describes all available options and consumables for your printer and their respec-
tive part numbers.
Main Unit

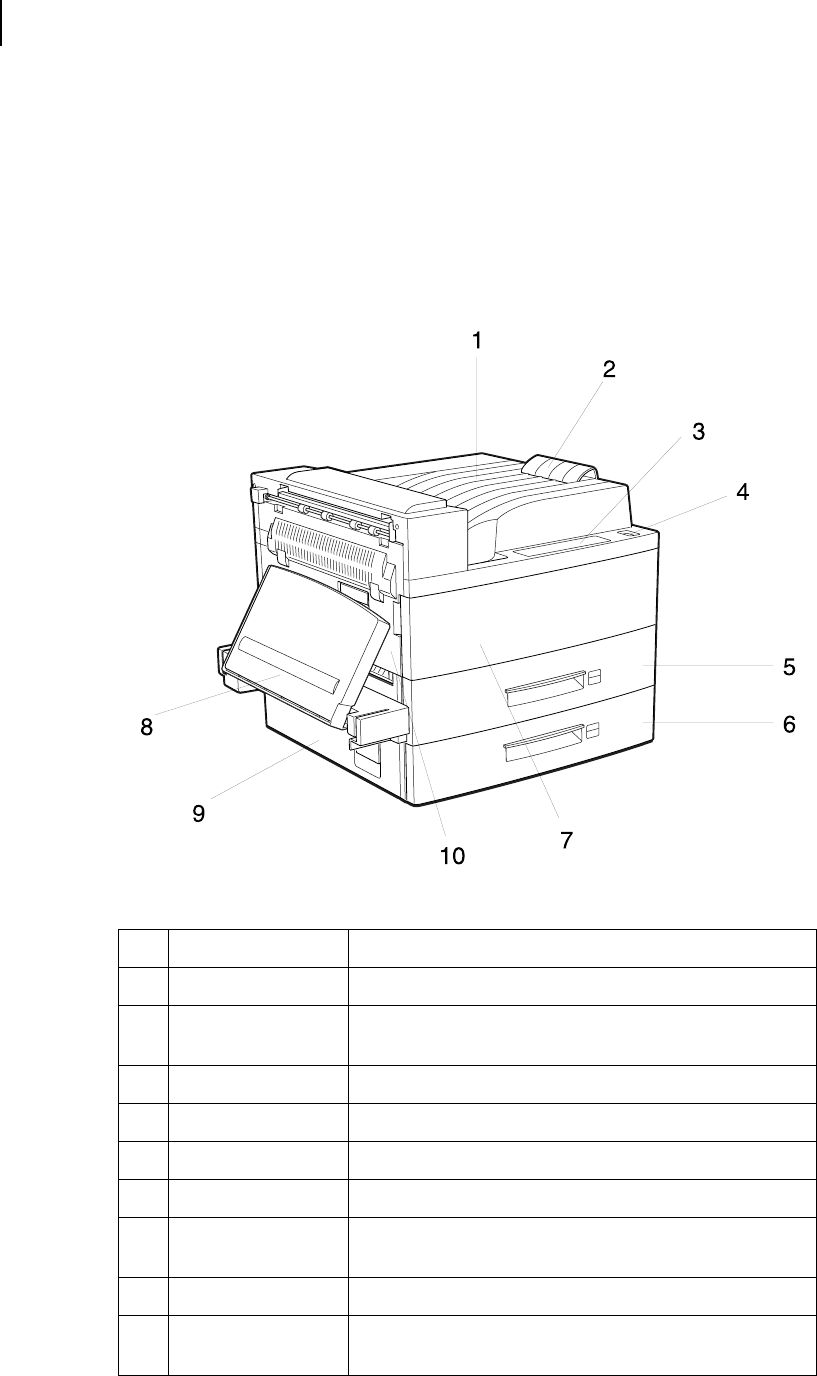

Front view
1 Paper output tray Collects printed sheets, face down.
2 Paper stopper Stops printed sheets so that they are collected properly.
3 Operation panel Contains all push-buttons, LEDs and LCD display controls
required for operation of the printer.
4 Power switch Serves to turn the printer on and off.
5 Tray 1 Paper cassette which holds about 500 sheets of paper.
6 Tray 2 Paper cassette which holds about 500 sheets of paper.
7 Front cover Provides access to the EP cartridge inside the printer.
8 Multi bypass feeder
(MBF)
Accepts both standard and non-standard paper sizes for
printing.
9 Lower left cover Access area for clearing paper jam.
10 Upper left cover Open this cover to clear paper jam or when replacing the
EP cartridge.
