SPECIFICATIONS
MLT6SMD
LED LIGHT TOWER
FLOODLIGHTS
• Four (4) 296W LED fixtures
• Efficiency: 145 lumens per watt
• Lumens per fixture: 43,050
• Total lumens: 172,200
• Coverage: 19,526 ft2 (1,840 m2) at 0.5 ft-c
• IP68 LED modules; IP65 rated drivers
• Aluminum / Poly construction housing
• Fixture-mounted LED drivers
• 30VDC mast cord and fixture
ELECTRICAL SYSTEM
• 30A outlet breaker
• Individual floodlight circuits with sealed 5A breakers
o (1) 120 VAC 20 Amp GFCI duplex outlet (NEMA 5-20R type)
o (1) 240 VAC 30 Amp twist lock outlet (NEMA L6-30R type)
• Wiring is sized and fused to the amperage draw required
• 440CCA wet cell battery
MAST
• Vertical mast; 23 ft. (7 m), 5-section with ground adjustable light fixtures
• Dual handle manual winch for ease of deployment; electric winch optional
• Distinctive angled fixture mount for common light distribution
• 359° ground rotational mast with mast fully extended
• Industrial black powder coat finish with polymer guides
• Self-retracting coiled mast cord
ENCLOSURE
• Injection-molded hood enclosure with UV protected colorant
• Flip hood engine compartment for ease of service
• Multi-lingual operating/safety decals
• License plate holder with light
• Manual holder with operating manual
• 63 dB(A) @ 23 ft. (7 m) – low speed operation
• Equipped with single lifting eye and fork pockets
TRAILER
• Tubular steel frame
• Three (3) 1200 lb. (544 kg) tube and sleeve leveling jacks
• All jacks transport and lock in position for storage
• Side outriggers deployed – 10 ft. (305 cm) span
• 7800 lb. (3538 kg) safety chains with spring loaded safety hooks
• 2 in. (50.8 mm) ball hitch
• Molded polyethylene fenders
• DOT approved LED tail, side, brake, and directional lights
• 2200 lb. (998 kg) leaf spring axle
• ST175/80D13 – 6 ply
• 47 in. (117 cm) track width

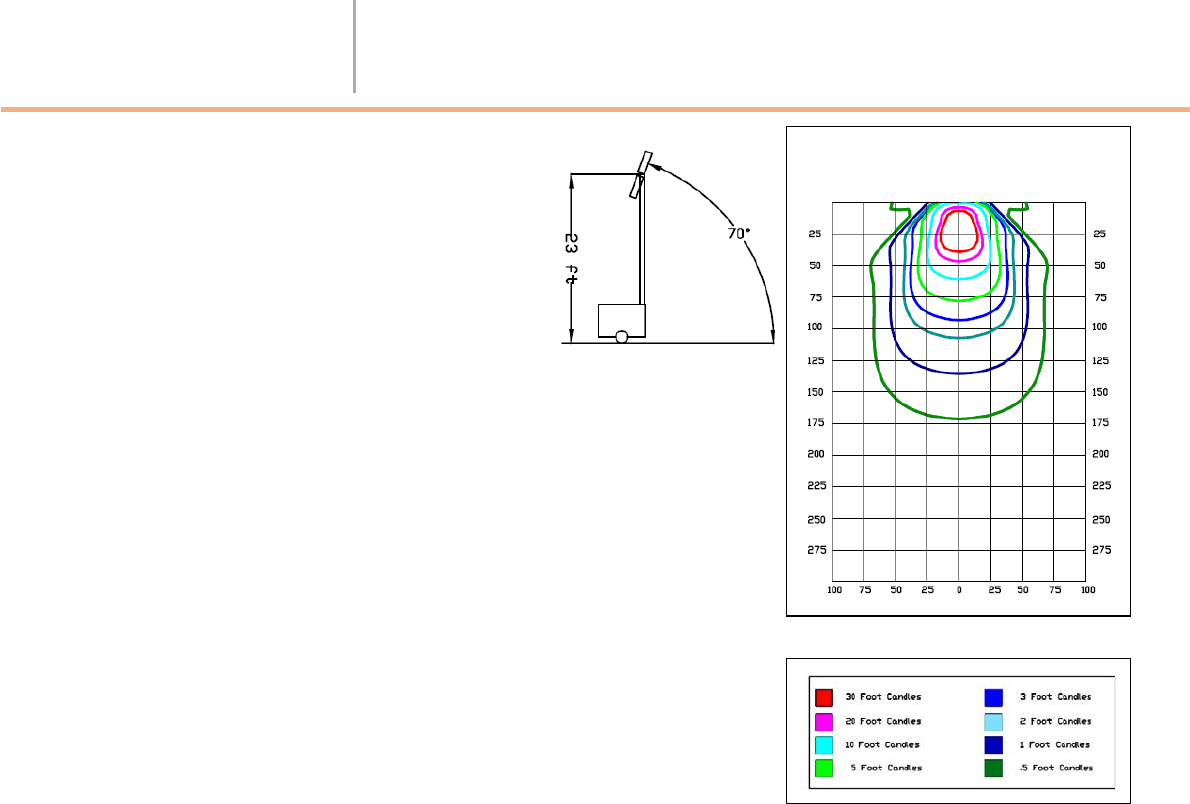

LIGHT TOWER COVERAGE (feet)
Fixtures @ 20⁰ downward tilt
