Bridge Mode

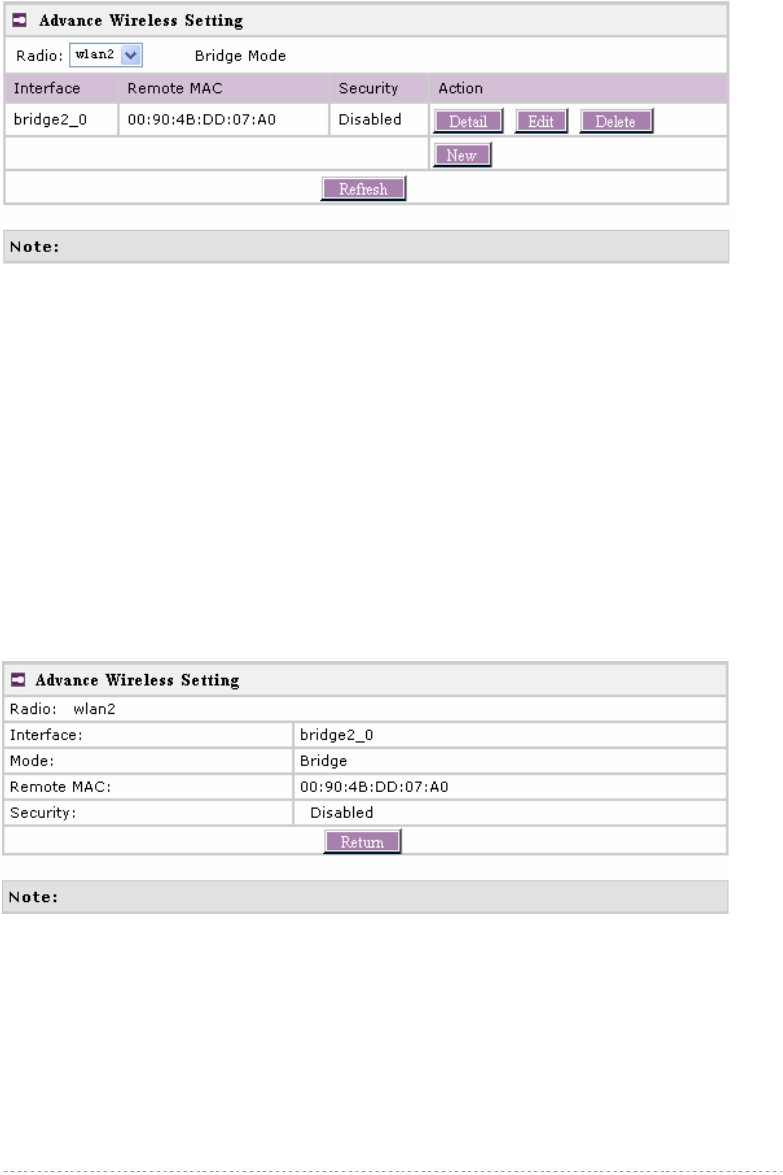

Figure 56 – Advanced Wireless Setting (Bridge Mode)
Radio – specifying which RF card (wlan1 or wlan2) is needed to be configured since BW1251 has two
Dual-Band radios
Mode – specifying the operation mode of BW1251 (AP or Bridge)
Interface – choosing the specified Bridge link entry you want to configure.
Remote MAC – specifying the remote peer’s MAC address of this Bridge
Security – specifying which security policy is used
New – creating a new Bridge link entry
Detail – showing the detail information of this Bridge link entry
Edit – editing the selected Bridge link entry you want to configure
Delete – deleting the selected Bridge link entry.
Clicking Detail, a page shown below will appear:
Figure 57 – Detail of one bridge entry
Clicking Edit to edit an existing bridge link or New to add a new bridge link, you can see the figure like
this.
