Bottom Cover

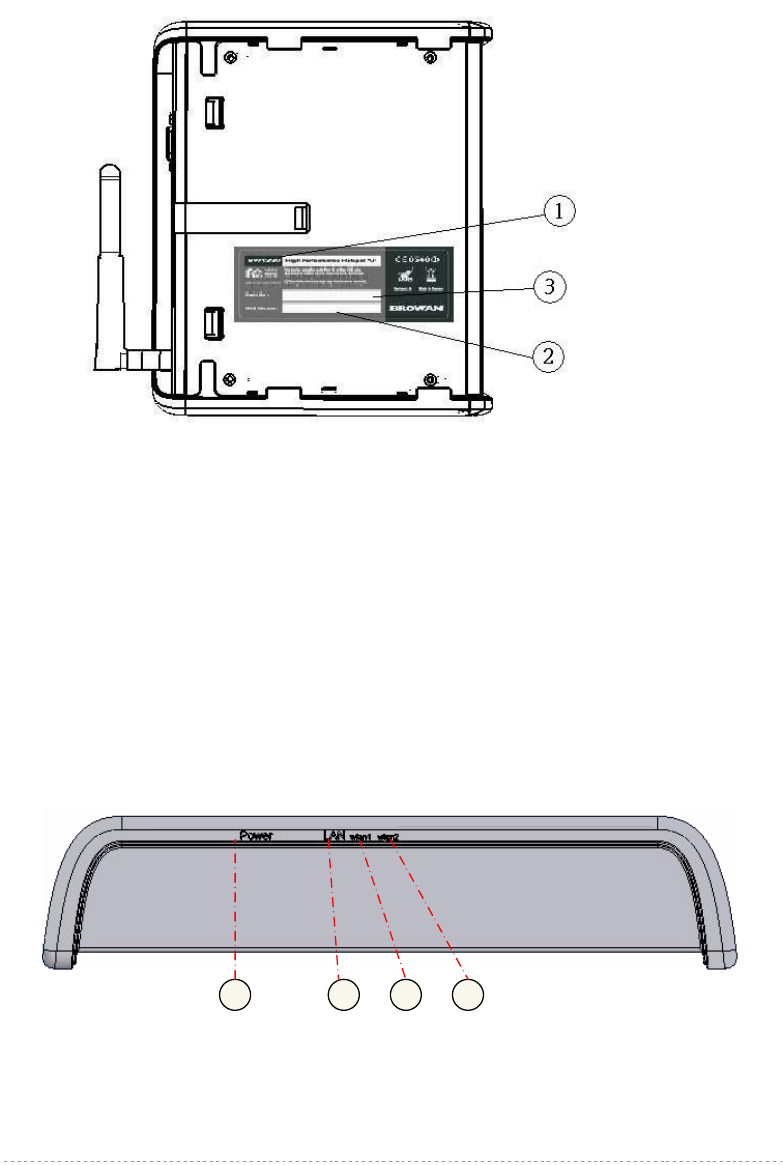

Figure 2 –Bottom Cover of the BW1251
The Bottom Cover of the BW1251 contains:
1. Back Label with Model and Device name. The official device name is Dual Radio 2.4GHz/5GHz
Access Point, model BW1251.
2. Serial Number label of the device.
3. MAC address label of the device. The MAC label shows the WLAN1 interface MAC address of
the device.
LEDs
The BW1251 Access Point has 4 LEDs located on the front panel:
Figure 3 – LEDs of the BW1251
The various states of the LEDs indicate different networking and connection operations as follows:
1 2 3 4
