6.3 Board-to-Board Application Connector
40
PH8_PH8-P_HD_v02.000 Page 38 of 46 2011-10-21
Confidential / Released

Mating connector types for the customer's application offered by Molex:

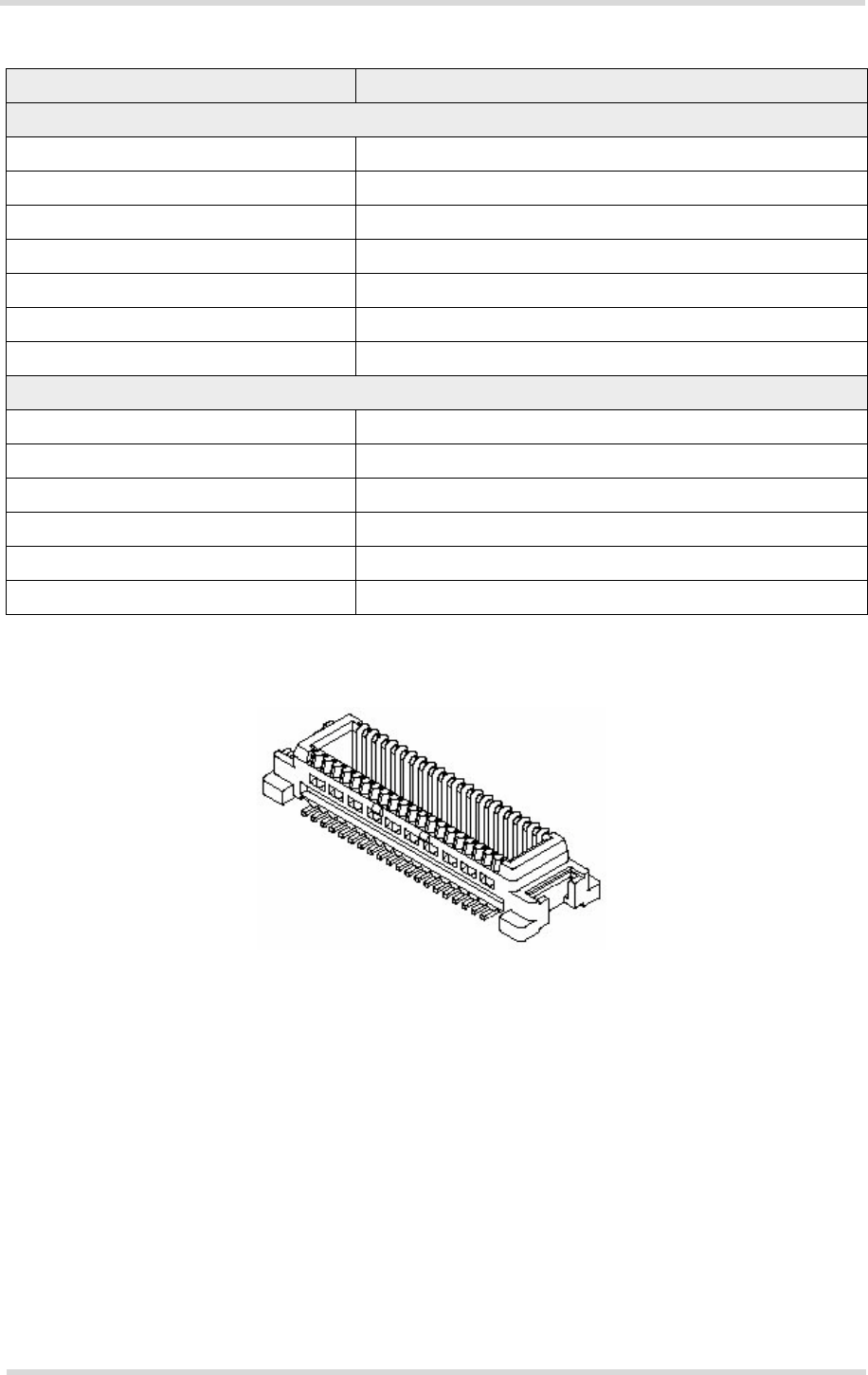

Figure 11: Mating board-to-board connector 53748-0808 on application
• 53748-0808 SlimStack Plug, 3mm stacking height,
see Figure 13 for details.
• 53916-0808 SlimStack Plug, 4mm stacking height
Note: There is no inverse polarity protection for the board-to-board connector. It is therefore
very important that the board-to-board connector is connected correctly to the host application,
i.e., pin1 must be connected to pin1, pin2 to pin 2, etc. Pin locations are shown in Figure 9.
Table 14: Technical specifications of Molex board-to-board connector
Parameter Specification (80-pin B2B connector)
Electrical
Number of Contacts 80
Contact spacing 0.5mm (.020")
Voltage 50V
Rated current 0.5A max per contact
Contact resistance 50m max per contact
Insulation resistance > 100M
Dielectric Withstanding Voltage 500V AC (for 1 minute)
Physical
Insulator material (housing) White glass-filled LCP plastic, flammability UL 94V 0
Contact material Plating: Gold over nickel
Insertion force 1
st
< 74.4N
Insertion force 30
th
< 65.6N
Withdrawal force 1
st
> 10.8N
Maximum connection cycles 30 (@ 70m max per contact)
