PH8/PH8-P Hardware Interface Overview
6.1 Mechanical Dimensions of PH8/PH8-P
40
PH8_PH8-P_HD_v02.000
Page 36 of 46
2011-10-21
Confidential / Released

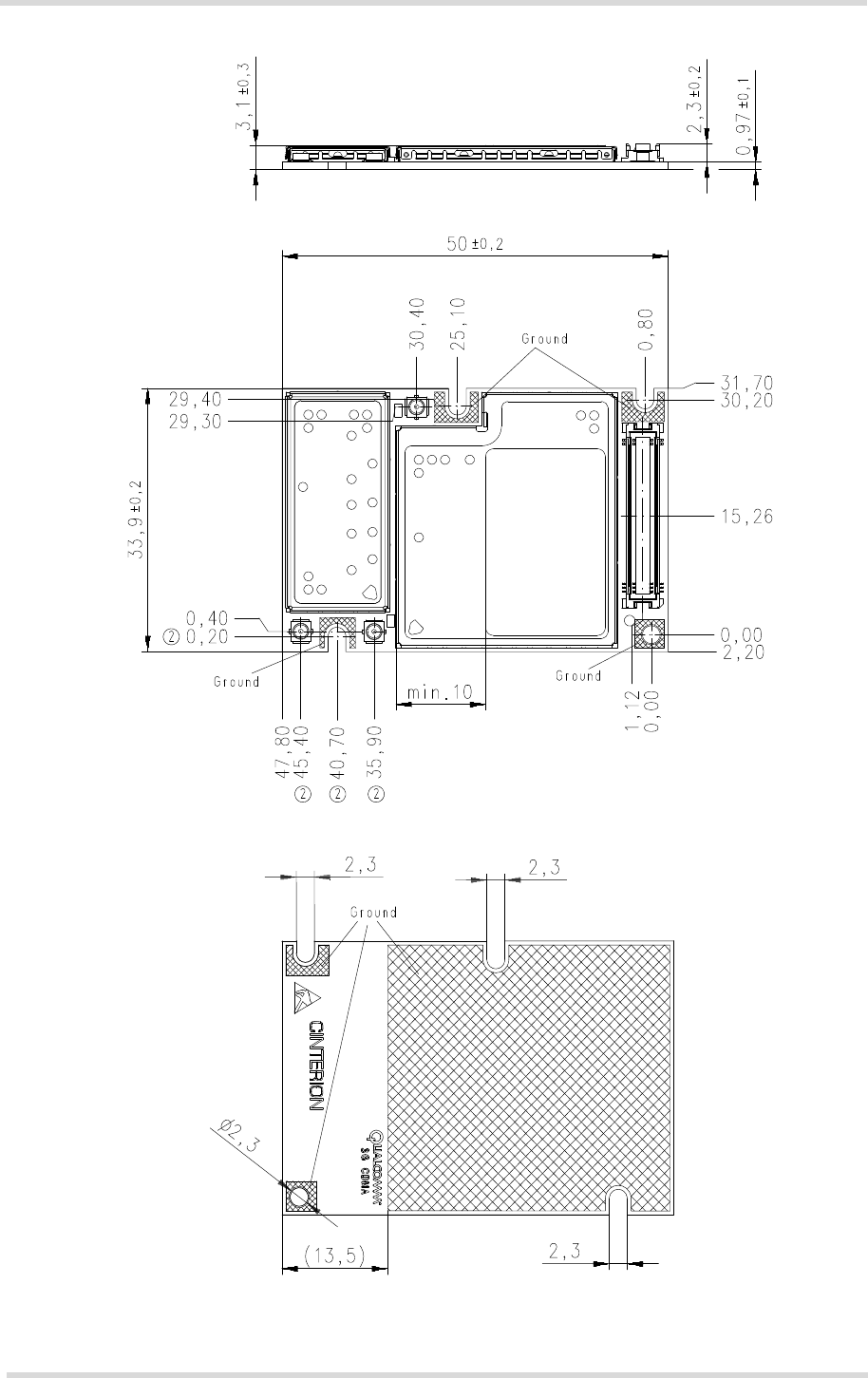

Figure 10
:
Dimensions of
PH8/PH8-P (all dime
nsions in mm)
1
...
...
34
35
36
37
38
...
...
46
