User's Manual

PH8/PH8-P Hardware Interface Overview
5.1 GSM/UMTS Antenna Interface
34
PH8_PH8-P_HD_v02.000 Page 32 of 46 2011-10-21
Confidential / Released

In addition to the connectors illustrated above, the U.FL-LP-(V)-040(01) version is offered as
an extremely space saving solution. This plug is intended for use with extra fine cable (up to

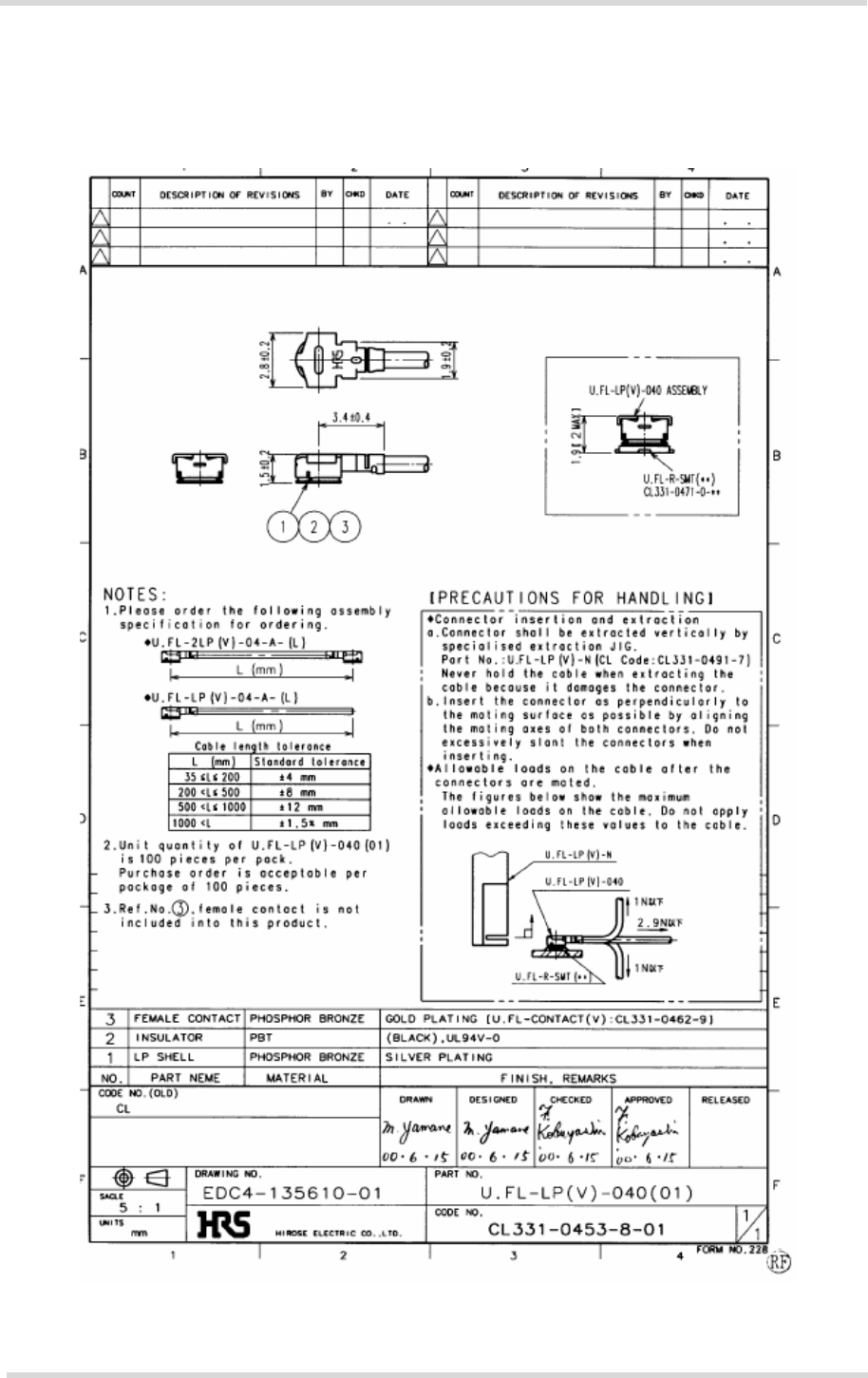

Ø 0.81mm) and minimizes the mating height to 2mm. See Figure 8 which shows the Hirose
data sheet.
Figure 8: Specifications of U.FL-LP-(V)-040(01) plug
