User's Manual

PH8/PH8-P Hardware Interface Overview
5.1 GSM/UMTS Antenna Interface
34
PH8_PH8-P_HD_v02.000 Page 31 of 46 2011-10-21
Confidential / Released

Mating plugs and cables can be chosen from the Hirose U.FL Series or from other antenna
equipment manufacturers like Molex or IMS. Examples from the Hirose U.FL Series are shown
below and listed in Table 13. For latest product information please contact your respective an-
tenna equipment manufacturer.

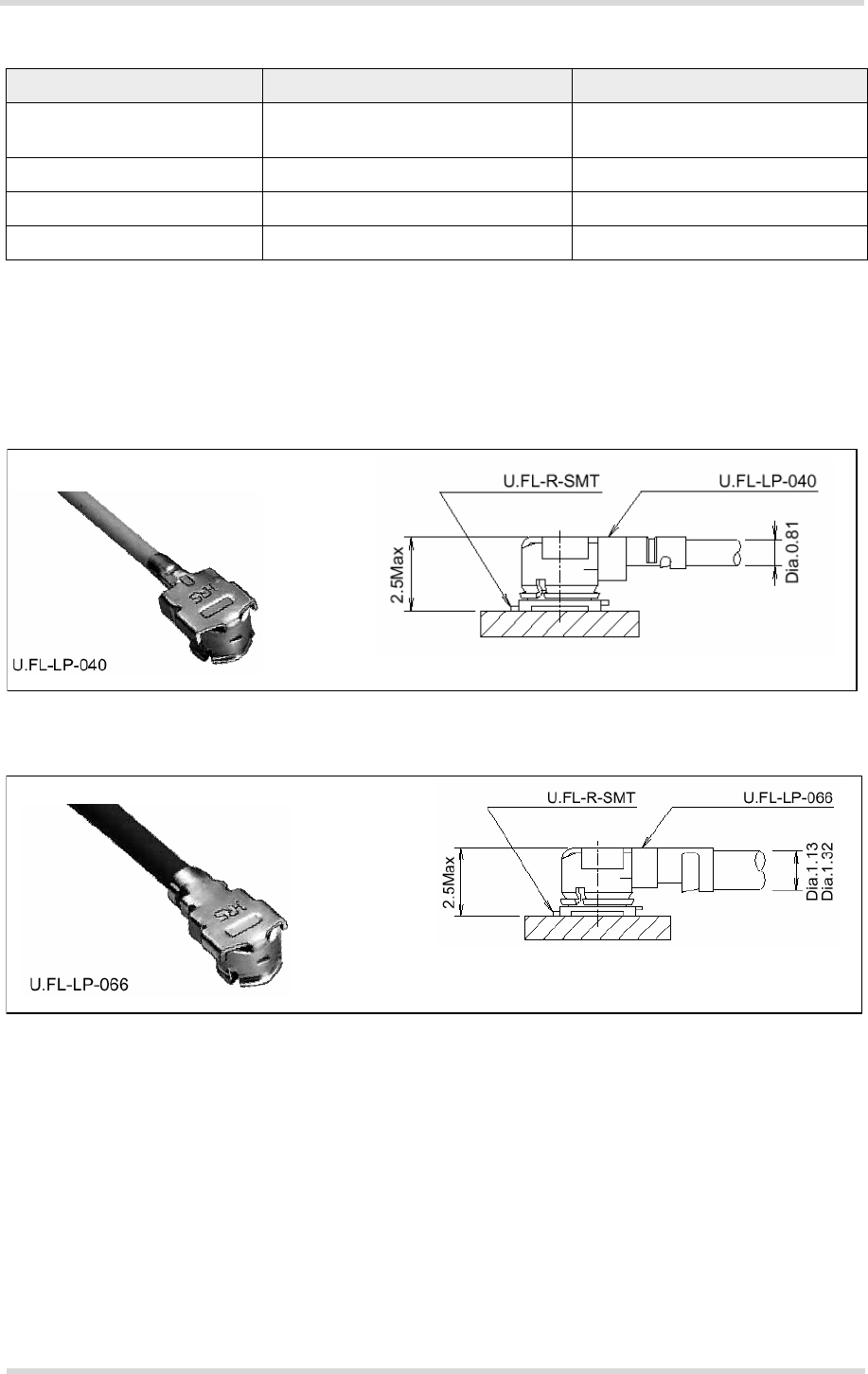

Figure 6: U.FL-R-SMT connector with U.FL-LP-040 plug
Figure 7: U.FL-R-SMT connector with U.FL-LP-066 plug
Table 12: Material and finish of PH8/PH8-P antenna connectors and recommended plugs
Part Material Finish
Shell Phosphor bronze Hirose: Silver plating
Molex: Gold plating
Male center contact Brass Gold plating
Female center contact Phosphor bronze Gold plating
Insulator Receptacle: LCP Hirose: Beige, Molex: Ivory
