Burst Current PCS1900 (V
BATT+
=4.1V)
0.92
0.6
0.3
0.42
0.24
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Power Control Level
Current (Amps)
1 TX - Peak current
Test conditions: T
amb
= 25°C, V
BATT+ nom
= 4.1V

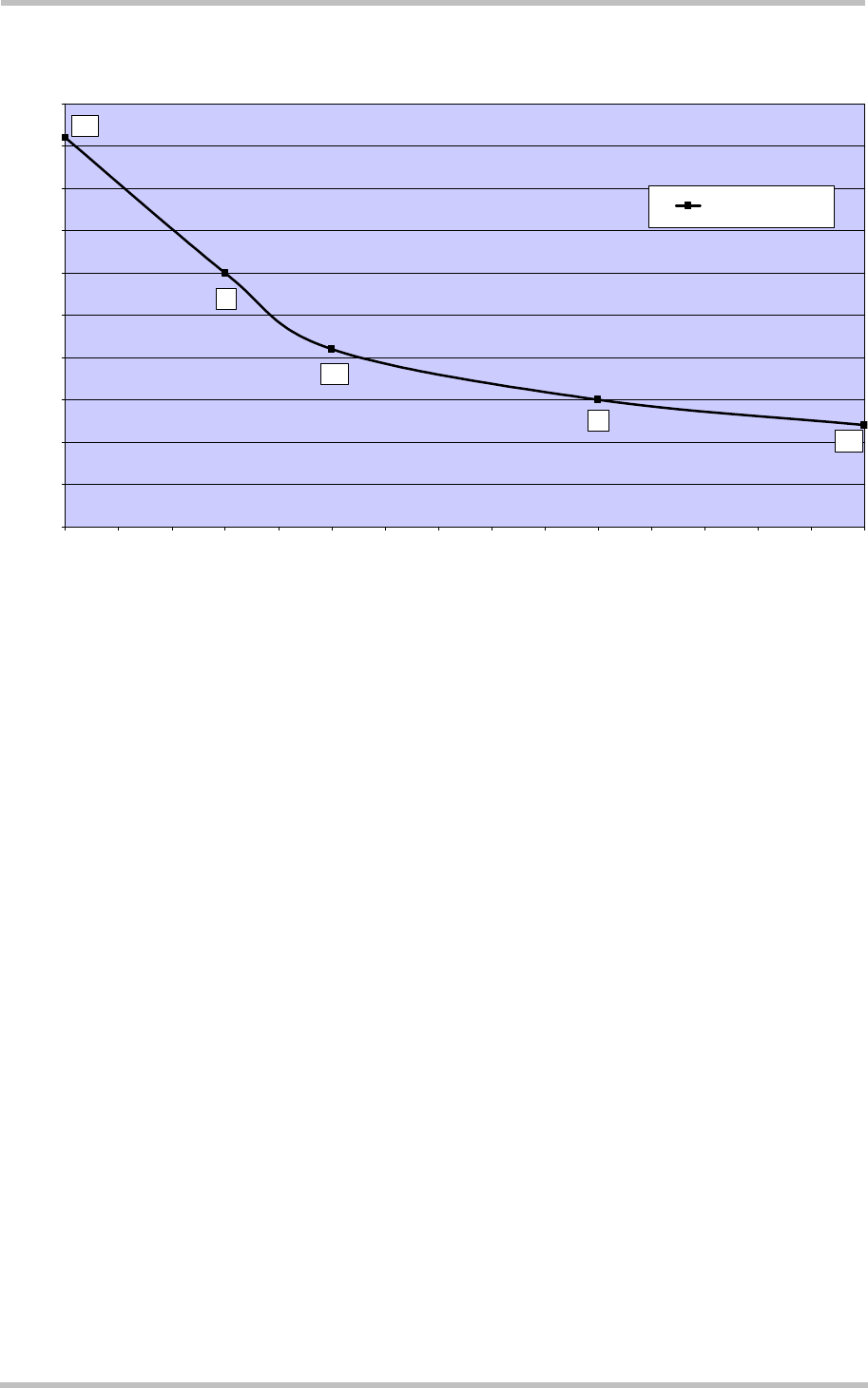

Figure 35: Typical current consumption vs. power control level
