MC55/56 Hardware Interface Description
Confidential / Preliminary
s
MC55/56_hd_v03.00
Page 94 of 104
16.08.2005

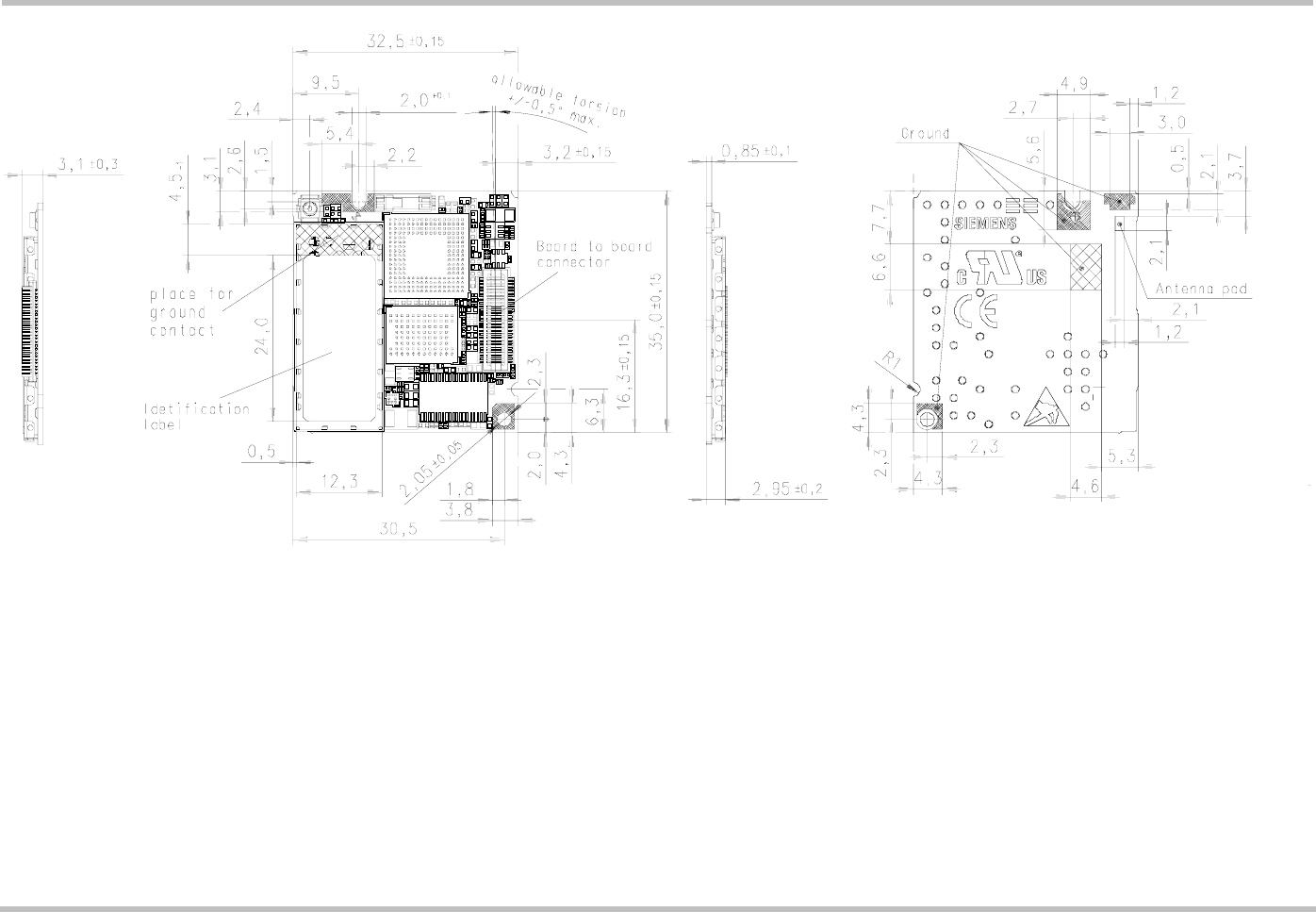

All dimensions in millimetres
Figure 40: Mechanical dimensions of MC55/56
