1. For RF performance tests a mini-SMT/U.FL to SMA adapter with attached 6dB coaxial attenuator is
chosen to connect the evaluation module directly to the GSM/UMTS test equipment instead of employing
the SMA antenna connectors on the

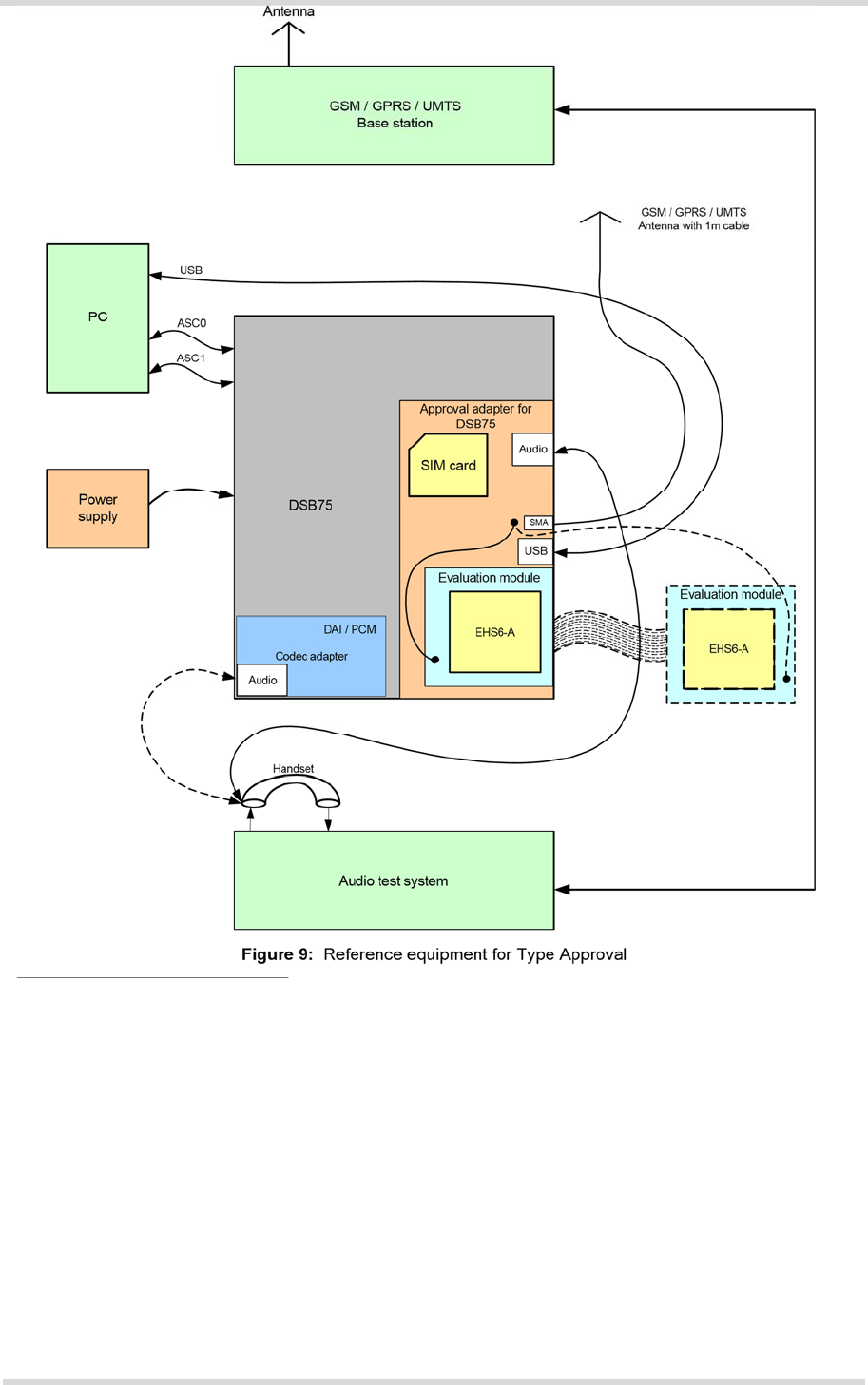

EHS6-A -DSB75 adapter as shown in Figure 9. The following
products are recommended:
Hirose SMA-Jack/U.FL-Plug conversion adapter HRMJ-U.FLP(40)
(for details see http://www.hirose-connectors.com/ or http://www.farnell.com/
Aeroflex Weinschel Fixed Coaxial Attenuator Model 3T/4T
(for details see http://www.aeroflex.com/ams/weinschel/pdfiles/wmod3&4T.pdf)
5.4 Compliance with FCC and IC Rules and Regulations 32
5.4 Compliance with FCC and IC Rules and Regulations
The Equipment Authorization Certification for the Gemalto M2M reference application
described in Section 5.3 will be registered under the following identifiers:
