DIP SWITCH CONFIGURATION
Receiver Unit
The Gefen DVIKVM Extra Long Range Extender contains four (4) DIP switches
on the bottom of the Receiver Unit. Each DIP switch performs a different
function.
DIP Switch 1 - EDID Mode (Default = OFF)
• ON - Pass-Through Mode
DDC and HPD are passed through. Both the connection status and the full
video capabilities of the monitor are used by the source device.
• OFF - Local EDID Mode
Local EDID is used instead of the EDID from the display device. EDID
features newer than HDMI 1.3 are removed when the display is read. This
provides a general EDID which is compatible with more displays.

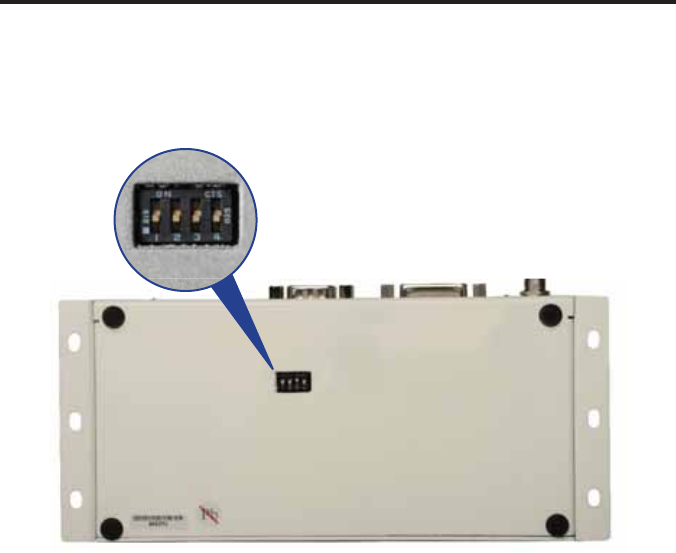

Four DIP switches located on the
bottom of the Receiver Unit.
