Sender Unit
The Gefen DVIKVM Extra Long Range Extender contains DIP switches on the
bottom of the Sender Unit. Each DIP switch performs a different function.
DIP Switch 1 - Power Management (Default = ON)
• OFF - Enable Green Mode
Sender and Receiver Units are ON only when the DVI source is active. This
is the default position. If the DVI source enters sleep mode then both the
Sender and Receiver Units will enter Standby (“Green”) Mode.
• ON - Disable Green Mode
Sender and Receiver Units are always ON.
DIP Switch 2 - RS-232 Mode (Default = OFF)
• OFF - Pass-through Mode
Pass-through mode for RS-232. This is default position.
• ON - Firmware Upgrade Mode
Firmware Upgrade mode (See page 12 for instructions). If DIP switch 2 is in
the ON position, RS-232 cannot be extended.

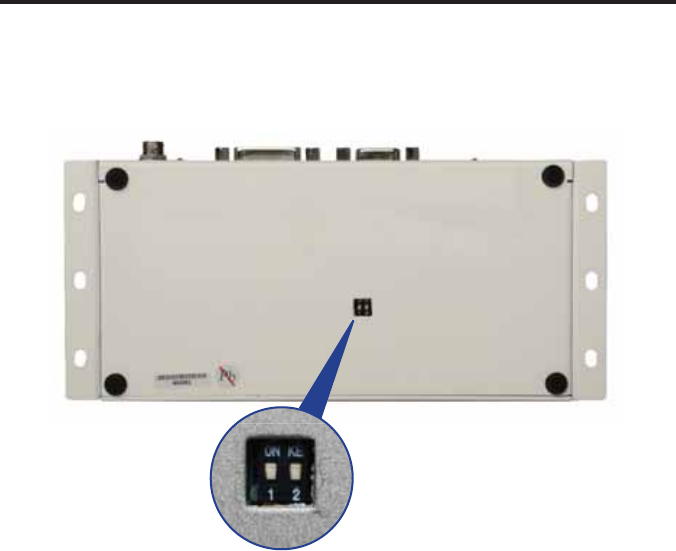

DIP SWITCH CONFIGURATION
Two DIP switches located on
the bottom of the Sender Unit.
