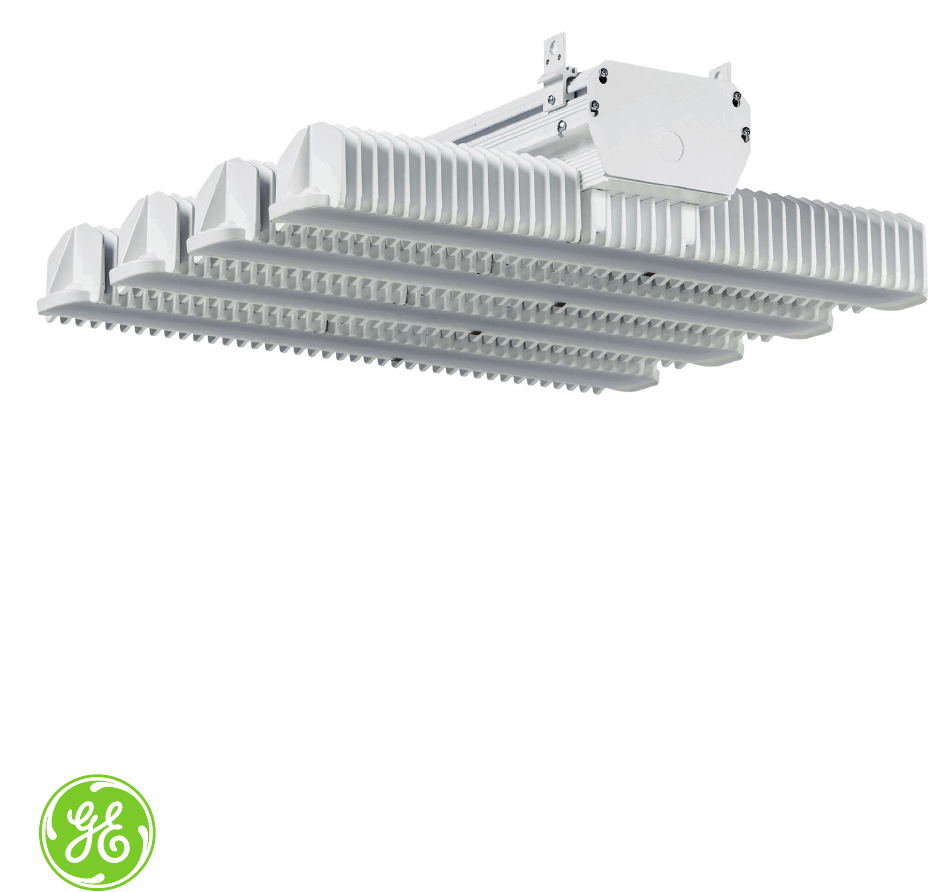

GE Lighting Albeo LED Luminaire ™ Modular High & Low Bay Lighting (ABHG - Series UL & CUL Certified) imagination at work
Product Features Albeo continues to build on the groundbreaking award winning ABH-Series LED luminaire with its latest version, the ABHG-Series. Utilizing the same innovative heat sinking and cutting edge LED technology but with improved electronics, the HG series offers higher efficacy for new construction and retrofit applications . Combine all these great features with controls technologies to deliver a high tech solution to High and Low bay applications.
Ordering Number Logic Scalable High Bay (ABHG-UL & CUL) A _B _H _G _ - _ - _ - _ - __ - _ _ PRODUCT ID A = Albeo B = Bay H = H-Series VOLTAGE MODULE 0 = 120/277 1 = 120* 4 = 277* 5 = 480* D = 347* 1 = 1 module 2 = 2 modules 3 = 3 modules 4 = 4 modules DRIVE CURRENT LED COLOR TEMP T = Standard 70 Plus CRI H = High 47 = 4000K Output V = Very High 57 = 5000K 80 Plus CRI 48 = 4000K 58 = 5000K *Specify single G = Global Specification voltage if cord and plug needed OPTICS BEAM 1 = 1
Photometrics Optics for Common Applications Aisle Distribution 20° Full Beam Angle Aisle Distribution 30° Full Beam Angle 90° 90° S Spacin ng g Crite Criter erria: a: 0° = 1.36 . 90° = .45 VA: 0° 10° 20° 30° 80° S Spacin ng g Crit Criteria: er 0° = 1. 1.23 90° = 0.37 9 0 37 70° 70° 60° 60° 50° 50° 40° VA: 0° 10° 20° 30° 40° Narrow Distribution 40° Full Beam Angle Aisle Distribution 30° Diffuse Angle 90° S Spacin ng g Crit Criteria: er 0° = 1. 1.20 90° = 0.
Mounting & Accessories MOUNTING OPTIONS IMAGE ORDER LOGIC CODE Standard Chain/Cable Mount Available on all fixture configurations (chain not included). Y-Cable w/hook can be ordered as an accessory. ST = Standard Mounting Holes Installed Rod Mount (optional) Available on all fixture configurations. Attaches to 1/2” threaded rod (rod and nuts not included). Pendant Mount (optional) Available on all fixture configurations. Attaches to 3/4” threaded conduit (conduit not included).
Product Dimensions Scalable High Bay (ABHG-UL & CUL) ABHG-Series 7.7” 6.8” 21.31” 3.6” 22.2” 15.5” 3.4” 2-Module (T,H) 1-Module (V) 21.3” Max. Weight: 17 lbs. (7.7 kg) Max. Weight: 13 lbs. (5.9 kg) 21.31” 21.31” 29.5” 3-Module (H) Max. Weight: 31 lbs. (14.1 kg) 29.5” 4-Module (H) Max. Weight: 36 lbs. (16.4 kg) 21.31” 5.
Lens selection by application The Albeo™ ABHG-series optical lens system enables LEDs to provide precise illumination where needed. Lenses are designed for commercial & industrial applications where mounting height, fixture spacing & light levels help determine lens selection. The following table outlines lens options and suggested application. Consult factory for specific project layouts.
www.gelighting.com Albeo™, GE and the GE Monogram are trademarks of the General Electric Company. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions. GE Lighting Solutions, LLC is a subsidiary of the General Electric Company. © 2014 GE Lighting.
