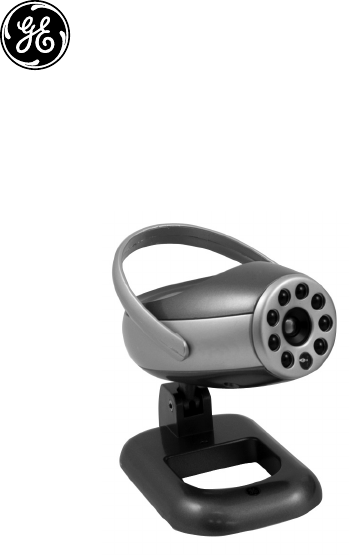

45233 Home Monitoring Wireless Color Camera User Manual For indoor/outdoor use. Do not use in wet locations. www.jascoproducts.
Thank you for purchasing the GE 45233 Wireless Color Camera. This product is intended for use as an add-on camera for GE Color or B/W wireless systems (45234, 45235, 45236.) Please review these instructions carefully before attempting to operate the camera. PRODUCT FEATURES • “WiFi” friendly—won’t interfere with home wireless networks. • Night Vision feature—View objects in low or no light up to 10 ft. • Small, unique design is simple to set up and easy to use.
2. Wall mounting hardware 3. AC adapter CHOOSING A CAMERA MOUNTING LOCATION The 45233 Wireless Color Camera can be positioned on a desktop, or mounted to a wall. It is suitable for indoor or outdoor use. When choosing a mounting location, please be advised: • Do not use in wet locations. If using outside, position camera in a sheltered location. • DO NOT position the camera so that it points directly into the sun or any bright light, as this may cause damage to the camera.
adapter outside or run the cord through walls. If you need to extend the AC adapter cable, 15 ft. extensions are available by contacting Customer Service at 800-654-8483. If using the optional rechargeable NiMH battery (sold separately), the operational time is up to 5 hours, depending on usage. • The Camera has an unobstructed wireless transmission range up to 200 ft. from the receiver. Transmission distance indoors is reduced due to interior walls, wiring, household fixtures and metal plumbing.
light, color will return to the images. MULTI-CAMERA SYSTEMS The 45233 Wireless Color Camera is designed as an add-on camera to work with the following GE Color and B/W Wireless camera systems - 45234, 45235, 45236. These systems can accept a maximum of two cameras. Channel Selection Each wireless camera must be assigned to a specific channel (1 or 2) through the use of a slide switch located on the underside of the camera housing.
The receiver or monitor must be set to the 1/2 position in order to view both cameras alternately (see receiver or monitor manuals for specific channel selection requirements). INSTALLATION Desktop Mount: SE IT NS IVI TY MAX 1. Place camera in desired location on a flat surface. 2. Set Channel switch on camera to 1 or 2. Set receiver or monitor to same channel. 3. Adjust antenna and camera angle as needed for the clearest picture.
3. Set Channel switch on camera to 1 or 2. Slide the camera onto the locking pins of the mounting plate. 4. Adjust antenna and camera angle as needed for the clearest picture. OPTIONAL WIRELESS BATTERY PACK AVAILABLE (SOLD SEPARATELY) Rechargeable NiMH Battery is available for use with the 45233 Wireless Color Camera. This 850mAh battery will power the 45233 Camera for approximately 5 hours on a single charge. To order this battery, please visit www.jascoproducts.
TROUBLE SHOOTING If you are having trouble operating this product, please consult the guide below. If you have any questions or feel the camera system is not operating correctly, or you simply need additional information, please visit our web site www.jascoproducts.com, or contact our Customer Service Group 1-800-654-8483. SYMPTOM No camera picture 1. Check all connectors. Make sure camera(s) and receiver are powered ON. 2. Ensure camera(s) and receiver are set to correct channel(s). 3.
Interference on camera picture 1. Make sure each camera (transmitter) is within range, and that no large obstructions are blocking the signal. 2. Try repositioning the camera, monitor (receiver) or both to improve the reception quality. 3. If a camera is positioned close to the monitor, point antenna away from the receiver. 4. Reposition other nearby equipment transmitting on the 900MHz frequency. 5. Adjust the antenna for the camera, monitor or both to obtain best image. Audio problems 1.
High-Speed Electronic Shutter.................1/60 - 1/15,000 sec Image Sensor ........................................................................1/3” CMOS Min. Illumination ..................0 lux up to 3 ft, 0.5 lux up to 10 ft Voltage................................................................................................. 9VDC Current Consumption .......................................................80~150mA Overall Size ................................................... 2.35”W x2.
WARNING Risk of fire and shock • Only use the supplied cUL listed AC to DC adapter. • The supplied adapter is for indoor use only. • Do not run the camera cable inside walls; when securing the cable, do not cut or puncture • Do not use in wet locations FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
