MONOGRAM 36" BUILT-IN SIDE-BY-SIDE REFRIGERATOR ZISB360DK
Product Specification Revised 10/16
STANDARD
INSTALLATION

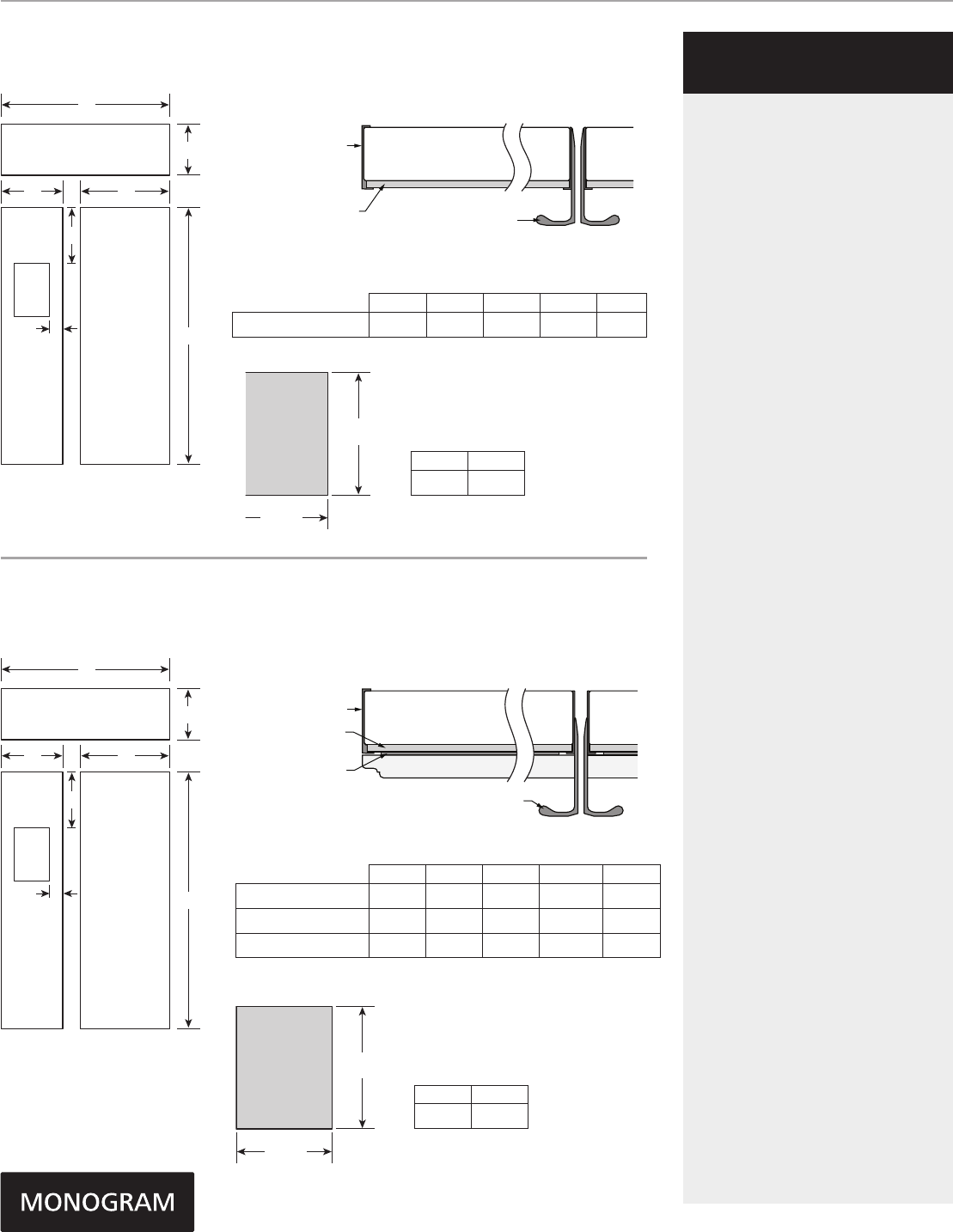

PANEL ASSEMBLY CROSS SECTION
Door
1/4" Backer Panel
.10" Spacer Panel
Supplied Handles
Trim
3/4" Overlay Panel
3/4" OVERLAY PANEL DIMENSIONS
1/4" FRAMED PANEL DIMENSIONS
Door
1/4" Framed Panel
Supplied Handles
Trim
PANEL ASSEMBLY CROSS SECTION
Grille Panel
Freezer
Panel
Dispenser
Cutout
Fresh
Food
Panel
A
B
C
F
G
D E
Grille Panel
Freezer
Panel
Dispenser
Cutout
Fresh
Food
Panel
A
B
C
F
G
D E
DISPENSER CUTOUT
POSITION
PANEL DIMENSIONS
Dispenser
Cutout
9 5/8"
(24.4)
15 3/8"
(39.1)
.25" + .10" + .75" = 1.10" Total Panel Thickness
PANEL DIMENSIONS
* DISPENSER CUTOUT
POSITION
* Cut the dispenser opening after
the backer, spacer and overlay
panels have been assembled.
Dispenser
Cutout
9 5/8"
(24.4)
15 3/8"
(39.1)
F G
17 13/16" 3 1/8"
A B C D E
1/4" Framed Panel 33 7/8" 9" 68 3/8" 14 9/16" 18 9/16"
F G
17 15/16" 3 1/4"
A B C D E
1/4" Backer Panel 33 7/8" 9" 68 3/8" 14 9/16" 18 9/16"
.10" Spacer Panel 33" 8 3/8" 67" 13 1/4" 17 1/4"
3/4" Overlay Panel 34 1/8" 9 1/4" 68 5/8" 14 13/16" 18 13/16"
NOTES
3/4" Overlay Panels:
For 3/4" thick custom panels
ordered from your cabinet
maker; the decorative panels
slide into the trim.
The overlay panel must be
secured to a 1/4"-thick backer
panel which slides into the trim.
A spacer panel 0.10" thick must
be placed between the overlay
and backer panels.
Center each panel over the
other. Assemble the panels with
glue and screws. Screws must
be countersunk into the backer
panel.
NOTE: Left-to-right oset is not
always equal to top-to-bottom
oset.
Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer drawer panel – 53 lbs.
• Grille panel – 18 lbs
Door Handles:
The supplied handles can be
adjusted to accommodate
both framed or overlay panels.
Custom handles of your choice,
supplied by your cabinet maker,
can also be installed.
ZKHPSS1: Professional tubular
stainless steel handle designed
to fit 3/4" overlay panels.
ZKHSS2: European tubular
stainless steel handle designed
to fit 3/4" overlay panels.
Kits include one handle. Order 2
kits for side-by-side refrigerators
from your Monogram supplier.
Trimmed refrigerators are
designed to be customized with
decorative panels. Field-installed
custom door and grille panels
are required.
1/4" Framed Panels:
For 1/4" thick custom panels
ordered from your cabinet
maker; the decorative panels
slide into the trim.
Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer drawer panel – 53 lbs.
• Grille panel – 18 lbs
