Spec sheet

MONOGRAM 36" BUILT-IN SIDE-BY-SIDE REFRIGERATOR ZISB360DK
Product Specification Revised 10/16

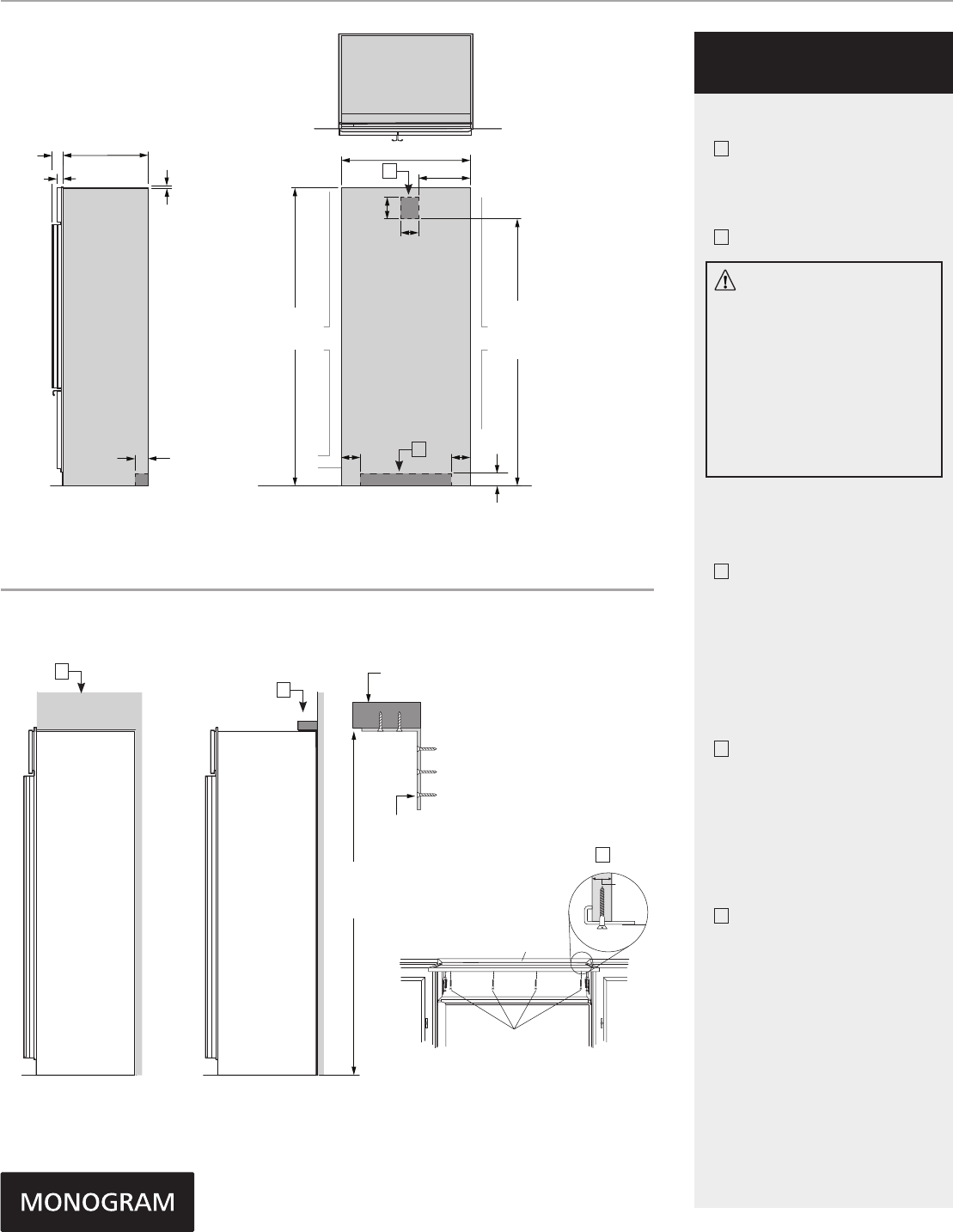

STANDARD
INSTALLATION
STANDARD INSTALLATION
ZISB360DH
24" (61)
1 9/16"
(3.97)
3 1/8"
(7.93)
35 1/2" (90.2)
7/16" (1.1)
Trim overlap
3 1/2"
(8.9)
3 1/2"
(8.9)
75"
(190.5 )
From floor
to bottom
of electrical
area
*84 1/2"
(214.6)
*Trim will overlap
additional 7/16"
E
SIDE VIEW
FRONT VIEW
TOP VIEW
5"
(12.7)
5"
(12.7)
WATERW
6"
(15.24)
20" (50.8)
5"
(12.7)
STANDARD INSTALLATION
ANTI-TIP BRACKET
FRONT VIEW SIDE VIEW
W
24" (61.0)
1 1/2"
(3.8)
3 1/4"
(8.3)
7/16" (1.1)
Trim overlap
3 1/2"
(8.9)
E
WATER
47 1/2" (120.7)
20" (50.8)
*83 1/2" min
*84 1/2" max
(212.1-214.6)
*Trim will overlap
additional 7/16"
3 1/2"
(8.9)
75"
(190.5 )
From floor
to bottom
of electrical
area
6"
(15.2)
5"
(12.7)
5"
(12.7)
5"
(12.7)
ZISB480DX
SIDE VIEW INSTALLED
UNDER SOFFIT
SOFFIT
SIDE VIEW INSTALLED
WITH WOODEN WALL STUDS
AND NO SOFFIT
*84"
(213.4)
*Or installation
height from floor
2" x 4"
Cut to 35" Length
Screws mounted
into vertical wall
studs
FRONT VIEW INSTALLED
WITH METAL WALL STUDS
AND NO SOFFIT
Top Case Trim
3/4"
Min.
Side View Top
Case Trim
Install Screws
Through Trim and Into
3/4" Min. Wood Brace
A
B
D
C
E
The refrigerator will project forward, slightly beyond adjacent cabinetry.
NOTES
A
Mounting the junction box in
this location will also allow
for front accessibility through
access panel.
B
Water supply area.
WARNING:
The refrigerator is top heavy
and must be secured to prevent
the possibility of tipping forward.
Failure to do so may result in
death or serious injury.
The information below is for
cabinet design only. When
installing the anti-tip system you
must use the product installation
instructions.
Determine your installation
construction and required
anti-tip configuration:
C
Installed Under Sot
After installing unit into
installation opening, raise grille
panel and screw metal case
sides to adjacent cabinet. When
installed under a sot, the sot
cannot exceed 24" deep. The top
case trim overlaps the bottom of
the sot.
D
Wooden Wall Studs and No
Sot
• Cut a 2" x 4" block and secure
to brackets provided.
• Secure brackets to back wall
of opening at 84" or your
installation height from the
floor.
E
Metal Wall Studs and No Sot
This method requires securely
fastened cabinets on both sides
and a 3/4" minimum wood brace
above unit, with it’s front surface
24" from back wall.
• After installing unit into
opening, raise grille panel and
attach metal case top trim to
3/4" minimum wood brace.
• The brace spanning the
enclosure must be securely
fastened to cabinets on both
sides.
See Installation Instructions for
detailed instructions.
