Spec sheet

MONOGRAM 36" BUILT-IN SIDE-BY-SIDE REFRIGERATOR ZISB360DK
Product Specification Revised 10/16

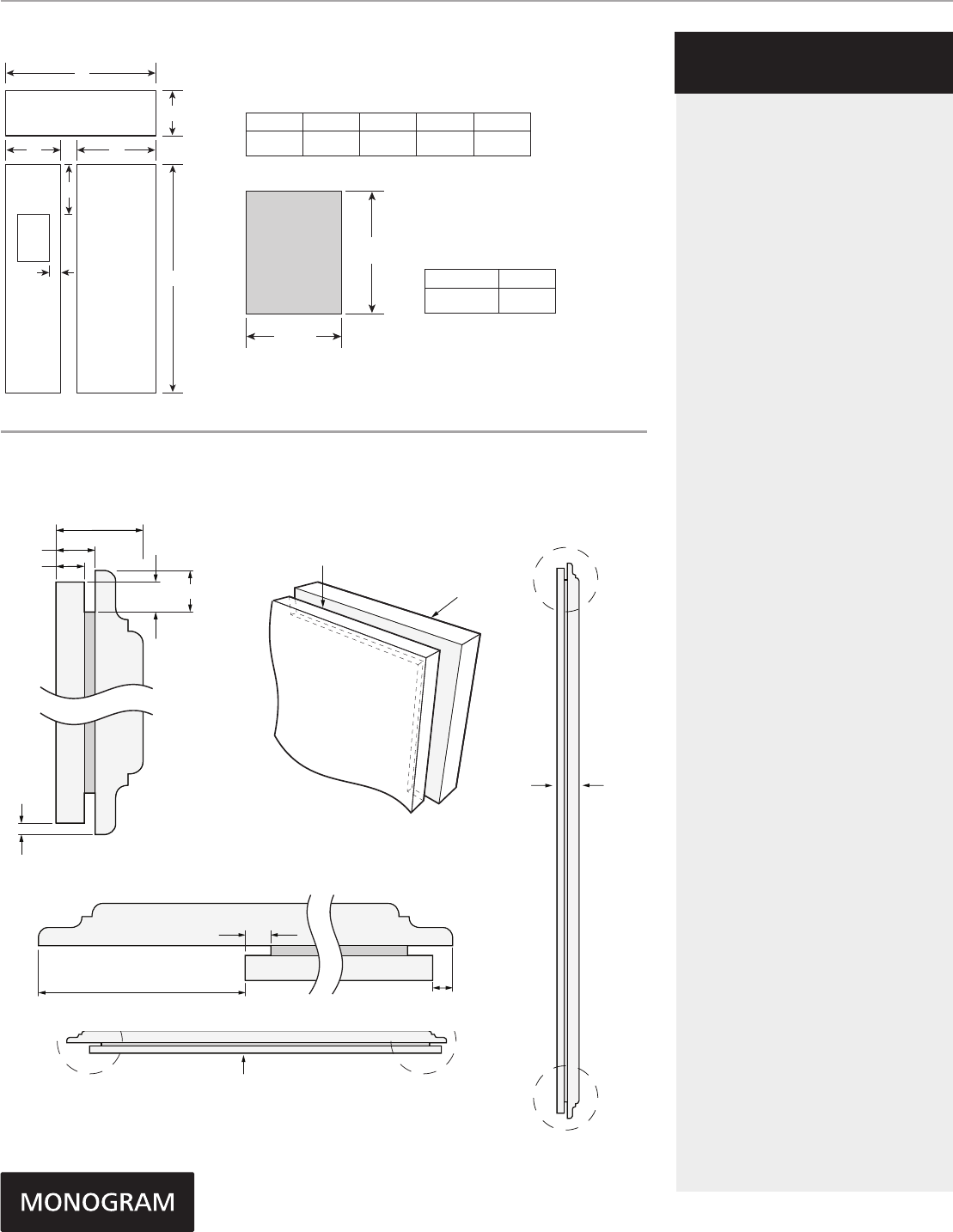

FLUSH INSET
INSTALLATION
A B C D E
38" 11 3/16" 68 5/8" 16 7/8" 20 7/8"
PANEL DIMENSIONS
FLUSH INSET 3/4" PANEL DIMENSIONS
Grille Panel
Freezer
Panel
Dispenser
Cutout
Fresh
Food
Panel
A
B
C
F
G
D E
F G
17 23/32" 3 3/8"
DISPENSER CUTOUT
POSITION
Dispenser
Cutout
9 5/8"
(24.4)
15 3/8"
(39.1)
3/4" RAISED DOOR PANEL ROUTING
TOP
FrontBack
BOTTOM
3/4" PANEL SIDE VIEW
(AFTER ROUTING)
Front
NOTE: Routed areas should be
finished as they may be visible
when assembled.
CORNER VIEW SHOWING
“PICTURE FRAME” ROUTING
Back
HINGE
SIDE
HANDLE
SIDE
Front
Back
3/4" PANEL BOTTOM VIEW
(AFTER ROUTING)
3/4"
11/32"
1/4"
3/16"
1/4"
7/16"
DETAIL TOP
DETAIL BOTTOM
2 1/16"
3/16"
ROUTER DEPTH 1/4"
DETAIL HINGE
SIDE
DETAIL HANDLE
SIDE
NOTES
Trimmed refrigerators are designed
to be customized with decorative
panels. Field-installed 1/2" or 3/4"
custom door and grille panels are
required. For 3/4" raised door and
grille panels, routing is required.
The router depth is 1/4" all the
way around the panel’s backs.
Additional panel width reductions
are required per the diagrams
shown. This will create “picture
frame” routing allowing the panels
to slide into the attached door and
grille trims.
MAXIMUM TOTAL PANEL WEIGHT:
• Fresh food door panels – 75 lbs.
• Freezer drawer panel – 53 lbs.
• Grille panel – 18 lbs.
DOOR HANDLES
Door handle not included. A
custom handle supplied by your
cabinet maker may be used.
ZKHPSS1: Professional tubular
stainless steel handle designed to
fit 3/4" panels. Kit includes one
handle – 30 1/2" long.
ZKHSS2: European tubular stainless
steel handle designed to fit
3/4" panels. Kit includes one
handle – 64 1/4" long.
