GFK-1115 Chapter 3 Quick Start 3 - 29
3
Section 9 Defining the Project Variables
All variables used in the project (symbolic variable names) must be connected to specific
addresses in the PLC CPU.
In order to define these connections, access the connection list by selecting the Connection option
from the F2 Edit pull-down menu or by pressing Ctrl + C.

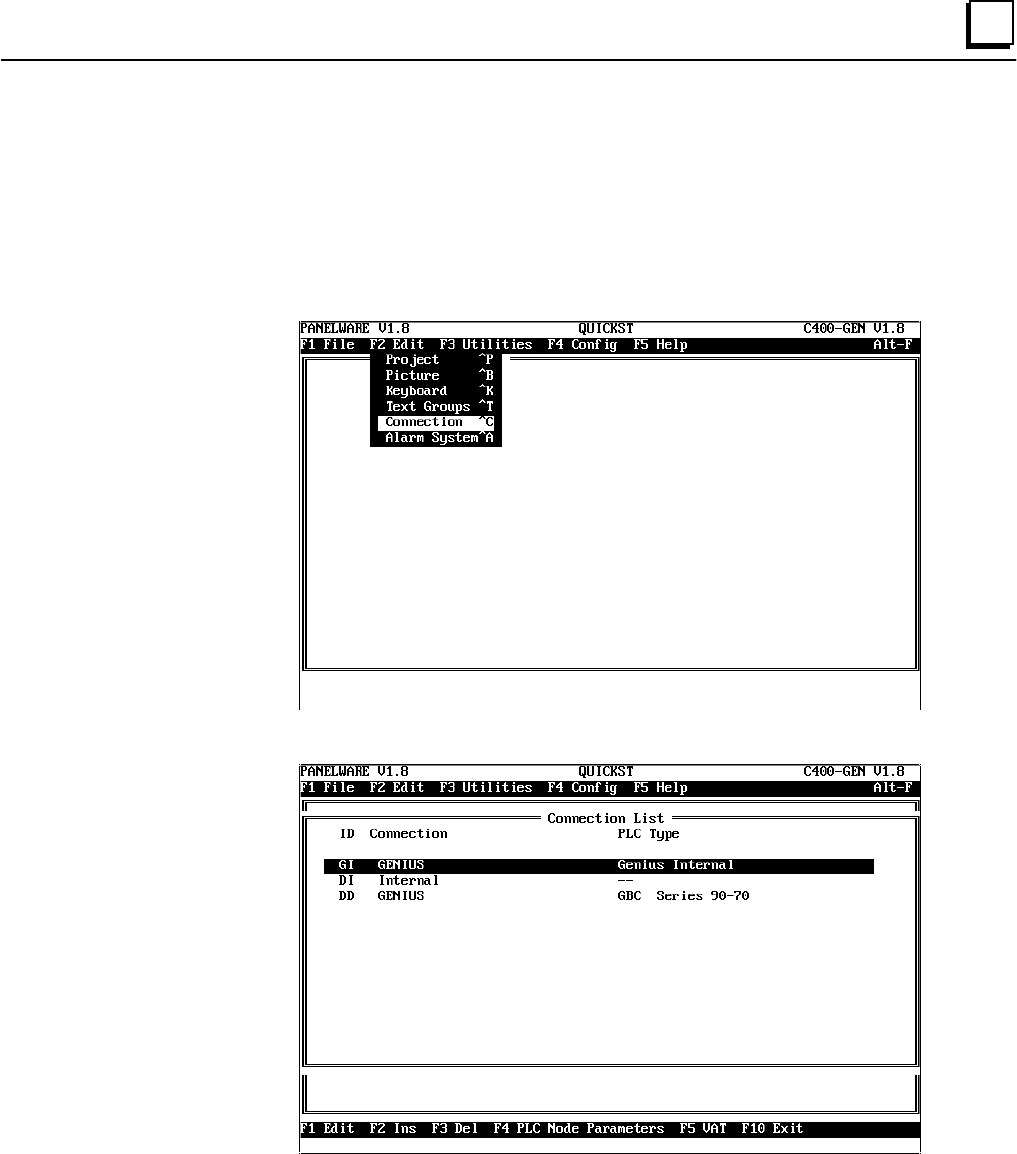

The Connection List window shown below is opened:
