GFK-1115 Chapter 6 Demo Project 6 - 31
6
5. Insert an output field that will display the value that is entered in the first input field, into the
picture. This is done as follows:
● Position the cursor at (11,6).
● Press F2 Field.
● Select the Output Field from the Field Class window and press the ↵↵ key.

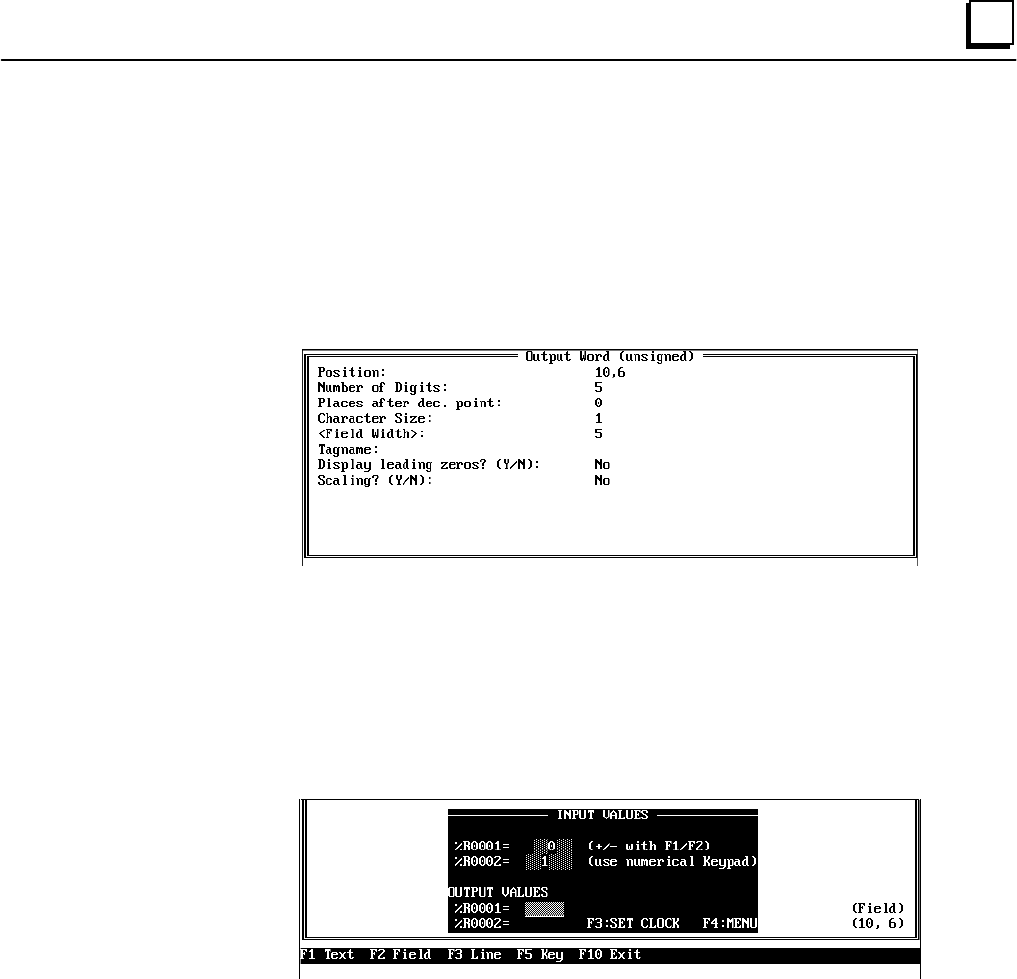

● Select the Output Word (unsigned) from Select Field Type, which opens the window in
which the parameters for the selected input field can be entered/changed:
● Enter
OUT_WORD
as the Destination Tagname and confirm the entry by pressing ↵↵. The
declaration of this address is done collectively for all variables in the connection editor
(see “Editing the Connections” in this chapter).
● To display preceding zeros, move the cursor to the Display leading zeros line and enter
Y
followed by ↵↵ to activate the leading zeros display.
● End the definition with F4 Accept. The Output Word (unsigned) window is closed. The
output field is displayed again:
