6 - 18 PANELWARE MMI Application Manual for GE Fanuc Genius Protocol - June 1995 GFK-1115
6
Creating a New Project
A new project is created by selecting the New Project option from the File menu. Before you
execute this function you should know exactly what Panel components will be used .
Carry out the following steps:
■ Select the New Project option from the File menu. The New Project window appears on the
screen.
■ Enter the project name
DEMO_PRO
and confirm your entry by pressing ↵↵ (Enter), which will
also move the cursor to the next line.
■ Press ↵↵ again to open a selection window in which you can select the C400 Panel Controller.

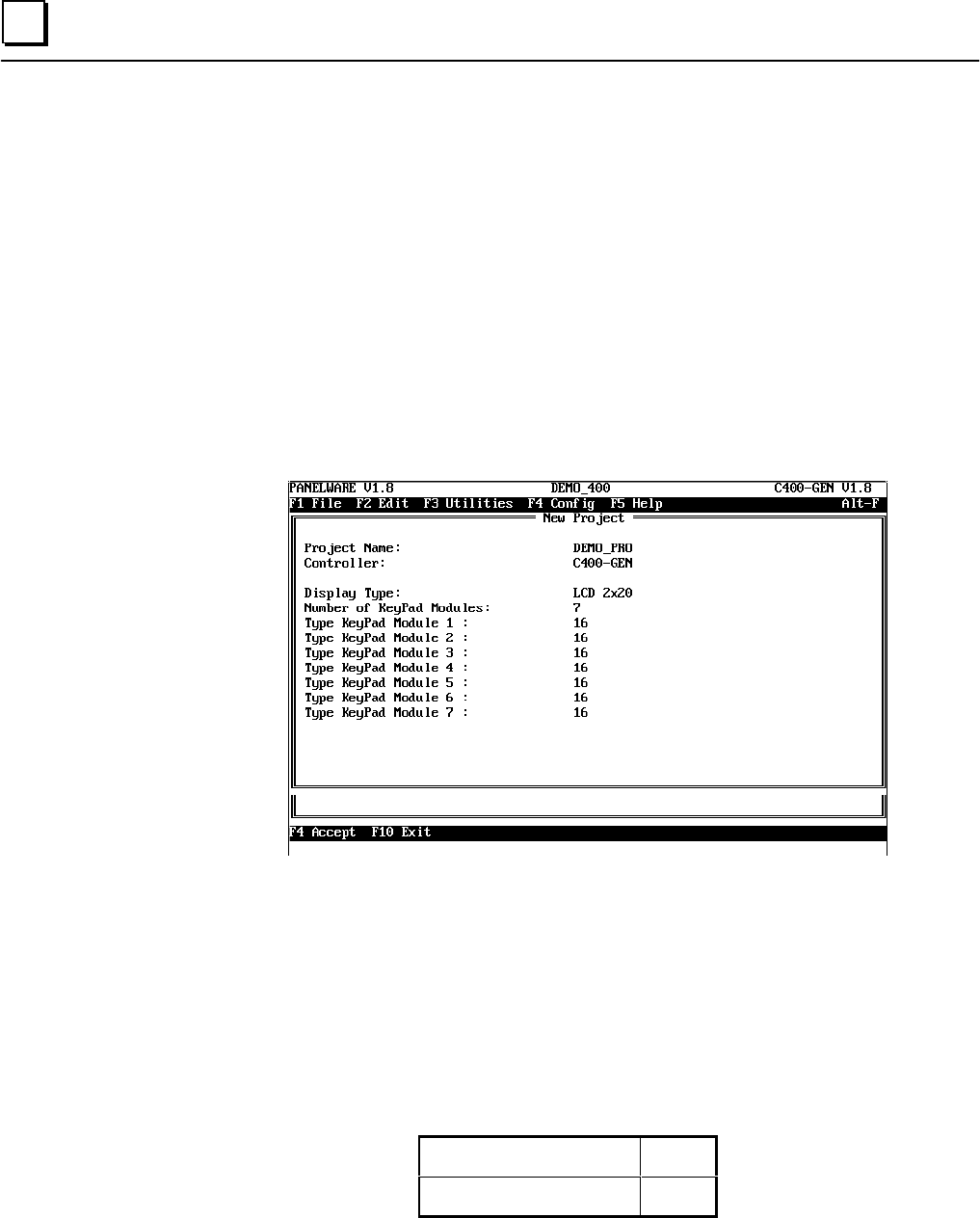

■ Press ↵↵. PCS displays the hardware definition:
■ Press ↵↵ in the Display Type line and another selection window appears in which the LCD
8x40 display module can be selected.
■ Now, enter the number of desired Keyblock modules (2). The entry must be confirmed with
↵↵. This also moves the cursor to the next line.
■ The cursor is now in the Type Keyblock Module 1 line. By pressing the ↵↵ key, a selection
window appears containing all of the possible types of Keyblocks. Select the desired Keyblock
module for the first position and confirm the entry with ↵↵.
■ Repeat step 7 until all Keyblock modules that you require are defined. In the demo project,
the following types are required for the first two Keyblock modules:
Type Keyblock Module 1 12+4
Type Keyblock Module 2 16
