GFK-1115 Chapter 6 Demo Project 6 - 5
6
Loading the Project
To load the DEMO project, select the Open Project option from the F1 File pull-down menu and
press the ↵↵ (Enter) key to access the selection window containing the list of current projects.
Highlight the desired DEMO project and press ↵↵ to select/open it.

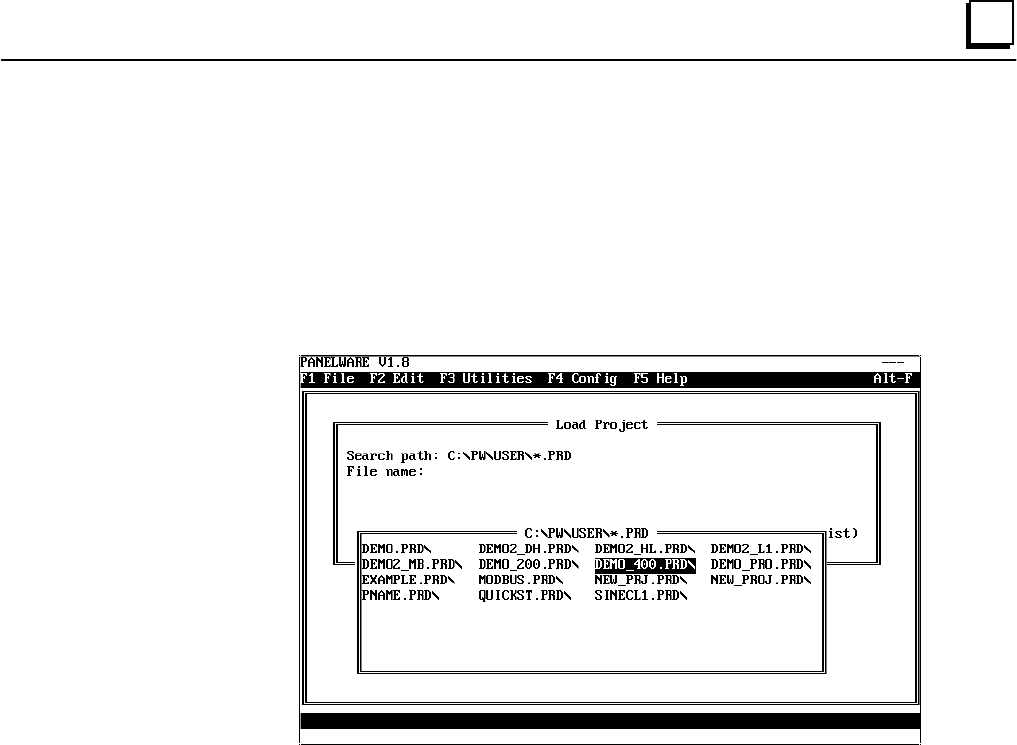

The cursor can be moved to the DEMO_400 project (Project for a PANELWARE Panel with a
C400 controller):
After the project selection has been confirmed by pressing the ↵↵ (Enter) key, the Edit Project
window appears on the screen. Close this window by pressing the F10 Exit key or the Esc key.
