FRAMING FOR WALL SLEEVE
Brick Veneer and Frame Construction
FASTENING WALL SLEEVE
Figure 1 Figure 2
MAIN STUD
JACK STUDS
HEADER – 4" x 4" OR 2 - 2" x 4" ON EDGE
16-1/4" MIN.
ADJUSTABLE FRAMING TO SECURE
THIS DIMENSION
42-1/4" MIN.
JACK STUD
CRIPPLE
FINISHED FLOOR
SUB-FLOOR
Note: Do not remove the stiener support from inside the wall sleeve until the chassis is to be installed.
MAIN STUDS
JACK STUD
HEADER
MOUNTING SCREW HOLE
LINTEL

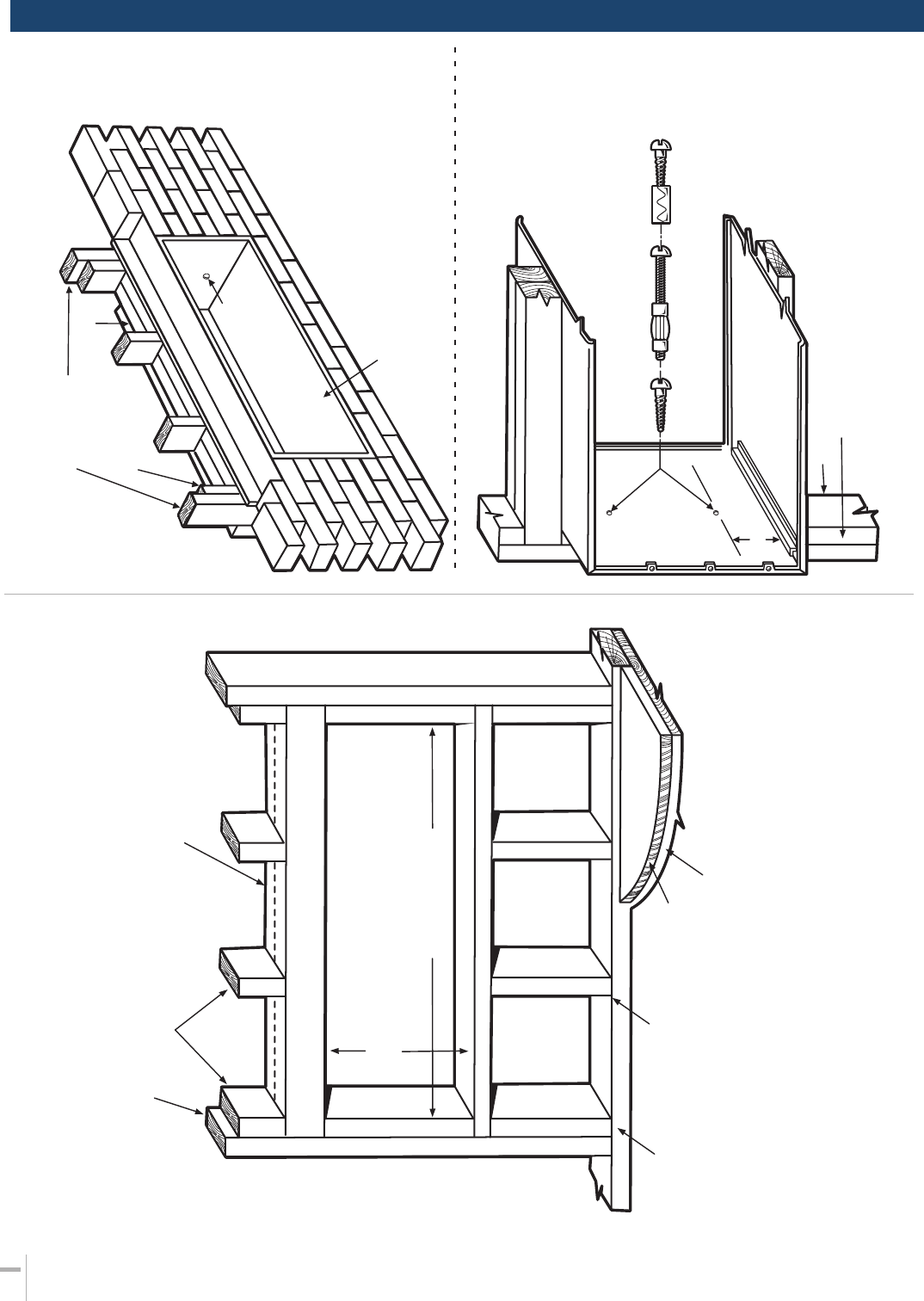

Framing detail for this construction is as shown in Figure 1. Note use of lintel under first course of brick above the Zoneline sleeve. Do not use the sleeve as a lintel. Mounting screw holes shown are to be made by the installer.
NO HOLES PERMITTED IN BOTTOM OF Sleeve (EXCEPTION -RAD10 DRAIN KIT)
Choice of attachment devices through both ends of sleeve or the top. Mounting screw holes and attachment devices by installer.
MAIN STUD
JACK STUD
2" MIN.
WOOD
SCREW
MOLLY
OR TOGGLE
BOLT
EXPANSION
ANCHOR
BOLT
NO HOLES PERMITTED IN BOTTOM OF Sleeve
(EXCEPTION - RAD10 DRAIN KIT)
†WORKS FOR ALL RAB71 OR RAB78B SERIES WALL SLEEVE
WALL SLEEVE INSTALLATION DATA (CONTINUED)
