User Manual

- 32 -
IDEAL 4810-95/EP • IDEAL 4850-95/EP • IDEAL 5221-95EP • IDEAL 6550-95EP


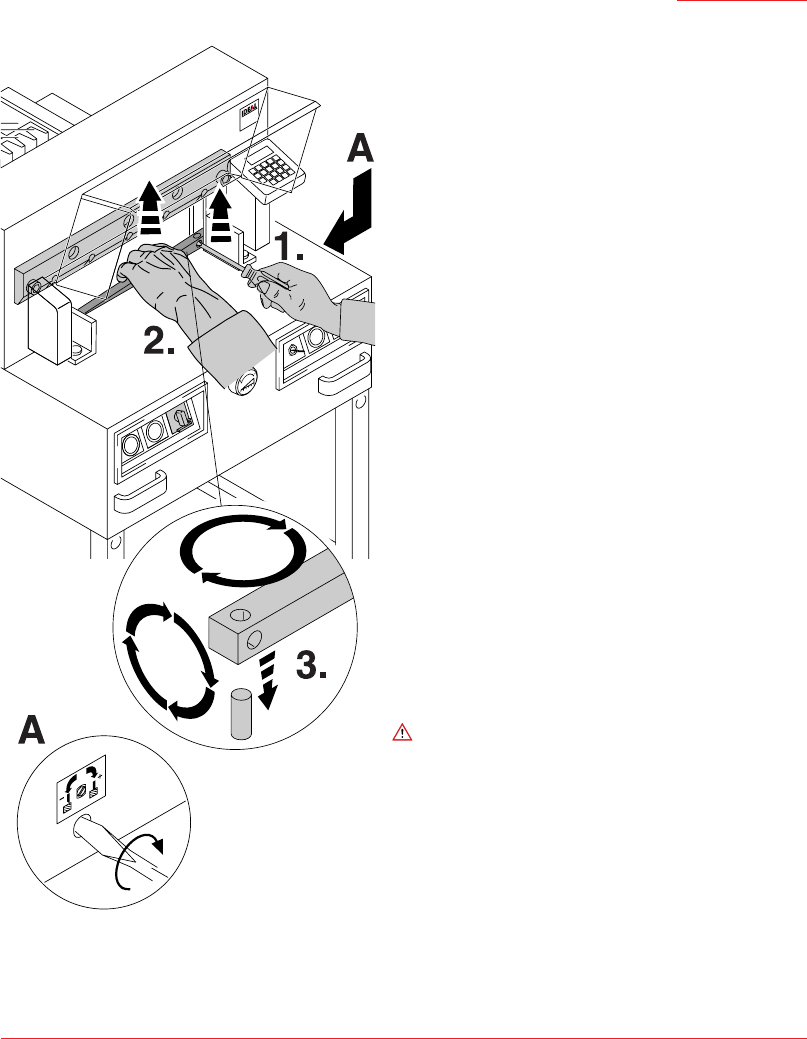

Take out the cutting stick with a small screw-
driver. If needed the cutting stick can be turned
or exchanged. (The cutting stick can be used
eight times).
Replacing the cutting stick (not the blade)
•
Turn the blade adjusting screw (A) to the left
until it stops.(Otherwise the first cut will be too
deep).
•
Remove the cutting stick according to top
picture.
•
Turn the cutting stick (the non-used side must
be near to the blade) and plug it into the
holding bolt.
Danger! Risk of injury!
Cutting test after replacing the cutting stick
(not the blade)
•
Insert the paper and release the cut.
•
If the last sheet of paper is not cut along the
entire length turn the blade adjusting screw
(A) ¼ turn to the right.
•
If the last sheet is still not completely cut
repeat this process until the last sheet is cut
along the entire length.
•
Blade and cutting stick replacement
•
