Programming
Only IDEAL 4810_95EP, IDEAL 4850-95EP,
IDEAL 5221-95EP, IDEAL 6550-95EP

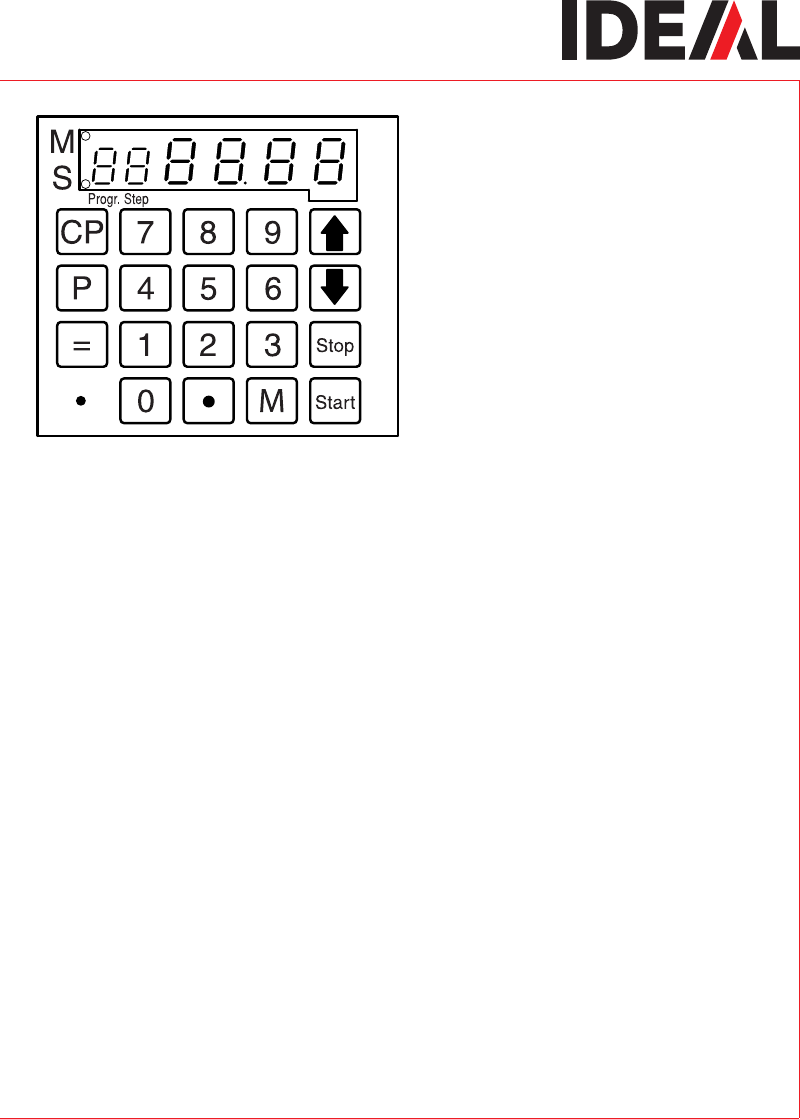

This control system enables you to store 9
programs with 9 programmable steps. One
step represents one measurement. After
entering the program numbers you are able to
change between several program steps with
the button
r
and
h
.
First figure on display = program number.
Second figure = program step.
Dimensions below 9 cm can only be
approached with the
S
button held pressed.
"
u" on the display the entered dimension is
too low.
"
o" on the display the entered dimension is
too high.
Each program step corresponds to one
dimension. The indicated program step can be
overwritten at any time. These programs
remain stored when the machine is off. Should
you change to another dimension unit all
programmed measurements are converted into
the new unit (cm or inch).
Entering a program
• Press
p
P appears on the display.
•
1
...
9
Enter program number 1...9.
(First figure on display = program number).
•
Enter dimension, or move the backgauge to
the desired measurement with the
hand-wheel.
•
g
Store the dimension next program step
appears.
If the hand-wheel
G
is used to approach the
cutting position press button
h
next program
step appears.
•
Enter the next dimension.
(Should an ejection be desired before this
cut push the
g
button and
r
button
simultaneously).
•
Should the entered program be required
immediately press
S
(program is closed).
Press
S
again (backgauge moves to the
dimension of the first program).
Or:
•
p
+
s
Escape the program mode.
Eject function program
•
Set the measurement push
g
button and
r
simultaneously. e appears shortly on the
display. The backgauge will advance and
eject the paper and finally return to the
position shown on the display.
•
