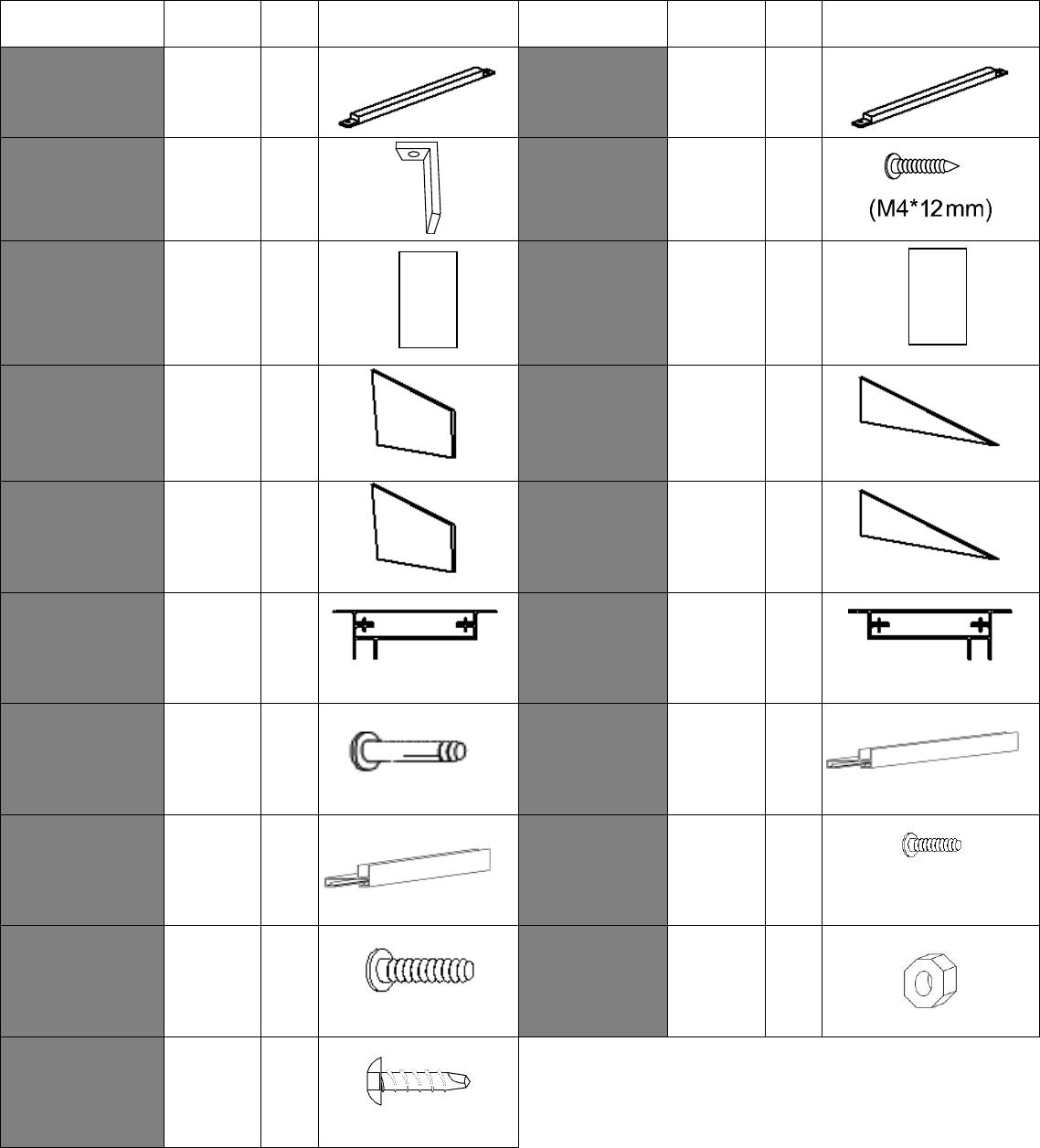

Replacement Part List

ZZZ-210.W1610-32.1207-18.GP.EN.SUN-PARTS.doc WEB VERSION SUN-HI 4
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
DESCRIPTION
PACKED
IN BOX
QTY
DRAWING
10-519-32
ROOF TOP
REINFORCE
Ll-3
5
2
10-520-32
ROOF TOP
REINFORCE
Mm-3
5
6
08-134-32
UPPER DOOR
RAIL END CAP
Nn
5
4
08-135-32
SCREW
Oo-3
5
8
12-149
(63 ¼ x 24 ½”)
LEFT+RIGHT
ROOF PANEL
Pp-3
1
4
12-150
(63 ¼ x 23”)
REGULAR
ROOF PANEL
Qq-3
1
12
12-151
LEFT BACK
GABLE PANEL
Rr-3
1
1
12-152
LEFT FRONT
GABLE PANEL
Ss-3
1
1
12-153
RIGHT BACK
GABLE PANEL
Tt-3
1
1
12-154
RIGHT FRONT
GABLE PANEL
Uu-3
1
1
10-527-32
LEFT WALL
GUIDE
Vv-3
4
1
10-528-32
RIGHT WALL
GUIDE
Ww-3
4
1
10-529-32
SCREW FOR
FIXING TO
WALL
Xx-3
5
26
10-530-32
REGULAR
TOP FILLER
Yy-3
5
6
10-531-32
END TOP
FILLER
Zz-3
5
2
12-047-32
BOLT
Ww
5
12
(M5*15mm)
12-160-12
BOLT
Hh-3
5
2
(M6*50mm)
12-161-12
NUT
FOR 12-160-12
Hh-3-2
5
4
13-045-32
SELF-TAPPING
SCREW
PQ-3
4
4
