CHAPTER 2: Checking Out Your Notebook
6

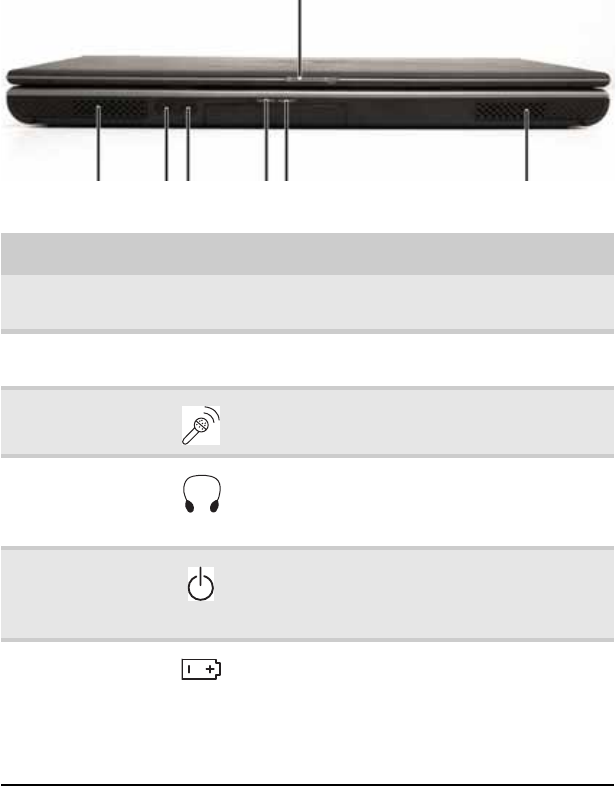

Front
Component Icon Description
LCD panel release
latch
Press to open the LCD panel.
Speakers Provide audio output when headphones or
amplified speakers are not plugged in.
Microphone jack Plug a microphone into this jack.
Headphone jack Plug amplified speakers or headphones into this
jack. The built-in speakers are turned off when
speakers or headphones are plugged into this
jack.
Power indicator
■
LED on - Notebook is on.
■
LED blinking - Notebook is in Sleep or Hybrid
Sleep mode.
■
LED off - Notebook is off.
Battery charge
indicator
■
LED blue - Battery is fully charged.
■
LED purple - Battery is charging.
■
LED blinking red - Battery charge is very low.
■
LED solid red - Battery is malfunctioning.
Important: This LED only lights up when your
notebook is connected to AC power or the
battery charge is very low.
Microphone
jack
Headphone
jack
Speaker Battery
charge
indicator
LCD panel release latch
SpeakerPower
indicator
