CONFIDENTIAL D-9129 Mini Central Transmitter Service Manual INSTRUCTION TO THE USER 1
CONFIDENTIAL This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a typical installation. This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

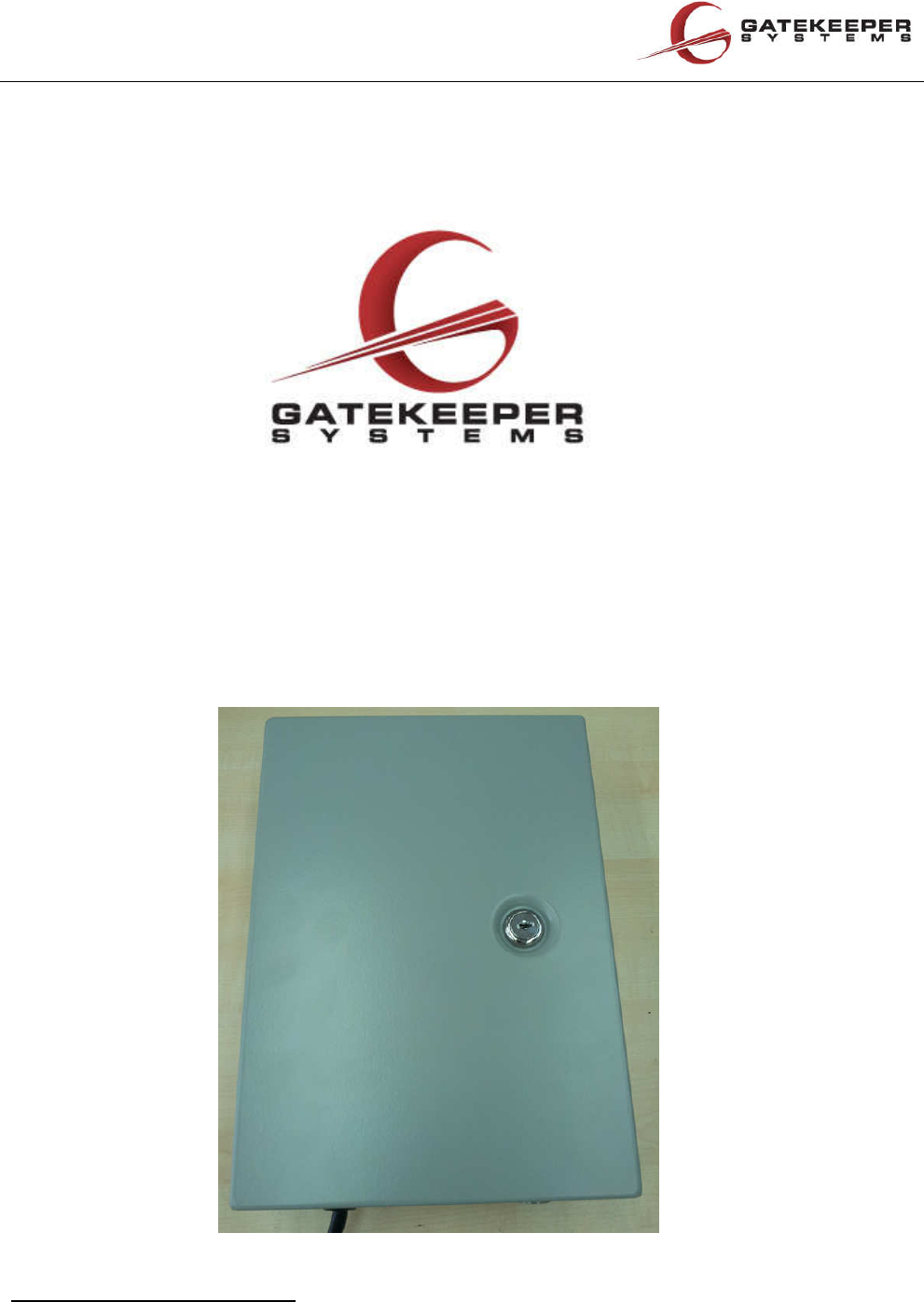

CONFIDENTIAL Mini Central Transmitter: The Mini Central Transmitter is located in an area that is secure, has adequate air flow, is out of harm’s way, and accessible for service. Typically, this area is found near the receiving area at the rear of the store. The Mini Central Transmitter sends the locking signal and unlocking signal through the perimeter antenna. Once installed and plugged directly in to a 85-264volt AC outlet or Universal Power Supply (UPS), the Central Transmitter rarely requires service.
CONFIDENTIAL SYSTEM COMPONENTS Perimeter Antenna The signal generated by the CentralTransmitter is carried around the designated store perimeter by a small, embedded cable known as the “Perimeter Antenna”. This antenna is embedded in a 1/4” wide by 1” deep saw cut around the parking lot which is sealed using a weatherproof sealant. The location of the perimeter antenna determines the boundary where carts will lock.
CONFIDENTIAL Contacting Gatekeeper Systems For more information about the Central Transmitter and troubleshooting, to order parts or report an issue, contact the Gatekeeper Systems Inc. regional Customer Support office nearest to your location. USA Gatekeeper Systems, Inc. 8 Studebaker Irvine, CA 92618 (888) 808-9433 Hong Kong Gatekeeper Systems (HK), Ltd. Unit 2318~2319, Level 23, Tower 1, Metroplaza NO. 223 Hing Fong Road, Kwai Fong, N.T., HONG KONG (852) 2413 3050 Canada Gatekeeper Systems Canada, Ltd.
