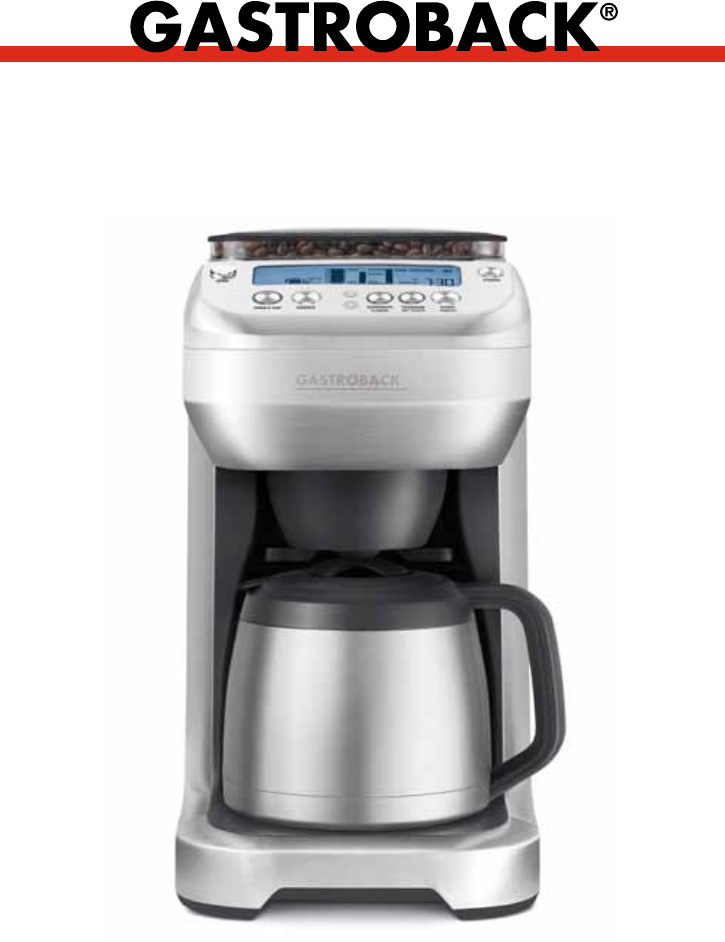

Operating Instructions Design Coffee Advanced - Grind & Brew - Art.-No.
Carefully read all provided instructions before you start running the appliance and pay attention to the warnings mentioned in these instructions. Contents Knowing the Design Coffee Advanced - Grind & Brew -..............................................36 Important safeguards.........................................................................................38 Important safeguards for all electrical appliance...................................................39 Technical specifications................
Dear customer! Congratulations on your purchase of the Design Coffee Advanced - Grind & Brew -, the new Gastroback´s coffee machine with integrated burr grinder. The burr grinder grinds your choice of beans just prior to brewing for maximum freshness, flavour and aroma. The grind is preset to the optimal size and can be turned off when using pre-ground coffee. The seven strength settings vary the amount of freshly ground coffee for a 'MILD', 'STRONG' or 'INTENSE' brew.
Knowing the Design Coffee Advanced - Grind & Brew 1 2 3 4 5 6 7 12 8 10 13 14 9 15 16 11 17 1 Bean Hopper Lid 2 250 g Bean Hopper 3 Bean Hopper Locking System seals the base of the bean hopper for easy removal, storage and transfer of coffee beans. 4 Cleaning Brush for convenient cleaning of the grinding burrs and coffee grinds chute. 5 Integrated Burr Grinder grinds whole beans just prior to brewing for maximum freshness, flavour and aroma.
Control panel 18 26 19 20 21 22 18 OPEN button · Press to open the swing-out door. 19 SINGLE CUP button · Press to brew a single cup of coffee. · Continue pressing to select between 9 brew sizes. 20 CARAFE button · Press to brew a carafe of coffee. · Continue pressing to select a specific carafe size between 2 cups (minimum) and 12 cups (maximum). 21 button · Use in conjunction with the STRENGTH | FLAVOUR button to increase the volume of the ‘Ready’ signal.
Important safeguards • Carefully read all instructions before operating the appliance for the first time and save for future reference. • Do not attempt to use this appliance for any other than the intended use, described in these instructions. Any other use, especially misuse, can cause severe injuries or damage by electric shock, heat or fire.
• Do not set a hot carafe on a wet, cold or heat sensitive surface. • Do not operate the grinder without the bean hopper lid in position. Keep fingers, hands, hair, clothing and utensils away from the bean hopper during operation. Avoid contact with moving parts. • Check the grinder for presence of foreign objects before using. • Use the grinder to grind roasted coffee beans only. Grinding other substances, such as nuts, spices or unroasted beans may dull the burr and cause poor grinding or injury.
• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice. CAUTION We recommend using cold, filtered water.
Initial set up 1. Install the Bean Hopper Position the hopper onto the machine. Turn the locking knob clockwise in the direction of the LOCK arrow until it clicks. Fill the hopper with fresh beans. We recommend always keeping the hopper full (250g maximum) to ensure there are sufficient beans. However, never overpack the hopper as this may result in the grinder jamming. Replace the hopper lid.
Close the coffee basket lid. Press the OPEN button to open the swing-out door. Attach the coffee basket to the swing-out door by ensuring the hinge area of the coffee basket is firmly seated in its most downward position on the two door hooks. Close the door until it clicks shut. CLICK NOTE: The safety interlock system will prevent operation if the coffee basket is not in place, if it is not firmly seated on the two door hooks, or if the swing-out door is not closed.
Note: Never fill the water tank once the coffee machine has started a brewing cycle. This will affect the volume dispensed into the carafe. 2. Pre-Warm the Carafe A warm carafe will help maintain the coffee’s optimal temperature and keep coffee hotter for longer. Remove the carafe lid by turning counter-clockwise then lifting upwards. Fill the carafe with hot water for about 30 seconds then discard the water.
When using the machine for the first time, we recommend selecting the ‘PRE-GROUND’ coffee setting, however omitting the addition of pre-ground coffee. This will flush the machine and remove any dust particles or residues from the manufacturing process. 5. Start the Brew Cycle Press the START | CANCEL button. The grinder will commence grinding the correct amount of coffee for the selected brew size and strength. If the ‘PRE-GROUND’ coffee setting has been selected, the grinder will be disabled.
8. Pour and Enjoy Ensure the carafe lid is securely locked in position. There is no need to turn or adjust the lid before pouring. The lid automatically opens when pouring and closes when not to keep coffee hot. CAUTION Hot steam may rise when pouring. The bottom of the carafe is hot to touch for several minutes after brewing. Use caution and ensure not to set the carafe on a heat sensitive surface.
2. Pre-Warm the Cup or Travel Mug A warm cup will help maintain the coffee’s optimal temperature and keep coffee hotter for longer. Fill the cup with hot water for about 30 seconds then discard the water. Place the cup into position under the drip stop outlet. TIP: For taller cups and travel mugs, remove the drip tray at the base of the machine. Press the OPEN button to open the swing-out door. Insert the cup/mug into the drip tray cavity before closing the swing-out door.
The amounts above are approximate only. Actual amounts may vary due to the type of filter used, the coffee bean size, roast, blend and freshness, or amount and type of pre-ground coffee used. 4. Select the Brew Strength or ‘PRE-GROUND’ Coffee Setting Press the STRENGTH | FLAVOUR button. The LCD screen will flash the current strength setting and the and buttons will illuminate and flash.
7. Empty the Coffee Basket Once the brewing cycle is complete, the ready signal will sound and a winding noise will be heard. This is normal. The LCD screen will flash ‘EMPTY COFFEE FILTER’ as a reminder to remove the coffee basket and discard the used grinds. Wash the coffee basket, taking particular care to rinse the chute area. Then dry the coffee basket and chute area thoroughly. We also recommend checking the coffee grinds chute disc for any build-up of coffee grinds.
PROGRAMMING AUTO-START (OPTIONAL) The Auto-Start feature allows you to program the specific time when the coffee machine will automatically turn on and start the preheating and grinding cycle. 1. Ensure the clock is set. 2. Press the PROGRAM button until the LCD screen displays ‘START AT’. Once this appears, press and hold the PROGRAM button until the LCD screen displays a flashing hour. 3. Use the and buttons to select the desired hour. 4. Press the PROGRAM button.
CHANGING THE ‘READY’ SIGNAL VOLUME The volume of the ‘Ready’ signal can be changed to suit your preference. There are 3 options: HIGH LOW MUTE Press and hold the STRENGTH | FLAVOUR button until the LCD screen flashes one of the or button to select the sound icons pictured above. While the icon flashes, use the desired volume. The volume is selected once the icon stops flashing. The selected volume will main displayed on the LCD screen.
Longlife-Filter leaving sediment in the cup or carafe. The resulting coffee will be over extracted, too dark and bitter. If the grind is too coarse the water will flow through the coffee too quickly. This will result in an under-extracted coffee lacking in flavour. • Always use ground coffee suitable for use with a drip filter coffee machine. Never use espresso grind as the finer grind size may cause the coffee basket to overflow. General Tips • Pre-heat the carafe or cup for best results.
CAUTION The coffee basket, gold tone or paper filter may still be very hot after brewing. Use caution and allow to cool before removing. Cleaning the Carafe After each use, empty the carafe. Do not let brewed coffee stand overnight as this can cause the carafe to stain. Rinse the carafe and carafe lid under running water. For a deeper clean, we recommend regularly washing the carafe in warm, soapy water with a soft bristled brush.
6. Remove the locking button of the upper burr by turning the handle clockwise. LE ASE LOCK RE 7. Using the provided cleaning brush, thoroughly remove any build-up of coffee grinds that have formed around the grinding burrs and coffee grinds chute. Ensure the grinds catcher is in place to catch the loose grinds, then remove and empty the catcher. CLEAN THE GRINDING BURRS CLEAN THE COFFEE GRINDS CHUTE 8.
Cleaning the Outer Housing The outer housing and LCD screen can be cleaned with a soft, damp cloth. Apply cleanser to the cloth and not the LCD surface. Polish with a soft, dry cloth. Cleaning and drying with dry paper towels or abrasive cloths and cleaners may scratch the surface. Removing Calcium Build-Up Your coffee machine may experience build-up from calcium and minerals contained in your water. This ‘scale’ or mineral build-up will affect the machine’s performance and coffee quality.
• Once the cycle is complete, discard the water from the carafe. For best results, repeat this process. 3. Rinse the Machine Follow the de-scaling process (Step 2) with two full tanks of water or until the vinegar is gone. The machine is now ready to use. Note: You may choose to use a domestic de-scaling agent instead of vinegar and water. Look for one that is designed for use with drip coffee machines. Follow the de-scaler to water proportions on the de-scaler packaging, however follow the above procedure.
TROUBLESHOOTING Problem POSSIBLE CAUSES WHAT TO DO ‘LOCK BEAN HOPPER’ on LCD screen Hopper not locked in place. Turn the locking knob clockwise in the direction of the LOCK arrow until it clicks. Unable to lock bean hopper Coffee beans obstructing bean hopper locking device. Remove bean hopper. Clear coffee beans from the grinding chamber and around the upper burr. Try re-locking the bean hopper. ‘FILL TANK’ on LCD screen Water tank is empty. Press open the flip-top water tank lid.
Problem POSSIBLE CAUSES WHAT TO DO Coffee basket overflows The coffee basket is clogged. This can occur for a number of reasons: • If using pre-ground coffee, ensure it is a drip coffee grind and not too fine. Never use Espresso grind. • Check that the coffee basket is lined with only one paper filter. • Check that either the Longlife-Filter or the paper filter is used. Do not use both together. • Check that the Longlife-Filter mesh is clear and unclogged. • Clean the coffee grinds chute.
Problem POSSIBLE CAUSES WHAT TO DO Coffee not strong enough / too strong Strength setting is incorrect. Check the selected strength setting displayed on the LCD screen. To change the strength setting, refer to ‘Select the Brew Strength or ‘PRE-GROUND’ Coffee Setting’. Coffee not hot enough A pre-heated coffee basket, carafe or cup will help maintain the coffee’s optimal temperature and keep coffee hotter for longer. Fill with hot water for about 30 seconds then discard the water.
Problem POSSIBLE CAUSES I can only select 9 cups ‘INTENSE’ strength setting selected. The To brew 12 cups, select the ‘STRONG’ maximum number of cups that can be strength setting. brewed at the maximum strength is 9 cups. My cup does not fit under the drip stop outlet. The maximum cup or travel mug imensions are approx 18cm height, 7cm diameter. I regularly switch beans. WHAT TO DO Remove the drip tray at the base of the machine. Press the OPEN button to open the swing-out door.
Problem POSSIBLE CAUSES Brewing cycle finishes before the ready signal If using the Longlife-Filter, this is normal. The total brewing time displayed on the LCD screen is calculated using paper filters as coffee passes through paper filters slower. ‘CLEAN COFFEE CHUTE’ on LCD screen Grinding burrs and coffee grinds chute need to be cleaned. We recommend doing this immediately to avoid clogging and overflowing of the coffee basket.
Storage Store the entire appliance (including the power base and operating instructions) on a clean and dry surface, where it may not tilt or fall and no other objects could fall on it and where it is safe from frost and inadmissible strain (mechanical or electric shock, heat) and where it is out of reach of young children. Do not place any hard or heavy objects on the appliance or any parts of it. Always switch off the kettle and unplug the power base, when the appliance is not in use.
