User Manual

GENERAL ASSEMBLY
Connecting & Disconnecting to Gas
Source
Familiarise yourself with the general information and
safety guidelines located at the front of this manual.
Check:
1. Gas cylinder is lled. A sloshing sound will be
heard when shaken.
2. The gas valve is in the ‘OFF’ position
Connecting
1. Ensure cylinder and gas valve is in its full
off position.
2. Check for any damage to either the cylinder
connection or the hose. NEVER attempt to use
damaged equipment.
3. When connecting the hose to the cylinder tighten
the nut to a positive stop by hand or spanner.
4. Open cylinder valve fully. If a leak can be heard
at either end of the hose turn cylinder off and
tighten joint. Wait 5 minutes before re-testing
and use a soapy water solution to check the
joint. If bubbles appear the connection will need
to be re-tightened.
General Positioning
1. Never place or position the ring burner on
combustible material. Only use on a
non-combustible surface.
2. Ensure the gas hose is straight and not knotted.
5

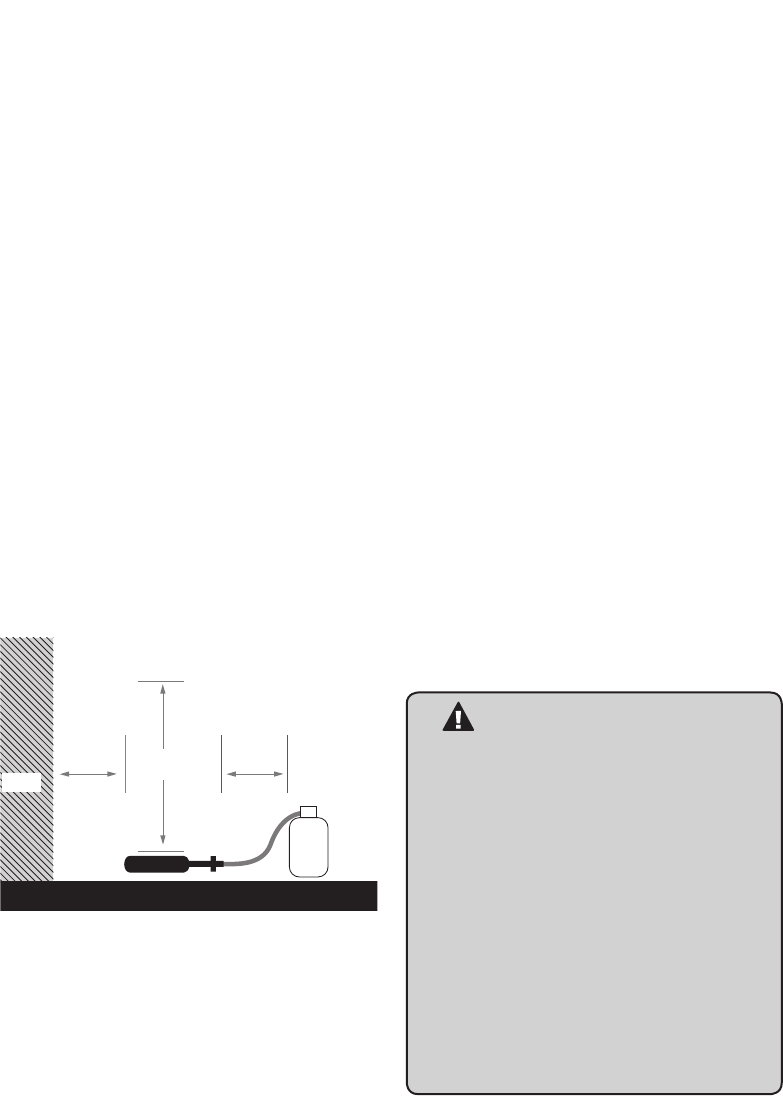

Wall
Ground - Non combustible surface and/or material.
min 500mm min 500mmmin 1200mm
IMPORTANT
Before connecting and disconnecting
appliance to gas source, make sure burner
controls are in ‘OFF’ position.
CAUTION: When the appliance is not in use,
the gas must be turned off at the cylinder.
Check that the seals between the appliance
and the gas cylinder are in place and in good
condition before connecting the gas cylinder.
Do not use this appliance if it has damaged or
worn seals.
• Beware of spiders and wasps.
Burner tube should be inspected and
cleaned periodically.
• This appliance must only be serviced by an
authorised person.
NOTE: ONLY USE ON A
NON-COMBUSTIBLE SURFACE
CARE & MAINTENANCE
As with all appliances, proper care and maintenance
will keep them in top operating condition and
prolong their life. Your new gas appliance is no
exception. By following these cleaning procedures
on a timely basis, your appliance will be kept clean
and working properly with minimum effort.
Spiders and small insects occasionally spin webs or
make nests in the burner tubes during warehousing
and transit. These webs can lead to a gas ow
obstruction which could result in a re in and around
the burner tubes. Cleaning with a soft brush before
use and at least every six months is recommended.
This type of re is known as ‘FLASH-BACK’ and can
cause serious damage to your appliance and create
an unsafe operating condition for the user. Although
an obstructed burner tube is not the only cause of
‘FLASH-BACK’ it is the most common cause and
frequent inspection and cleaning of the burner tubes
is necessary.
Flash-Back
If re occurs in and around the burner, immediately
turn off gas at its source and turn the burner control
to ‘OFF’, wait until the appliance has cooled, then
clean the burner tubes and burner ports.
Cleaning
After cooking, turn burner gas cylinder valve and
burner valve to ‘OFF’. Let the burner cool before
attempting to clean and store. After use brush
excess dust, dirt and debris from the burner
surface. Ensure all the burner ports are clean
and open before storing and re-using. Ensure the
bottoms of all cooking pots / pans are cleaned of
any dirt or discolouration after use.
