3.19 Lightning System Option Configuration
Follow this procedure to enable the lightning system option (WX-500) for the G1000 system if required.
1. With the loader card in the top slot of PFD1 and PFD1 in configuration mode, select the “System Upload”
page using the PFD1 small FMS knob.
2. Activate cursor and rotate the small FMS knob to display drop down menu. Highlight King Air - Options
and press ENT key on PFD1.
3. Rotate the small FMS knob to highlight “Lightning System Option”. Press ENT key on PFD1.
4. Verify the “Lightning System Option” is displayed in the “Item” window. Press “LOAD”.

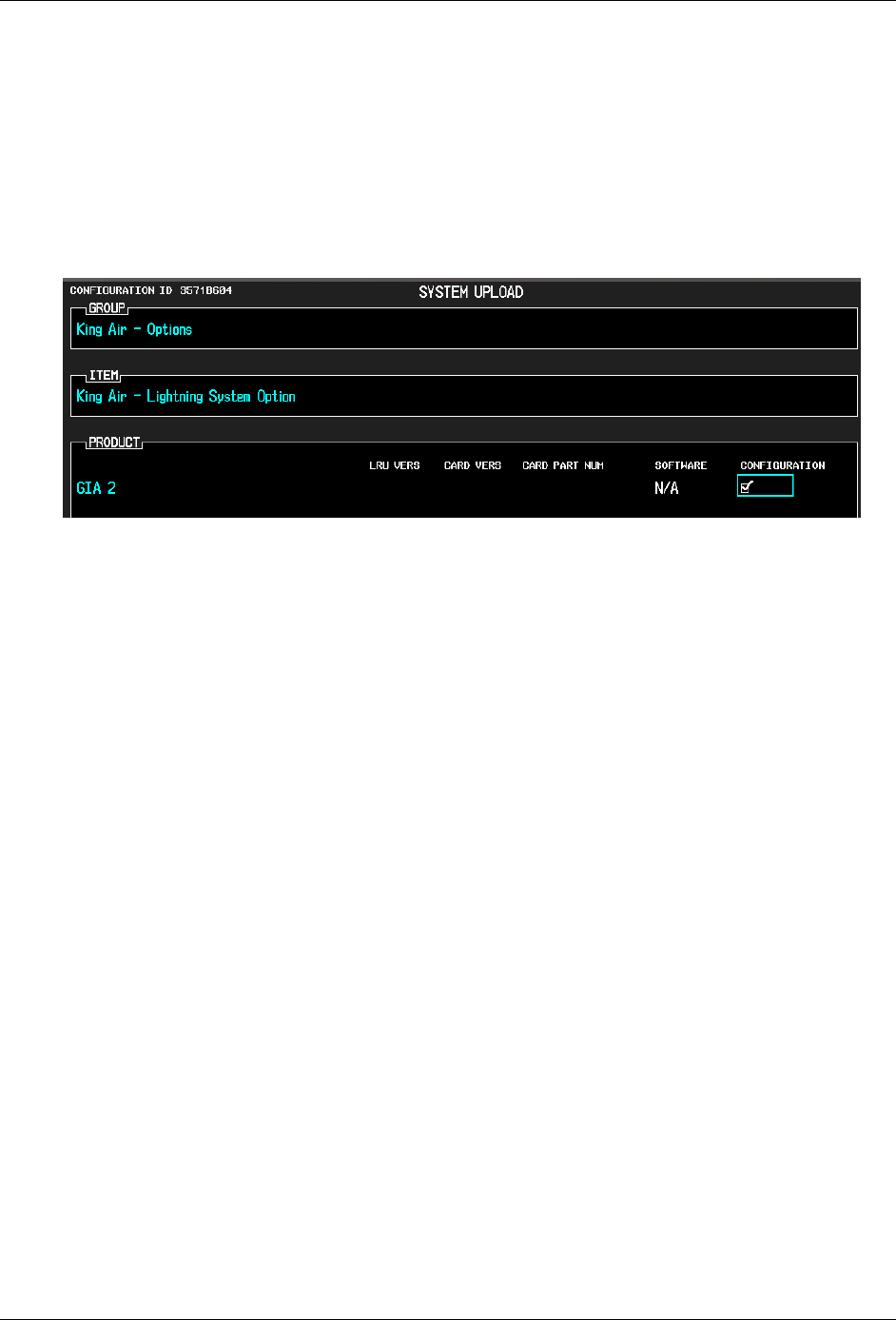

Figure 3-30, Lightning System Option Configuration
5. Monitor load progress. Verify software load completes without errors as indicated by the following:
• Green “PASS” in Configuration column for GIA 2.
• “Upload Complete………….COMPLETE” in the summary box.
6. Press ENT key on PFD1 to acknowledge upload complete.
7. Deactivate cursor.
