3.17 TAS/TCAS I Traffic System Option Configuration
Follow this procedure to enable a non-Garmin TAS/TCAS I traffic system function for the G1000 system if
required.
NOTE
The G1000 can only be configured for TIS or
TAS/TCAS I, but not both. Performing this
procedure will automatically disable the TIS function. Coordinate this configuration with section
7.14 “Non-Garmin Traffic System (TAS/TCAS I) Functional Check”.
1. With the loader card in the top slot of PFD1 and PFD1 in configuration mode, select the “System Upload”
page on PFD1 using the small FMS knob.
2. Activate cursor and rotate the small FMS knob to display drop down menu. Highlight King Air - Options
and press ENT key on PFD1.
3. Rotate the small FMS knob to highlight “Traffic System Option”. Press ENT key on PFD1.
4. Verify the “Traffic System Option” is displayed in the “Item” window. Press “LOAD”.

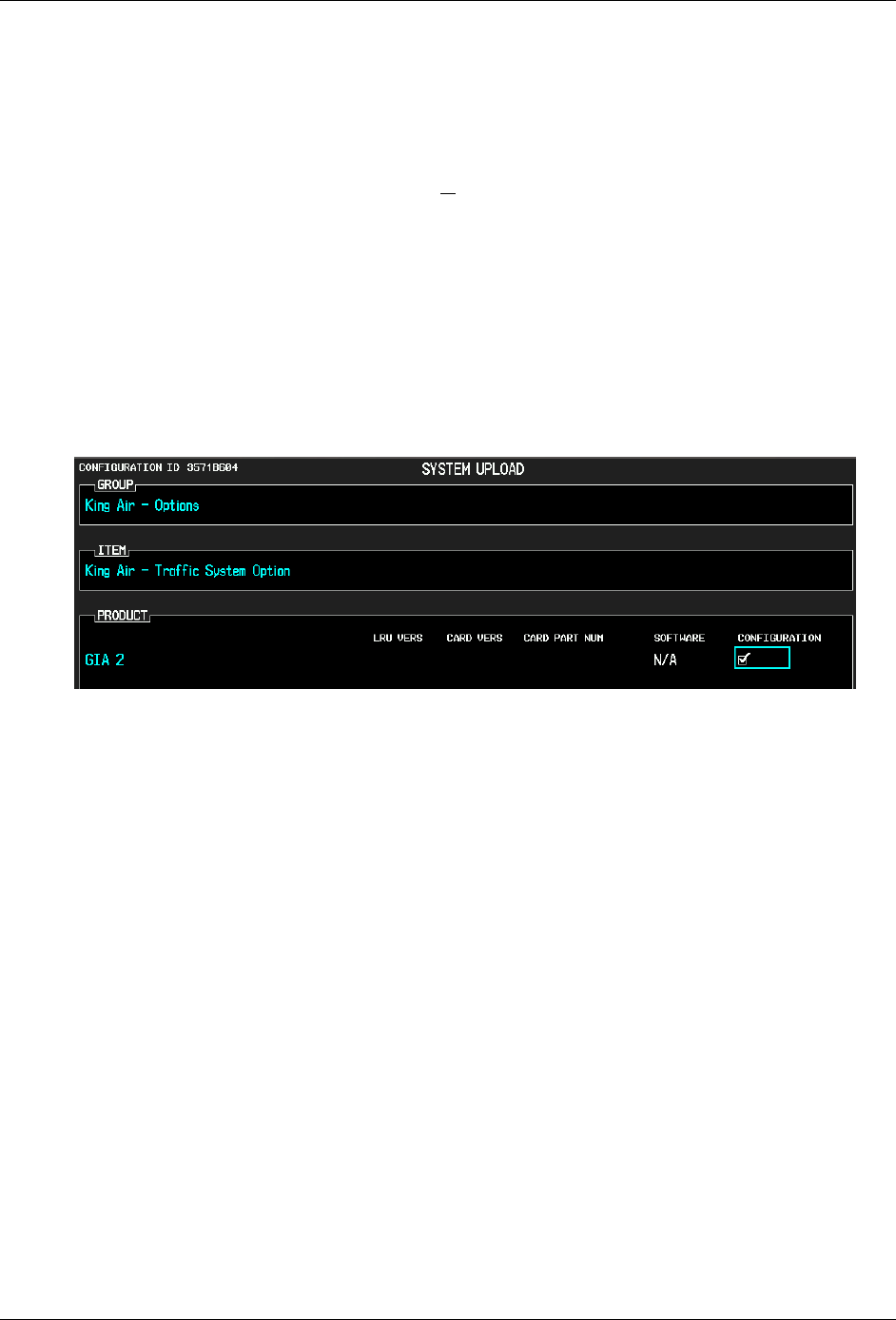

Figure 3-28, Non-Garmin Traffic System Configuration
5. Monitor load progress. Verify software load completes without errors as indicated by the following:
• Green “PASS” in Configuration column for GIA 2.
• “Upload Complete………….COMPLETE” in the summary box.
6. Press ENT key on PFD1 to acknowledge upload complete.
7. Deactivate cursor.
